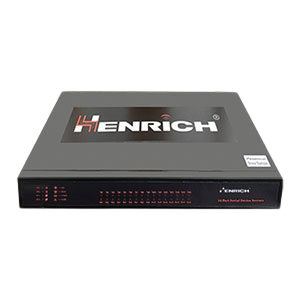

Name: 10/100M TCP/IP to 16-port RS-485/422 Serial Device Server
Brand: Henrich
Availability: OutOfStock

account&orders

Home

10/100M TCP/IP to 16-port RS-485/422 Serial Device Server

Manufacturer Part Number: HESS-T-030

Contact sales for pricing information

UNIX Fixed Tty Mechanism
Metal Housing, Rack Mounted
Working Temperature:-20~70°C
Power Input: AC 220V
Baud Rate:50-460800bps
Protocol: ARP, IP, ICMP, UDP, TCP, PPP, HTTP, TELENT, DNS, DHCP, PAP, CHAP
Provides with Full Signal: RS-422 with TXD+/RXD+/TXD-/RXD-/GND, RS-485 with Data+/Data-
Ethernet Port Supports Built-in 2KV EM Isolation
Serial Ports Support +15KV Anti-static Protection

HESS-T-030 serial device server is a converter that converts asynchronous ports RS-485/422 to TCP/IP. It is an independent intelligent device with CPU, embedded OS, and full TCP/IP protocol. The bid-directional transparent transmission between RS-485/422 and Ethernet enables RS-485/422 serial devices access in Internet immediately.

Hardware
Serial Port Number		16
CPU		32bit 100MHZ
RAM		8M
Serial Port	Baud Rate	50-460800bps
	Check Bit	None,Odd, Even, Mark, Space
	Data Bit	5,6,7,8
	Stop Bit	1, 1.5,2
	Flow Control	RTS/CTS, XON/XOFF
	Connector	RJ45
	Protection	±15KV Anti-static Protection
	Signal	RS-422: TXD+/RXD+/TXD-/RXD-/GND RS-485: Data+/Data-
Ethernet Port	Rate	Auto-10/100M
	Form	RJ45
	Protection	Built-in 2KV EM Isolation
Operating Environment		Storage Temperature: -20 ~ 85℃ Operating Temperature: -20 ~ 70℃ Relative Humidity: 5% ~95% (Non-condensing)
Certification		FCC, CE
Power		AC 220V
Material		Metal Housing
Dimension		19 Inches, 1U Height
Software
Protocol Support		ARP, IP, ICMP, UDP, TCP, PPP, HTTP, TELENT, DNS, DHCP, PAP, CHAP
Virtual COM		Window NT/2000/XP
