9-port Din-rail Unmanaged Ethernet Switch 1

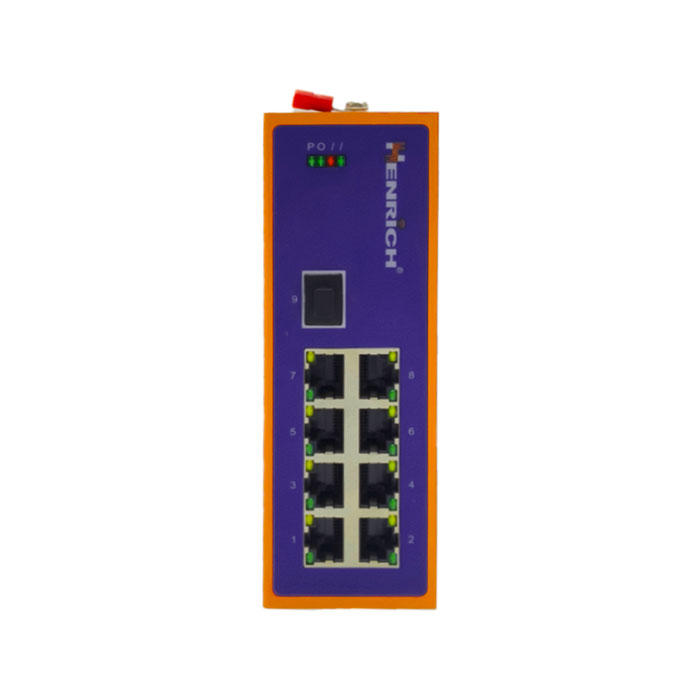

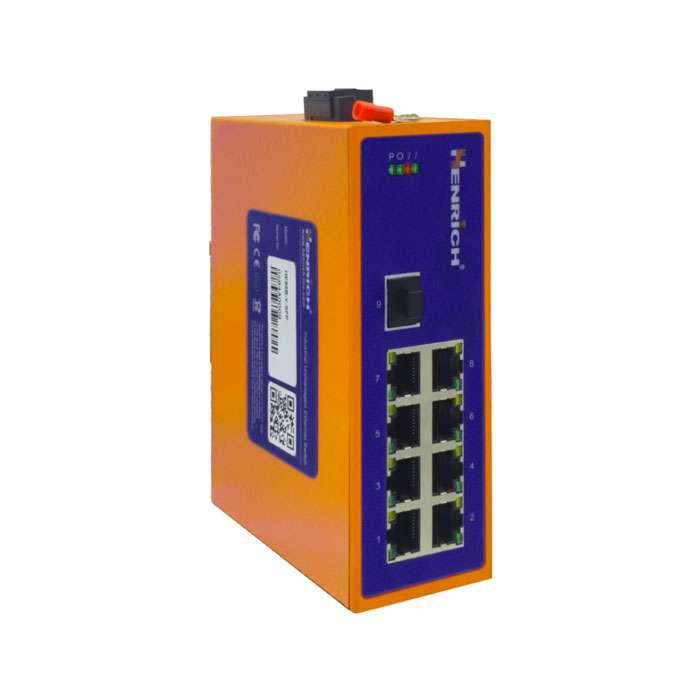

9-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES9B-Y-SFP

Contact sales for pricing information

8×10/100BaseT(X) Port (RJ45 Connector) + 1 × 100BaseFX Port (SFP Connector)
12 ~ 58 VDC Redundant Dual Power Inputs
IP40 Metal Housing, Fan-less Design
High-level ESD: Contact 8KV,Air 15 KV
-10°C to 60°C Working Temperature

The HES9B-Y-SFP series switches are a 100M SFP slot & 8 10/100M self -adapting network ports industry Ethernet fast switch, POE optional. Through the design of air-free cooling circuit design, wide -range working environment temperature, high protection level and other technologies, this series is enhanced with the reliability and security of the industrial network. It can better meet the requirements of rail transit, safe cities, intelligent transportation, outdoor monitoring and other harsh environments.

Ethernet Interface:

10/100/1000BaseT(X) Ports (RJ45 Connector)	8 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
100BaseFX Ports	1 (SFP Connector)
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x

Switch Properties:

Processing Type	Store and forward
MAC Table Size	2K
Packet Buffer Size	512K

Power Parameters:

Input Voltage	12 ~ 58VDC Redundant Dual Power Inputs
Power Consumption	5W MAX
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported

Physical Characteristics:

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.81" × 4.09" × 5.63" (46mm × 104mm × 143mm)
Weight	1.21lb (550g)

Environmental Limits:

Working Temperature	-10℃ to 60℃
Storage Temperature	-40℃ to 70℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part 15 Subpart B Class A, EN 55032 Class A
EMS	EN61000-4-2 Level 4, Contact: 8 kV; Air: 15 kV (ESD) EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 Level 3 (4KV/2KV）8/20us (Surge Protection of Power) EN61000-4-5 Level 3 (4KV/2KV）10/700us (Surge Protection of Ethernet Port) EN61000-4-6 (CS) Level 3 EN61000-4-8 (PMS) Level 3 EN61000-4-16 Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
