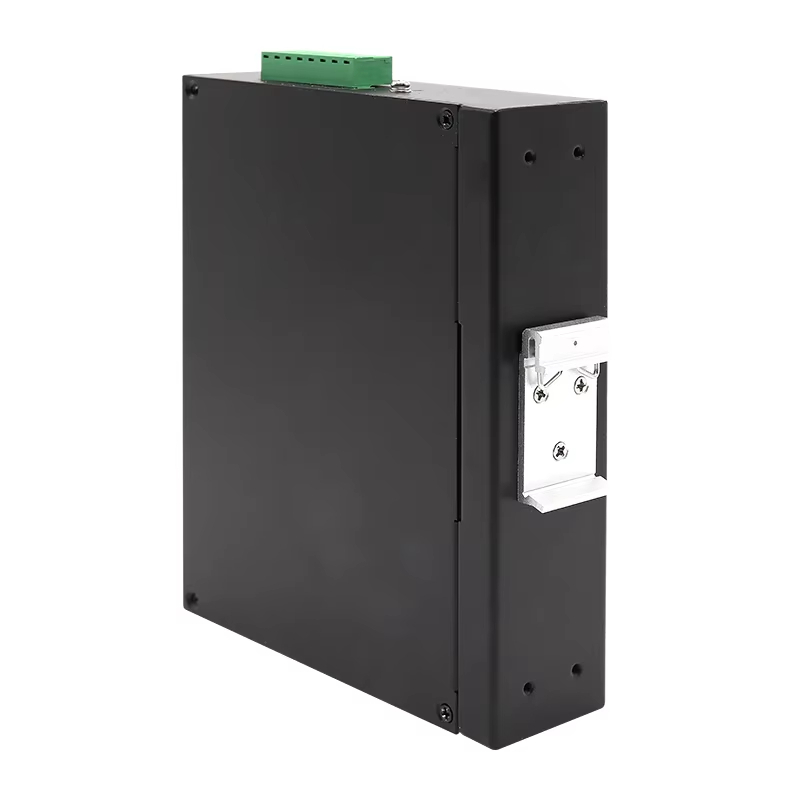

Name: Henrich HES12MA-T-4GSFPB 12-port (8x100Mbps/4x1000Mbps) Full Layer 2 Industrial Managed Ethernet Switch
Brand: Henrich
Price: 199.00 USD
Availability: InStock

account&orders

Home

Henrich HES12MA-T-4GSFPB 12-port (8x100Mbps/4x1000Mbps) Full Layer 2 Industrial Managed Ethernet Switch

Manufacturer Part Number: HES12MA-T-4GSFPB

Brand: Henrich

$ 199.00$ 836.00

8 × 10/100M Copper Ports and 4 x 1000M SFP Slots
Supports IGMP Snooping, IEEE 802.1Q VLAN, QoS, STP/RSTP, and SNMP v1/v2/v3 to ensure a Secure and Stable Network Environment
Supports RMON for enhanced Network Monitoring and proactive Diagnostics
Supports Port Isolation and Access Control Lists (ACL) for enhanced Security
Supports Port Mirroring (SPAN)
Supports Port Speed Limit and Broadcast Storm Suppression
Supports LLDP, Link Flap, UDLD, DDM
Operating Temperature: -40°C to 75°C

See our Shipping Policy for delivery regions and fees

18 Available

HES12MA-T/HES12MB-T series is industrial managed Ethernet switches. It supports 12 ports, with optional 4 Gigabit fiber ports. This series supports port mirroring, VLAN, IGMP, QoS, STP/RSTP, and other management, such as Console, Telnet, Web, SNMP, and relay alarm output. It provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking access.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	8 (Full/Half-duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed)
1000BaseSFP Ports	4
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x

Optical Fiber (1000M)

Mode	Multi-mode	Single-mode
Transmission Distance	2 km	20 km
Center Wavelength	1310nm	1310nm
TX Power	-6~-1 dBm	-9~-3 dBm
FX Power	≤-21 dBm	≤-23 dBm

Ethernet Software Features

Protocols	ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/ MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, UDLD, NTP, RMON, Syslog
Flow Control	IEEE802.3x Flow Control, Backpressure Flow Control

LED Interface

LED Indicators

Power, Network, Run and Alarm Indicators

Power Parameters

Input Voltage	12/24/48 VDC (10.8 ~ 52.8VDC), Redundant Dual Power Inputs
Power Consumption	500 mA @ 24V Max

Switching Performance

Transmission Mode	Store and Forward
MAC Table Size	8 k
Packet Buffer Size	4.1 M
Backplane Bandwidth	24 G
Max. Frame Length	10 kB

Physical Characteristics

IP Rating	IP40
Dimension (W x D x H)	42 x 120 x 150 mm
Weight	1600 g
Installation	DIN-Rail Mounted

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	0% to 95% (No Condensation)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32

Warranty

Warranty Period

5 Years

HES12MA-T-4GSSTB

Din-rail Layer 2 Managed, 8 × 100Mbps Copper Port, 4 × 1000Mbps Fiber Port, Single-mode 20km, ST Interface, Industrial Temperature -40°C to 75°C, Dual Power Supply 10.8~52.8VDC

HES12MA-T-4GSSCB

Din-rail Layer 2 Managed, 8 × 100Mbps Copper Port, 4 × 1000Mbps Fiber Port, Single-mode 20km, SC Interface, Industrial Temperature -40°C to 75°C, Dual Power Supply 10.8~52.8VDC

HES12MA-T-4GSTB

Din-rail Layer 2 Managed, 8 × 100Mbps Copper Port, 4 × 1000Mbps Fiber Port, Multi-mode 2km, ST Interface, Industrial Temperature -40°C to 75°C, Dual Power Supply 10.8~52.8VDC

HES12MA-T-4GSCB

Din-rail Layer 2 Managed, 8 × 100Mbps Copper Port, 4 × 1000Mbps Fiber Port, Multi-mode 2km, SC Interface, Industrial Temperature -40°C to 75°C, Dual Power Supply 10.8~52.8VDC

HES12MA-T-4GSFPB

Din-rail Layer 2 Managed, 8 × 100 Mbps Copper Port, 4 × 1000 Mbps Fiber Port, SFP Interface, Industrial Temperature -40°C to 75°C, Dual Power Supply 10.8 - 52.8 VDC

Manuals ： Predision_Managed_Ethernet_Switch_T-Series_User_Manual_EN.pdf

Datasheet ： Henrich_Switch_HES12MA-T-4GSFPB_DS_EN.pdf

Quick Installation Guide： Henrich_Switch_HES12MA-T-4GSFPB_QIG_EN.pdf

LineCard： Henrich_Line_Card_Industrial_Ethernet.pdf
