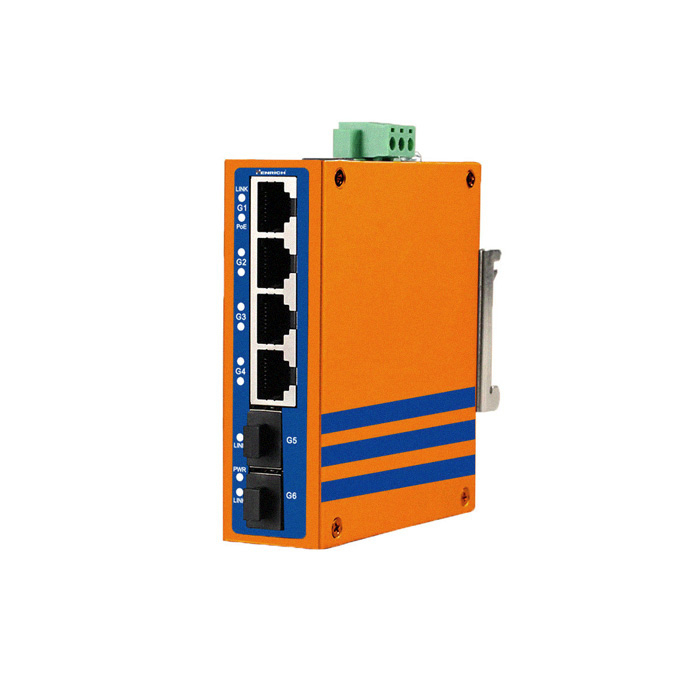

Name: Henrich HES6GB-X-4E-2SFP 6-port (with 2 SFP Ports) Full Gigabit Din-rail Unmanaged PoE Ethernet Switch
Brand: Henrich
Price: 385.00 USD
Availability: OutOfStock

account&orders

Home

Henrich HES6GB-X-4E-2SFP 6-port (with 2 SFP Ports) Full Gigabit Din-rail Unmanaged PoE Ethernet Switch

Manufacturer Part Number: HES6GB-X-4E-2SFP

Brand: Henrich

$ 385.00

4 × 10/100/1000BaseT(X) PoE+ Ports, 2 x 1000BaseSFP Ports
IEEE 802.3af/at PoE Standard, up to 30W Output per PoE+ Port
Operates with 120 Watts Full PoE+ Loading
Supports 9.2KB Jumbo Frames
DC 44-56V Power Supply with Reverse Polarity Protection
Smart PoE Power Supply: power will be supplied to the high priority level port first when the power budget is insufficient and overload operation of the device will be avoided

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: June 25, 2026 (UTC-4)

The HES6GB/6GA-X-4E series switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the HES6GB/6GA-X-4E series switches enable centralization of the power supply and provide up to 30 watts of power per port.
The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x/802.3ab with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

Ethernet Interface

10/100/1000BaseT(X) Port (RJ45 connector)	4 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
1000BaseSFP	2
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	4 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z, IEEE 802.3af/at
PoE Supply Pin	1/2(+) 3/6 (-)
Power Connector	DC Socket or Phoenix Terminal, with Built-in Reverse Polarity Protection

Switch Properties

Processing Type	Store and Forward (Full Wire Speed)
MAC Table Size	2K
Packet Buffer Size	2Mbits
Jumbo Frames	9.2KB

Power Parameters

Input Voltage	DC 44-56V
Operating Voltage	DC 44-56V
Power Budget	Standby: < 5W, Full load: af < 60W, at < 120W
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP30 Design
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.2" × 3.9" × 3.5" (30mm × 98 mm × 88 mm)

Environmental Limits

Working Temperature	-10℃ to 60℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5% to 90% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	Lightning protection: 6KV 8/20us IEC61000-4-2 (ESD) Level 3, IEC61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 3, IEC61000-4-5 (Surge) Level 3, IEC61000-4-6 (Radio Frequency Transmission) Level 3, IEC61000-4-8 (Power Frequency Magnetic Field) Level 3, IEC61000-4-9 (Pulsed Magnet Field) Level 3, IEC61000-4-10 (Damped Oscillation) Level 3, IEC61000-4-12/18 (Shockwave) Level 3, IEC61000-4-16 (Common-mode Transmission) Level 3, IEC61000-6-2 (Common Industrial Standard)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE Mark, Commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS

Warranty

5 years

HES6GB-X-4E-2SFP

Slim Din-rail Unmanaged, 4 x 1,000 Mbps PoE Copper Port, 2 x 1,000 Mbps Fiber Port, SFP Interface, Industrial Temperature -10~60°C, Power Input 44-56 VDC

HES6GA-X-4E-2SFP

Slim Din-rail Unmanaged, 4 x 1000Mbps PoE Copper Port, 2 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40~75°C, Power Input 44-56 VDC

Datasheet ： Henrich_Switch_HES6GB-X-4E-2SFP_DS_EN.pdf

Quick Installation Guide： Henrich_Switch_HES6GB-X-4E-2SFP_QIG_EN.pdf

LineCard： Henrich_Line_Card_Industrial_Ethernet.pdf
