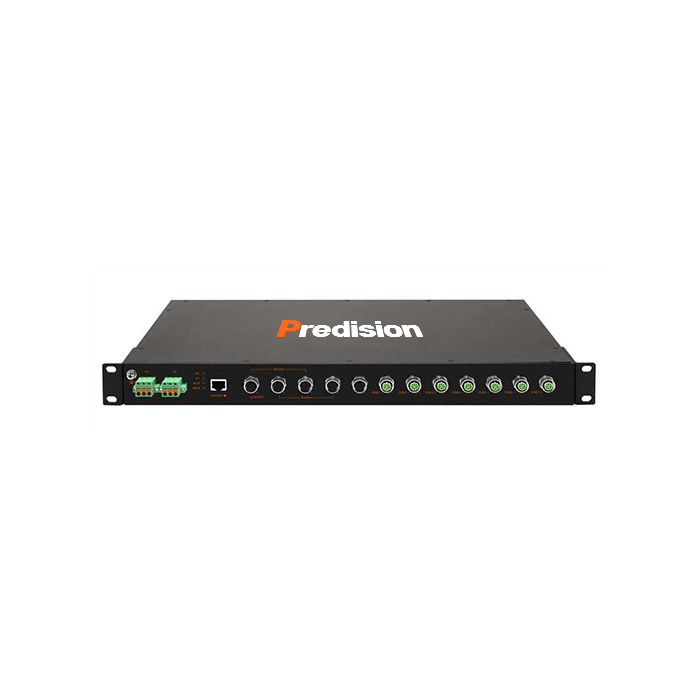

Name: Predision MX8012LMA-T-5G-7E EN50155 12-port Layer 3 Managed Industrial Ethernet Switch
Brand: Predision
Price: 3200.00 USD
Availability: OutOfStock

account&orders

Home

Predision MX8012LMA-T-5G-7E EN50155 12-port Layer 3 Managed Industrial Ethernet Switch

Manufacturer Part Number: MX8012LMA-T-5G-7E

Brand: Predision

$ 3200.00

Supports 7 × 10/100 Mbps M12 PoE Ports + 5 × Gigabit M12 Ports (4 Ports Support BYPASS Function)
Supports IGMP Snooping/MLD Snooping to Filter Multicast Packets
Supports 16K MAC Table Size
QoS Allows Real-time Traffic Classification and Prioritization
Supports STP/RSTP, MSTP Networking Redundancy
Supports SNMPv1/v2v3 to Ensure Network Security Management
Supports Layer 3 Fast Forwarding, and NAT Switching Bandwidth Supports More than 30M
Supports Layer 3 Switching Function (Static Route/RIP/OSPF/VRRP)
Supports Access Control List (ACL) to Enhance Flexibility and Network Management Security
Supports Port Speed Limit\Broadcast Storm Suppression\Multicast Storm Suppression\Unknown Unicast Storm Suppression
Supports Port Mirroring Function for Online Debugging
Supports Power, Port Abnormal Status Relay Output Alarm Function
Supports IP40 Protection, Fan-less, Industrial Grade, Rack-mounted Design

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

MX8012LMA-T-5G-7E series is a 12-port Gigabit Layer 3 managed switch, supporting five M12 Gigabit copper ports and seven M12 100 Mbps PoE ports. It is suitable for being applied in PIS systems where the backbone network is Gigabit aggregation (or configurable Gigabit ring network) Ethernet transmission. The whole switch adopts industrial-grade chips and multi-layer board design and complete interface protection to effectively ensure the reliability. Unique industrial-grade design and technology is suitable for harsh vehicle environment applications.

Ethernet Interface

10/100/1000BaseT(X) M12 Copper Port	5, 8-pin M12 (Female), Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; 4 Ports Support Bypass Function
10/100BaseT(X) M12 PoE Port	7, D-coded, 4-pin M12 (Female), Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive
PoE Supply Pin	1/3(+) 2/4 (-)
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE802.1O, IEEE 802.1D, IEEE 802.1s, EEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1ab, IEEE802.3 af, IEEE 802.3 at
Console Port	Serial Port Debugging (RJ45 interface)

Ethernet Software Features

Management Function	SNMPv1/v2c/V3 Centralized Management, Port mirroring, RMON, QoS, LLDP, DHCP Server, File Management, PoE Management, Port Statistics, Log Management, Static ARP, NTP
Safety Technology	User Privilege Classification, NAT, ACL, 802.1 Authentication, Port Alarm, Storm Suppression, SSH Configuration, Telnet Configuration, Loop Detection, Link Oscillation Protection
Switching Function	VLAN, Port Aggregation, Bandwidth Management, Flow Control, Port Isolation
Routing Technology	VRRP, RIP, OSPF
Unicast and Multicast Technology	Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM
Redundancy Technology	RingOn™, STP/RSTP/MSTP, Loop Detection
Fault Detection	Ping, Tracerroute

LED Interface

LED Indicators

Power Indicator, Network Indicator, PoE Indicator, Alarm Indicator

Power Parameters

Input Voltage	110 VDC (66 ~ 160 VDC)
Connection	3-pin 5.08 mm Pitch Terminal Block
PoE Port Power Supply	Max. 30W per Port
Power Budget	15 W (Not Including PoE Power Supply), 90W (Including PoE Power Supply)
Reverse Polarity Protection	Supported
Overload Current Protection	Supported

Switching Performance

Transmission Mode	Store and Forward
MAC Table Size	16 K
Packet Buffer Size	12 Mb
Backplane Bandwidth	56 G
Max. Frame Length	9216 B
Host Unicast Routing	1024 (IPv4), 512 (IPv6)
Segment Unicast Routing	512 (IPv4/IPv6)

Physical Characteristics

IP Rating	IP40
Dimension (W x D x H)	440 x 44 x 200 mm
Weight	4000 g
Installation	Rack Mounted

Environmental Limits

Operating Temperature	-40℃ ~ 75℃
Storage Temperature	-40℃ ~ 85℃
Relative Humidity	5% ~ 95% (No Condensation)

Standards and Certifications

Rail Traffic	EN50155
EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2(ESD) Level 3, EN61000-4-3(RS) Level 3, EN61000-4-4(EFT) Level 3, EN61000-4-5(Surge) Level 3, EN61000-4-6(CS) Level 3, EN61000-4-8 (PFMF) Level 3
Vibration	IEC 60068-2-6/IEC61373
Shock	IEC 60068-2-27/IEC61373
Freefall	IEC 60068-2-32

Warranty

5 Years

MX8012LMA-T-5G-7E

Rack-mount Layer 3 Managed, 7 × 100 Mbps PoE Port, 5 × 1000 Mbps Copper Port(4 Ports Support Bypass Function), Industrial Temperature -40°C to 75°C, Power Supply 110 VDC(66~160 VDC)

Datasheet ： Predision_Switch_MX8012LMA-T-5G-7E_DS_EN.pdf

LineCard： Predision_Line_Card_Industrial_Ethernet.pdf
