Predision HESS-T-002 10/100M to 1-port RS-232/485/422 Serial Device Server

Manufacturer Part Number: HESS-T-002

Brand: Predision

$ 39.95$ 165.00

Operating Temperature: -40°C to 85°C
±6 kV ESD Protection for Serial Port, 1.5 kVAC Isolation Protection for Ethernet Port
Supports Heartbeat Package and Registration Package
Supports multiple Operating Modes: VCOM, MCP, TCP Server, TCP Client, UDP, Remote Pair Mode, Modbus TCP Server, Modbus TCP Client, MQTT
Supports Modbus Multi-master and Multi-slave Connections across four Operating Modes: RTU Master/Slave and TCP Master/Slave
Supports Web Configuration and VistaComs Host Computer Tool Configuration
Supports Web Firmware Upgrade

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

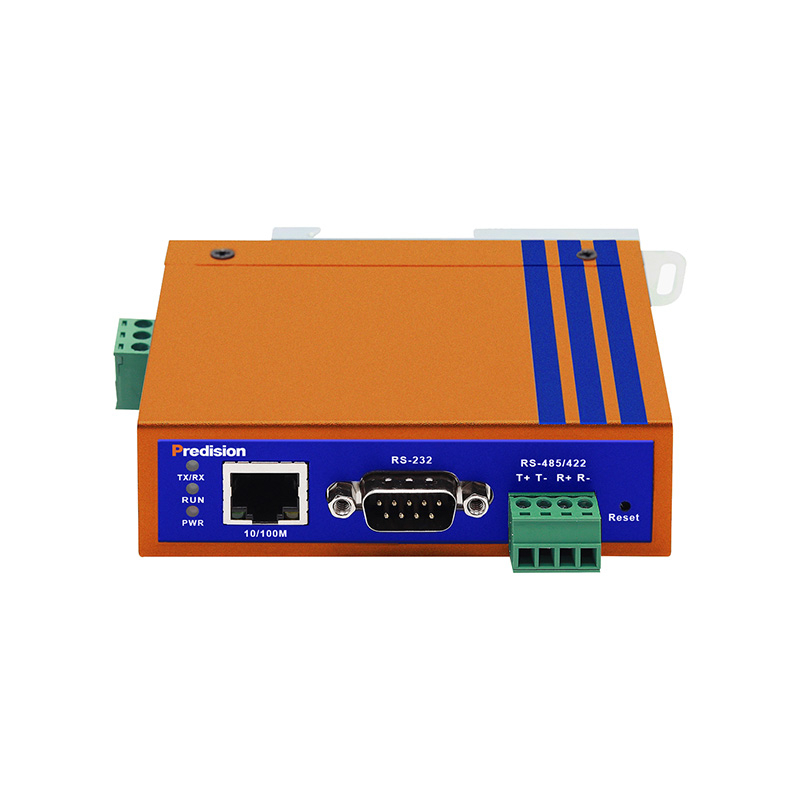

The HESS-T-002 is a single-port serial device server featuring a 3-in-1 RS-232/485/422 interface and one 10/100Base-T(x) Ethernet port. It provides a robust solution for centralizing the management of distributed serial devices and host systems over a standard network.

This device enables bi-directional transparent data transmission between serial and Ethernet interfaces, providing legacy serial equipment with instant networking capabilities. Additionally, it functions as a versatile Modbus Gateway, supporting seamless conversion between Modbus RTU and Modbus TCP. It supports both Storage-type (Autonomous) and Non-storage (Direct) modes to optimize data polling and system response times.

Interface

10/100/BaseT(X) Port	1 × 10/100M (RJ45 Connector), with built-in 1.5 kV Isolation Protection
Serial Port	1 × RS-232 Port (DB9 Male Connector) 1 × RS-485/422 Port (4-pin 3.81 Terminal Block) ±6 kV ESD Protection
LED Indicators	PWR, RUN, TX/RX
Baud Rate	300 - 921,600 bps
Data Bit	5, 6, 7, 8
Stop Bit	1, 2
Parity	None, Odd, Even

Software Features

Supported Protocols	ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, and Modbus
Operating Mode	VCOM, MCP, TCP Server, TCP Client, UDP Client, Modbus TCP Server, and Modbus TCP Client

Power Parameters

Power Connector	1 × DC Connector 1 × 3-pin 5.08 Terminal Block, with built-in Reverse Polarity Protection
Input Voltage	12 - 48 VDC
Power Consumption	1.2 W
Function Buttons	1 × Factory Reset Button: RESET

Physical Characteristics

Housing	IP30-rated Metal Enclosure

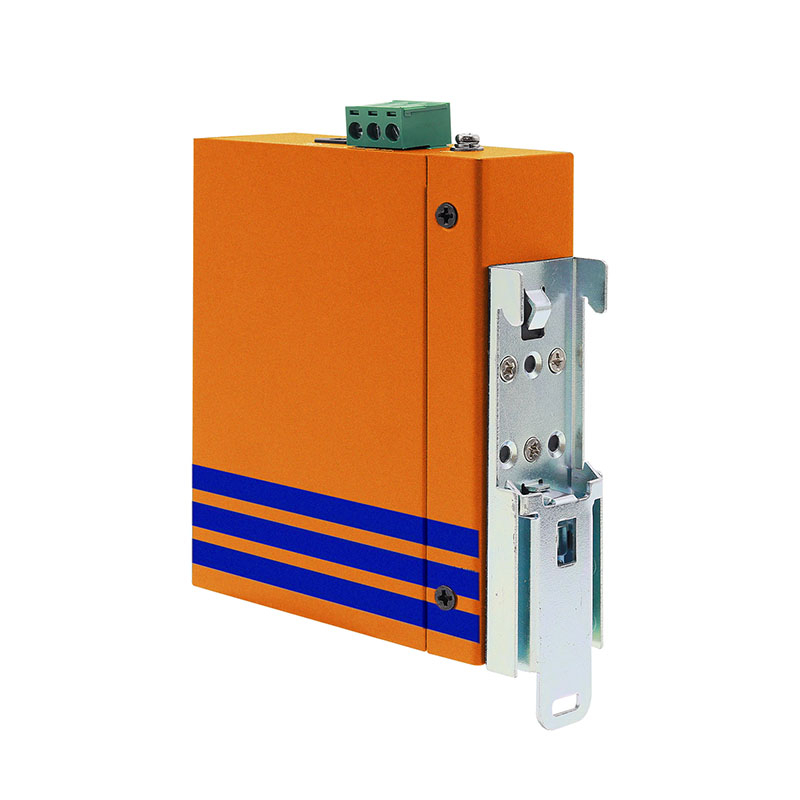

Installation	Din-rail Mounted
Dimensions (W × H × D)	1.18" × 3.94" × 3.15" (30 mm × 100 mm × 80 mm)
Net Weight	0.55 lb (248 g)

Environmental Limits

Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Ambient Relative Humidity	5% - 95% (No Condensation)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	EN61000-4-2(ESD) Contact 6kV, Air 8kV EN61000-4-3(RS) 3V/m EN61000-4-4(EFT) Power 2kV, Signal 1kV EN61000-4-5(Surge) Power 2kV, Signal 1kV EN61000-4-6(CS) 3V/m

Warranty

5 years

HESS-T-002

1 × RS-232 Port + 1 × RS-485/422 Port + 1 × 10/100M Port, Din-rail, Input Voltage: 12 - 48 VDC, IP30-rated Metal Housing, Baud Rate: 300 - 921,600 bps, ±6 kV ESD Protection for Serial Port, 1.5 kVAC Isolation Protection for Ethernet Port, Operating Temperature: -40°C to 85°C.

Manuals ： Predision_Serial_Server_HESS-T-002_UM_EN.pdf

Datasheet ： Predision_Serial_Server_HESS-T-002_DS_EN.pdf

Quick Installation Guide： Predision_Serial_Server_HESS-T-002_QIG_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
