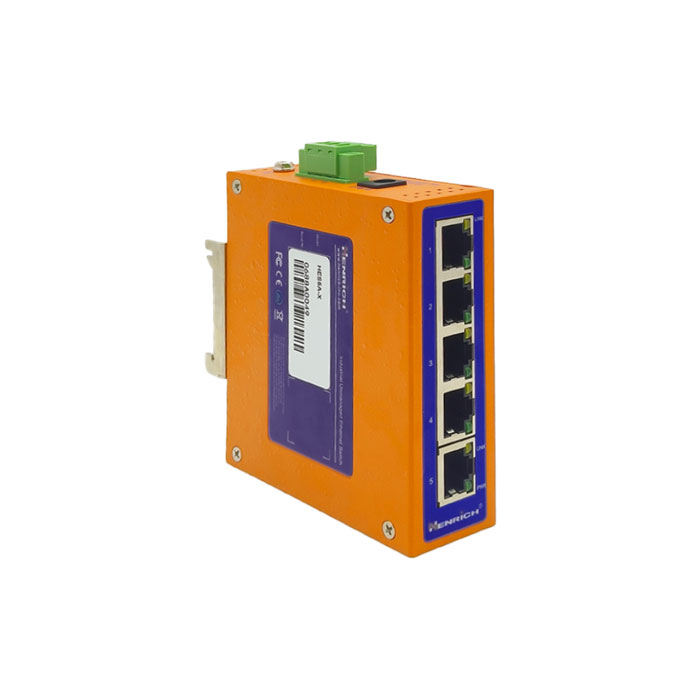

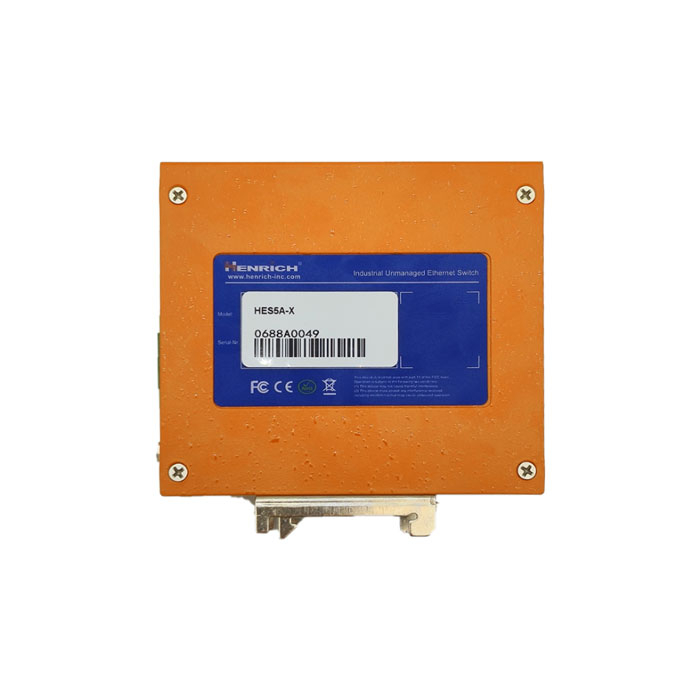

Henrich HES5A-X 5-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES5A-X

Brand: Henrich

$ 49.99$ 99.95

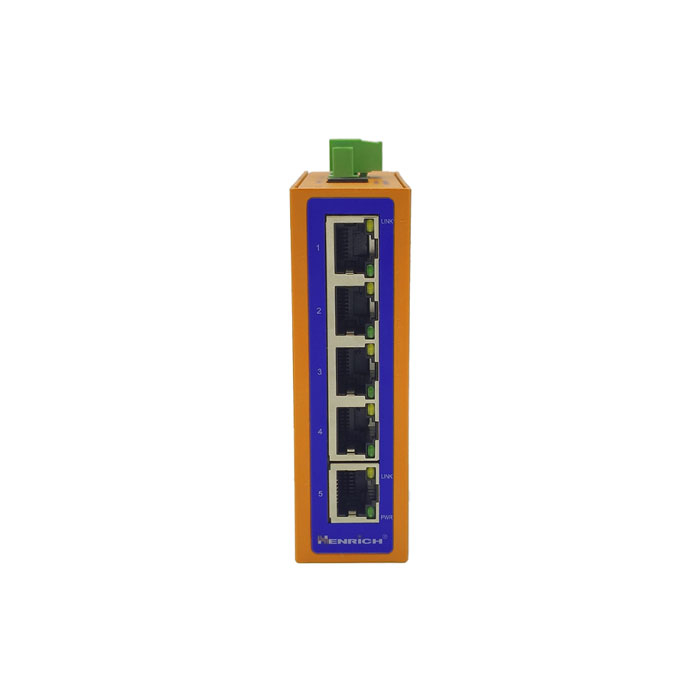

5 × 10/100BaseT(X) Port (RJ45 Connector)
DC 12 - 48V with Reverse Polarity Protection
IP30 Metal Housing, Fanless Design
Lightning Protection: 6 KV 8/20 us
Operating Temperature: -40°C to 75°C

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: June 20, 2026 (UTC-4)

The HES5A-X Series of industrial Ethernet switches is a line of entry-level, 5-port industrial Ethernet switches that supports IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x with 10/100M, full/half duplex, auto-adaptive RJ45 ports. The switches in this series are rated to operate at temperatures ranging from -40°C to 75°C. The fanless design, wide operating temperature range, and high-level ESD protection provide high-performance resistance to extreme temperatures and lightning, ensuring the reliability and safety of the industrial network.

Ethernet Interface

PoE Ports (10/100BaseT(X), RJ45 connector)	5 Full/Half-duplex Mode; Auto MDl/MDI-X Adaptive; Auto Negotiation Speed
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x

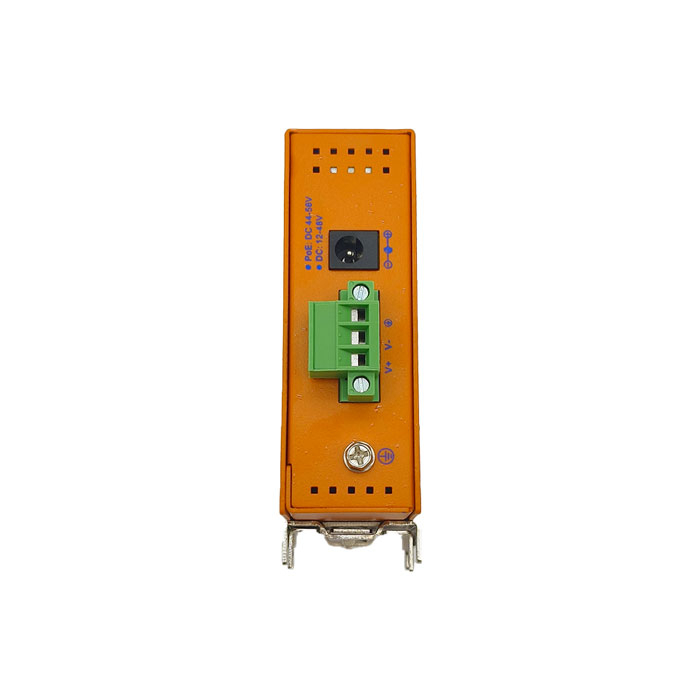

Power Connector	DC Socket or Phoenix Terminal, with Built-in Reverse Polarity Protection

Switch Properties

Processing Type	Store and Forward (Full Wire Speed)
MAC Table Size	2 k
Packet Buffer Size	512 k

Power Parameters

Input Voltage	DC 12 - 48 V
Operating Voltage	DC 12 - 48 V
Power Budget	Standby < 4W, Full load < 5W
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP30 Design
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.2" × 3.9" × 3.5" (30mm × 98 mm × 88 mm)

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	Lightning protection: 6KV 8/20us IEC61000-4-2 (ESD) Level 3, IEC61000-4-3 (RS) Level 3, IEC61000-4-4 (EFT) Level 3, IEC61000-4-5 (Surge) Level 3, IEC61000-4-6 (Radio Frequency Transmission) Level 3, IEC61000-4-8 (Power Frequency Magnetic Field) Level 3, IEC61000-4-9 (Pulsed Magnet Field) Level 3, IEC61000-4-10 (Damped Oscillation) Level 3, IEC61000-4-12/18 (Shockwave) Level 3, IEC61000-4-16 (Common-mode Transmission) Level 3, IEC61000-6-2 (Common Industrial Standard)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Certification	CE Mark, Commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
