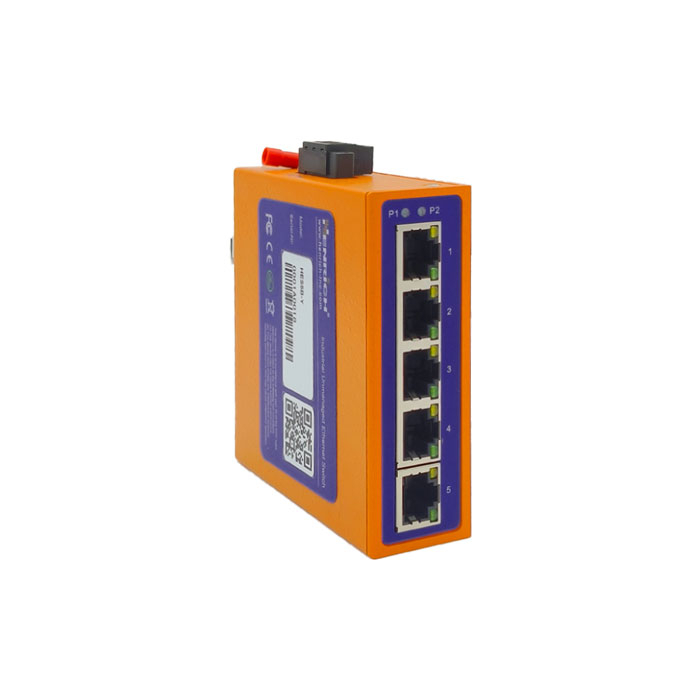

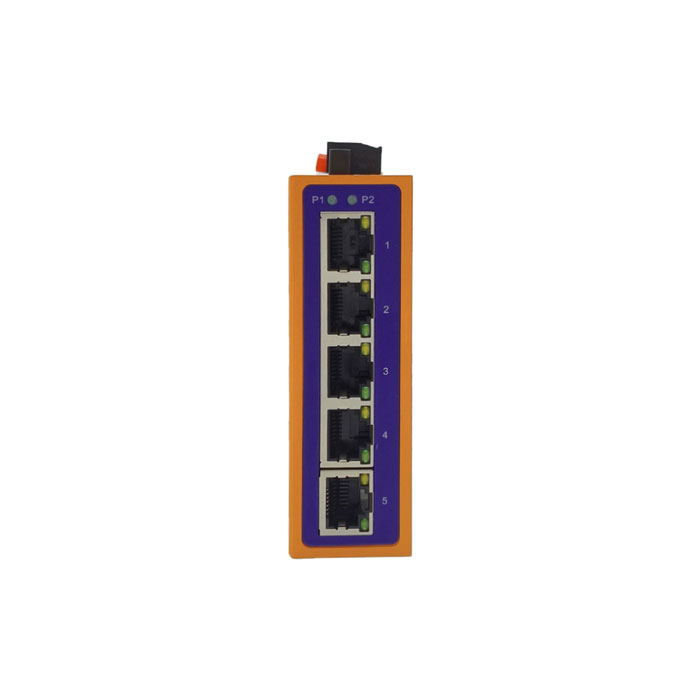

Henrich HES5B-Y 5-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES5B-Y

Brand: Henrich

$ 87.00

5 × 10/100BaseT(X) Port (RJ45 connector)
12 ~ 58 VDC Redundant Dual Power Inputs
IP40 Metal Housing, Fan-less Design
High-level ESD: Contact: 8 kV, Air: 15 kV
-10°C to 60°C Operating Temperature

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

The HES5B-Y Series of industrial Ethernet switches are entry-level industrial 5 ports Ethernet switches that support IEEE802.3u, IEEE802.3x, IEEE802.3z with 10/100M, full/half duplex, auto-adaptive RJ45 ports. This series switches is rated to operate at temperatures ranging from -10°C to 60°C. The fanless design, wide operating temperature, high-level ESD provide the products with high performance of resistance to high and low temperature, lightning protection and reliability and safety of industrial network.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	5 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x

Switch Properties

Processing Type	Store and forward
MAC Table Size	2k
Packet Buffer Size	768 Kbits

Power Parameters

Input Voltage	12 ~ 58 VDC Redundant Dual Power Inputs
Power Consumption	< 5W
Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating
Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.22" × 3.74" × 3.58" （31mm ×95mm × 91mm）
Weight	0.66 lb (300g)

Environmental Limits

Working Temperature	-10℃ ~ 60℃
Storage Temperature	-10℃ ~ 60℃
Relative Humidity	10% to 90% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 4, Contact: 8kV; Air: 15kV EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3, 4KV/2KV, 8/20us (Surge Protection of Power) EN61000-4-5 (Surge) Level 3, 4KV/2KV, 10/700us (Surge Protection of Ethernet Port) EN61000-4-6 (CS) Level 3 EN61000-4-8 (PMS) Level 3 EN61000-4-16 Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty

5 Years

HES5B-Y-SST

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC

HES5B-Y-SSC

Din-rail Unmanaged, 4 x 100 Mbps Copper Port, 1 x 100 Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC

HES5B-Y-ST

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC

HES5B-Y-SC

Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2KM, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC

HES8B-Y

Entry-level Din-rail Unmanaged, 8 x 100Mbps Copper Port, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC

HES5B-Y

Entry-level Din-rail Unmanaged, 5 x 100Mbps Copper Port, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC
