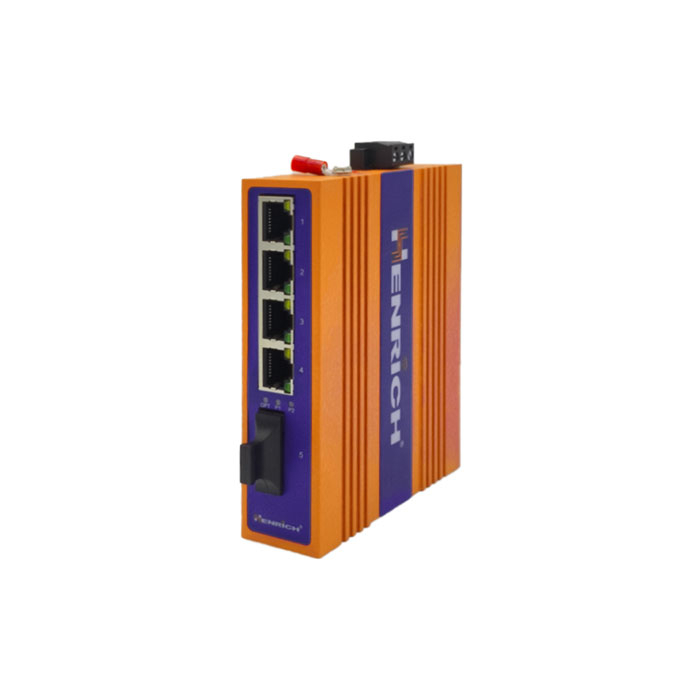

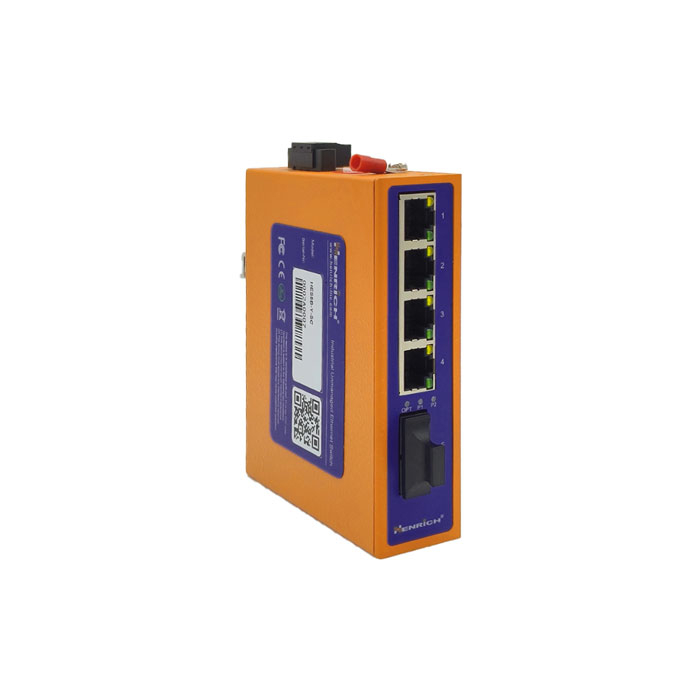

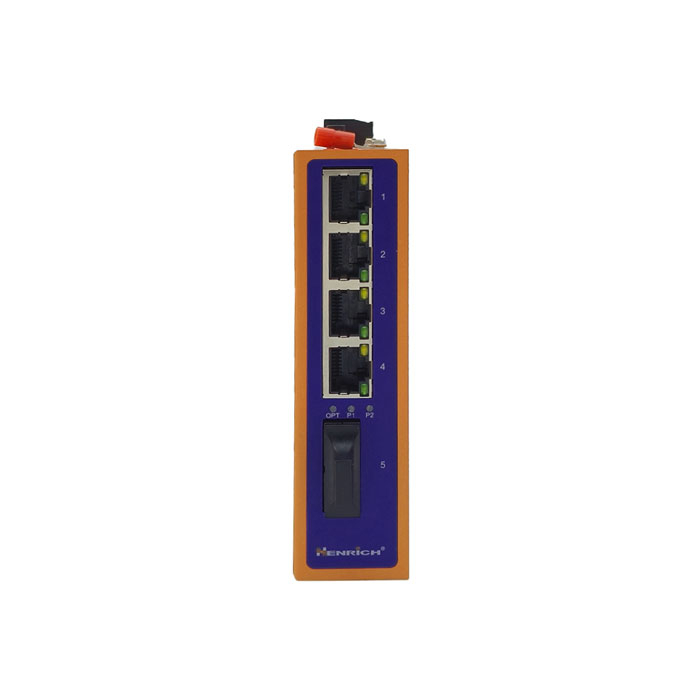

Henrich HES5B-Y-SC 5-port Din-rail Unmanaged Ethernet Switch
Manufacturer Part Number: HES5B-Y-SC
Brand: Henrich
$ 186.00
- 4 × 10/100BaseT(X) Port (RJ45 Connector)
- 1 × 100BaseFX Port (Multi-mode, SC Connector)
- DIP Switches for Enabling or Disabling Broadcast Storm Protection and Port Isolation
- 12 ~ 58 VDC Redundant Dual Power Inputs
- IP40 Metal Housing, Fan-less Design
- High-level ESD: Contact: 8 kV, Air: 15 kV
- -10°C to 60°C Operating Temperature
See our Shipping Policy for delivery regions and fees
6 Available
The HES5B-Y-XX series, 4 copper port + 1 fiber port industrial Ethernet switches, support IEEE802.3u, IEEE802.3x with 10/100BaseT(X) & 100BaseFX, full/half duplex, MDI/MDI-X auto-sensing. This series switches are rated to operate at temperatures ranging from -10°C to 60°C. The fanless design, wide operating temperature, high-level ESD provide the products with high performance of resistance to high and low temperature, lightening protection and reliability and safety of industrial network. In addition, the HES5B-Y-XX switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 Connector) | 4 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed |
| 100BaseFX Ports | 1 (Multi-mode SC Connector) |
| Standards | IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x |
Optical Fiber
| Mode | Multi-mode | Single-mode |
| Transmission Distance | 2km | 20km |
| Center Wavelength | 1310 nm | 1310 nm |
| TX Power | -3 to -18 dBm | ≥-13 dBm |
| RX Power | ≤-34 dBm | ≤-34 dBm |
| Transmission Rate | 100 Mbps | 100 Mbps |
Switch Properties
| Processing Type | Store and forward |
| MAC Table Size | 2k |
| Packet Buffer Size | 768 Kbits |
Power Parameters
| Input Voltage | 12 ~ 58VDC Redundant Dual Power Inputs |
| Power Consumption | < 5W |
| Power Connector Type | Phoenix Terminal |
| Reverse Polarity Protection | Supported |
Physical Characteristics
| Case | Metal Enclosure, IP40 Rating |
| Installation | Din-rail Mounting |
| Dimensions (Width × Height × Depth) | 1.22" × 4.65" × 3.58" （31mm ×118mm × 91mm） |
| Weight | 0.82lb (360g) |
Environmental Limits
| Working Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -10℃ ~ 60℃ |
| Relative Humidity | 10% to 90% (No Condensation) |
Industrial Standard
| EMI | FCC Part15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2 (ESD) Level 4, Contact: 8kV; Air: 15kV EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3, 4KV/2KV, 8/20us (Surge Protection of Power) EN61000-4-5 (Surge) Level 3, 4KV/2KV, 10/700us (Surge Protection of Ethernet Port) EN61000-4-6 (CS) Level 3 EN61000-4-8 (PMS) Level 3 EN61000-4-16 Level 3 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Warranty
| Warranty | 5 Years |
Entry-level Din-rail Unmanaged, 5 x 100Mbps Copper Port, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC
Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2KM, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC
Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Multi-mode 2KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC
Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, SFP Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC
Din-rail Unmanaged, 4 x 100 Mbps Copper Port, 1 x 100 Mbps Fiber Port, Single-mode 20KM, SC Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC
Din-rail Unmanaged, 4 x 100Mbps Copper Port, 1 x 100Mbps Fiber Port, Single-mode 20KM, ST Interface, Industrial Temperature -10 ~ 60°C, Power Supply 12~58 VDC
Entry-level Din-rail Unmanaged, 8 x 100Mbps Copper Port, Industrial Temperature -10 ~ 60°C, Power Supply 12 ~ 58 VDC
