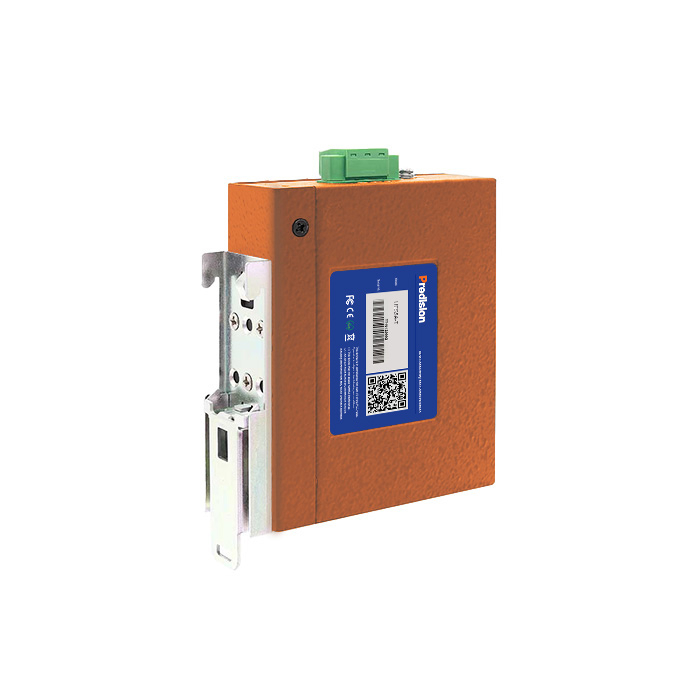

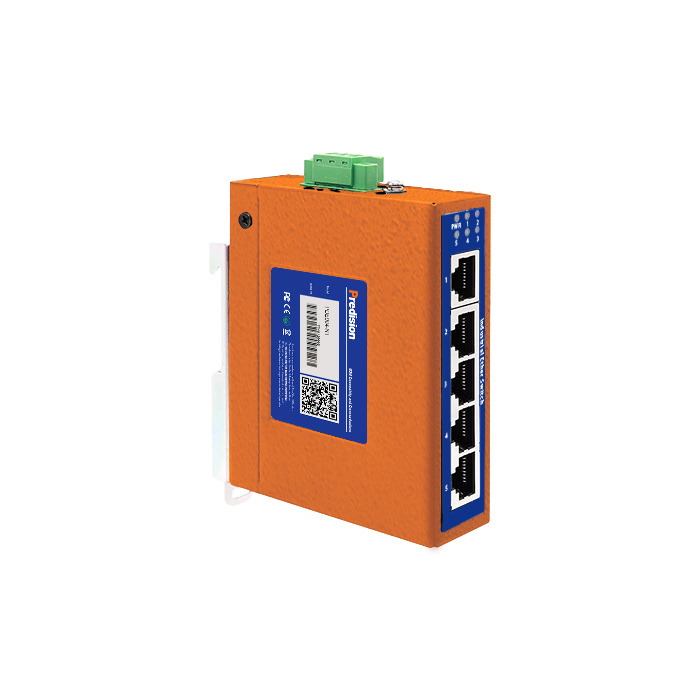

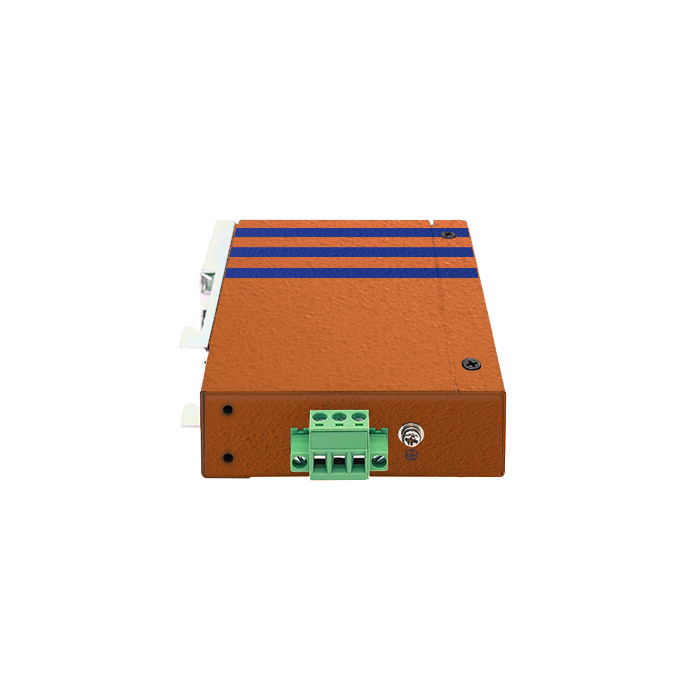

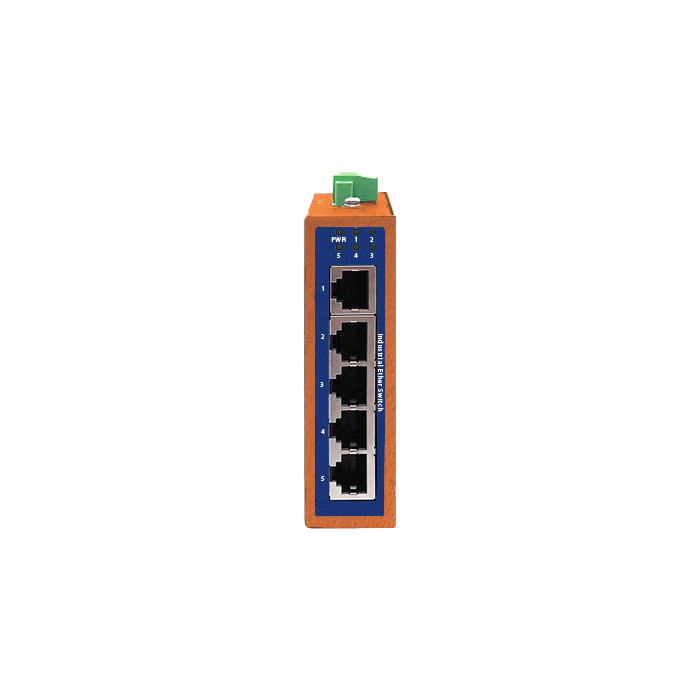

Predision HES5A-T 5-port 100M Unmanaged Industrial Ethernet Switch
Manufacturer Part Number: HES5A-T
Brand: Predision
$ 69.99$ 115.00
- 5 × 10/100BaseT(X) Port (RJ45 Connector)
- DC 9 ~ 60V Reverse Polarity Protection & Overload Protection
- IP40 Metal Housing, Fan-less Design
- -40°C to 75°C Working Temperature
- EMC LEVEL 4
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HES5A-T Series of industrial Ethernet switches are entry-level industrial 5 ports Ethernet switches that support IEEE802.3i, IEEE802.3u, IEEE802.3x with 10/100M, full/half duplex, auto-adaptive RJ45 ports. This series switches is rated to operate at temperatures ranging from -40°C to 75°C. EMC Level 4, fanless design, wide operating temperature, high-level ESD provide the products with high performance of resistance to high and low temperature, lightning protection and reliability and safety of industrial network.
| 10/100BaseT(X) Port (RJ45 Connector) | 5 Full/Half Duplex Mode; Auto MDl/MDI-X Adaptive; Auto Negotiation Speed |
| Standards | IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x |
| Processing Type | Store and Forward |
| MAC Table Size | 1 K |
| Packet Buffer Size | 1 G |
| Input Voltage | DC 9 ~ 60 V |
| Operating Voltage | DC 9 ~ 60 V |
| Power Budget | Full Load 100 mA/ 24 V |
| Isolation | Insulation Resistance: 500 VDC, Insulation Strength: 500 VAC |
| Reverse Polarity Protection | Supported |
| Case | Metal Enclosure, IP40 Design |
| Dimensions (Width × Height × Depth) | 3.94" × 3.15" × 1.08" (100 mm × 80 mm × 27.5 mm) |
| Installation | DIN-rail Mounting |
| Working Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Ambient Relative Humidity | 5% to 95% (Non-condensing) |
| EMI | FCC Part15, Subpart B Class A, EN55022 Class A |
| EMS | IEC(EN)61000-4-2 (ESD): Contact: ±8kV; Air: ±15kV IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4 (EFT): Power:±4kV; Signal: ±2kV IEC(EN)61000-4-5 (Surge): Power: Common Mode ±2kV, Differential Mode ±1kV; Signal: Common Mode ±4kV, Differential Mode ±2kV IEC(EN)61000-4-6 (CS) IEC(EN)61000-4-8 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Warranty Period | 5 Years |
EMC Level 4, Unmanaged, 5 x 100Mbps Copper Port, Industrial Temperature -40 ~ 75 °C, Power Input 9 ~ 60VDC
Din-rail Unmanaged, 5 x 100 Mbps Copper Port, Industrial Temperature -40°C to 75°C, Power Input 12 - 48 VDC
Din-rail Unmanaged, 5 x 100Mbps Copper Port, Industrial Temperature -40～75°C, Power Supply 12~52 VDC

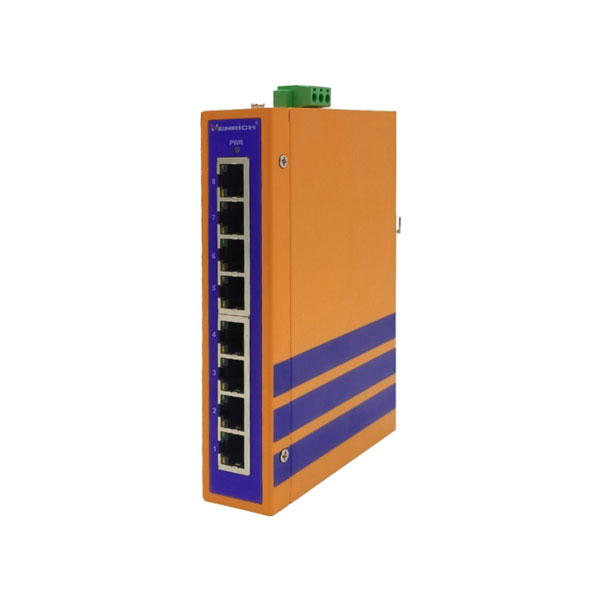

Din-rail Unmanaged, 8 x 100 Mbps Copper Port, Industrial Temperature -40°C to 75°C, Power Supply 12/24/48 VDC (10.8 - 52.8 VDC)
