Predision HESC-T-006 RS-232 Extender
Manufacturer Part Number: HESC-T-006
Brand: Predision
$ 96.00
- RS-232 Transmission Distance extended to 12 km
- Operating Temperature: -40°C to 85°C
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- Baud Rate: 300 - 57,600 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)

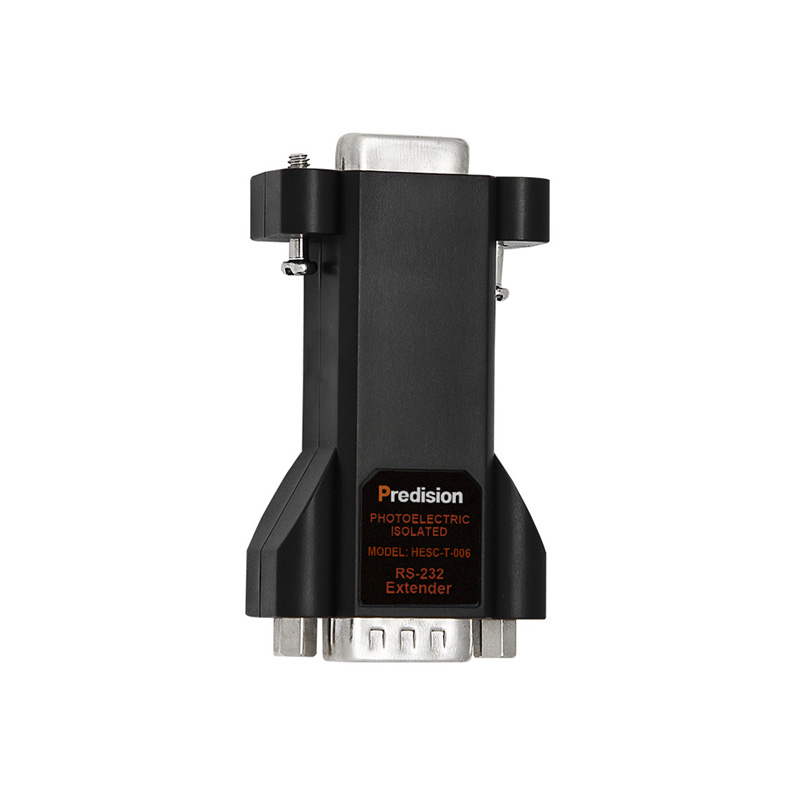

The HESC-T-006 is a long-distance RS-232 extender featuring photoelectric isolation. It is designed to extend the communication range between two asynchronous RS-232 devices up to 12 km. The HESC-T-006 features a compact, 'mini' form factor and has no specific requirements for wiring type. Additionally, the device is entirely port-powered, eliminating the need for an external power supply.
The HESC-T-006 is widely deployed in point-to-point RS-232 communications, host-to-terminal connections, RS-232 remote control systems, billing terminals for program-controlled switches, and satellite receiver interfaces.
| Standard | EIA RS-232C, CCITT V.24 Asynchronous |
| Connector | DB9 Female (RS-232C side); DB9 Male (Long-distance transmission side) |
| Transmission Mode | Asynchronous Full-duplex or Simplex |
| Transmission Medium | Dedicated 4-core Copper Wiring |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous) |
| Baud Rate | 300 - 57,600 bps |
| Transmission Distance | 12 km: 24 AWG Cable@9,600 bps 1 km: 24 AWG Cable@38,400 bps 100 m: 24 AWG Cable@57,600 bps |
| Dimension | 62 x 34 x 18 mm |
| Weight | 30g |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5 - 95% |
RS-232 Extender with Optical Isolation, Baud Rate: 300 - 57,600 bps, Power: RS-232 Port-Powered, Transmission Distance: 12 km, Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), Operating Temperature: -40°C to 85°C.
RS-232 5-wire Serial Extender (Used in Pairs), Baud Rate: 300 - 115,200 bps, Power: 9-24 VDC, Transmission Distance: 1.2 km, Operating Temperature: -25°C to 70°C.
RS-232 7-wire Serial Extender (Used in Pairs), Baud Rate: 300 - 115,200 bps, Power: 9-24 VDC, Transmission Distance: 1.2 km, Operating Temperature: -25°C to 70°C.
