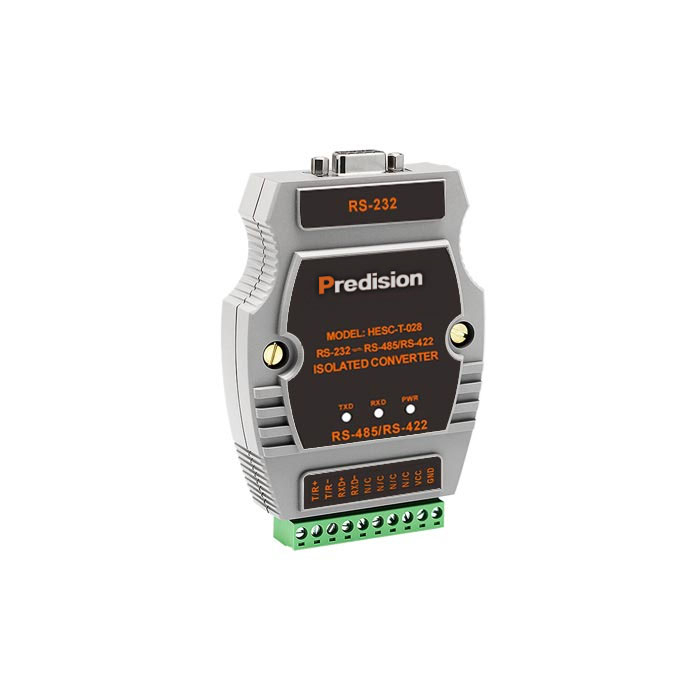

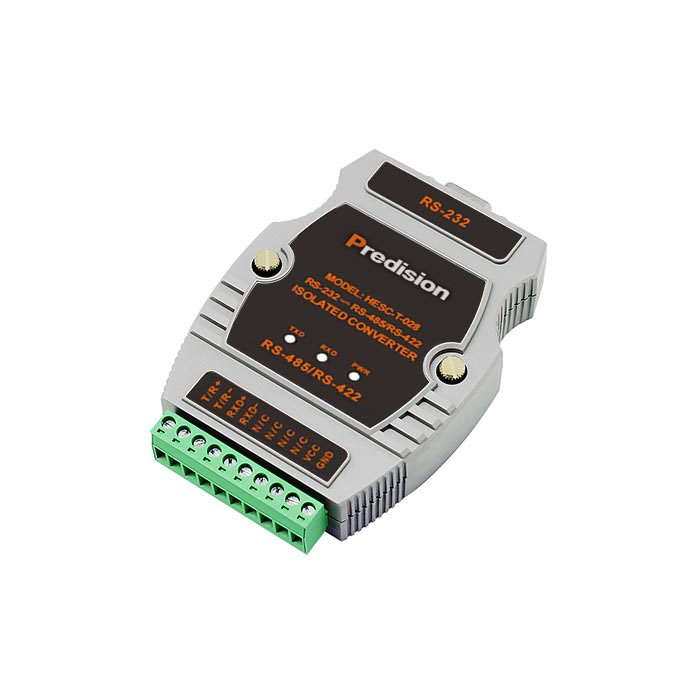

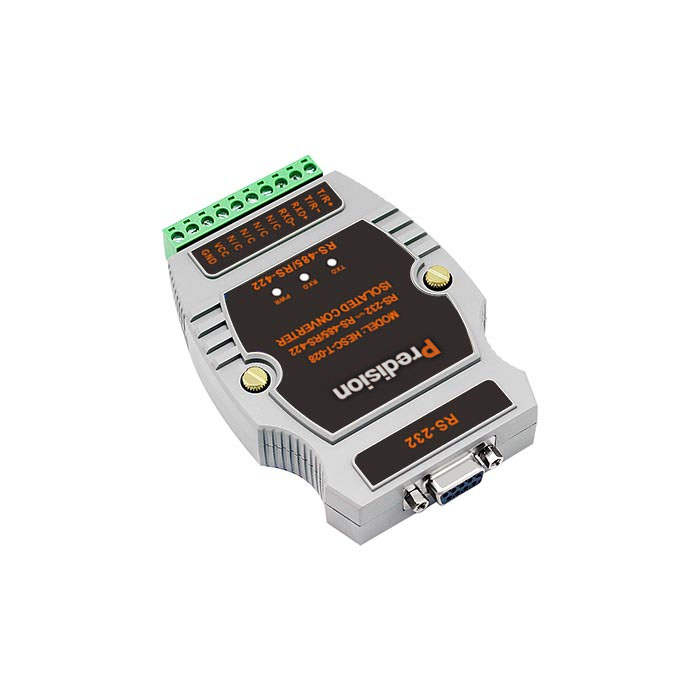

Predision HESC-T-028 Photoelectric Isolated RS-232 to RS-485/422 Converter
Manufacturer Part Number: HESC-T-028
Brand: Predision
$ 139.00
- Operating Temperature: -40°C to 85°C
- ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- Supports Connection of up to 128 RS-485 or RS-422 Devices
See our Shipping Policy for delivery regions and fees
10 Available
The HESC-T-028 is an industrial-grade converter featuring photoelectric isolation. It is fully compliant with RS-232C, RS-485, and RS-422 standards, enabling the conversion of single-ended RS-232 signals into balanced differential RS-485 or RS-422 signals. The integrated photoelectric isolator provides an isolation voltage of up to 2,500 Vrms, while advanced Transient Voltage Suppressors (TVS) protect the RS-485/RS-422 interfaces against electrical spikes.
The converter features zero-delay automatic transceiver switching and a unique I/O circuit that manages data flow direction without the need for handshake signals (such as RTS or DTR). It eliminates the need for jumper settings when switching between full-duplex (RS-422) and half-duplex (RS-485) modes, ensuring a true plug-and-play experience. These features make the HESC-T-028 compatible with all existing communication software and hardware, allowing for a seamless transition from RS-232-based systems without requiring software modifications.
The HESC-T-028 serial converter provides reliable connectivity for both point-to-point and point-to-multipoint configurations. In multipoint mode, the converter supports up to 128 RS-485 or RS-422 devices, with data transfer rates ranging from 300 to 115,200 bps.
| Standard | EIA/TIA RS-232C, RS-485/422 |
| Connector | DB9 Female Connector (RS-232), 10-pin Terminal Block (RS-485/422) |
| Interface Protection | ±15 kV ESD Protection (RS-232) and 600 W Lighting and Surge Protection per wire (RS-485/422) |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous) |
| Operating Mode | Asynchronous Half-duplex or Full-duplex |
| Node Support | Supports Connection of up to 128 RS-485 or RS-422 Devices in Point-to-multipoint Mode |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD) |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Baud Rate | 300 - 115,200 bps |
| Dimension | 117 × 80 × 25 mm |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Transmission Distance | 5,000m (at 9,600 bps) |
