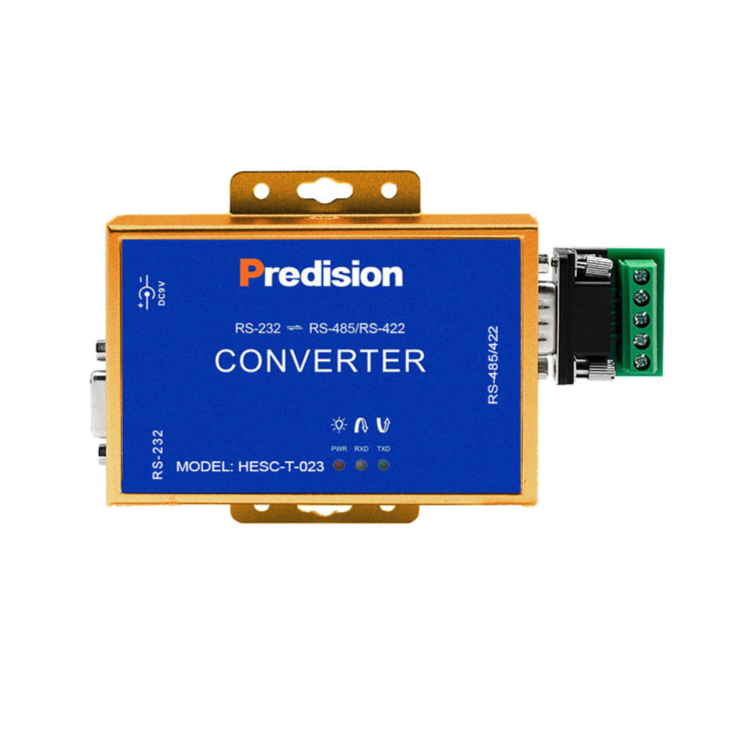

Predision HESC-T-023 RS-232 to RS-485/422 Converter 1

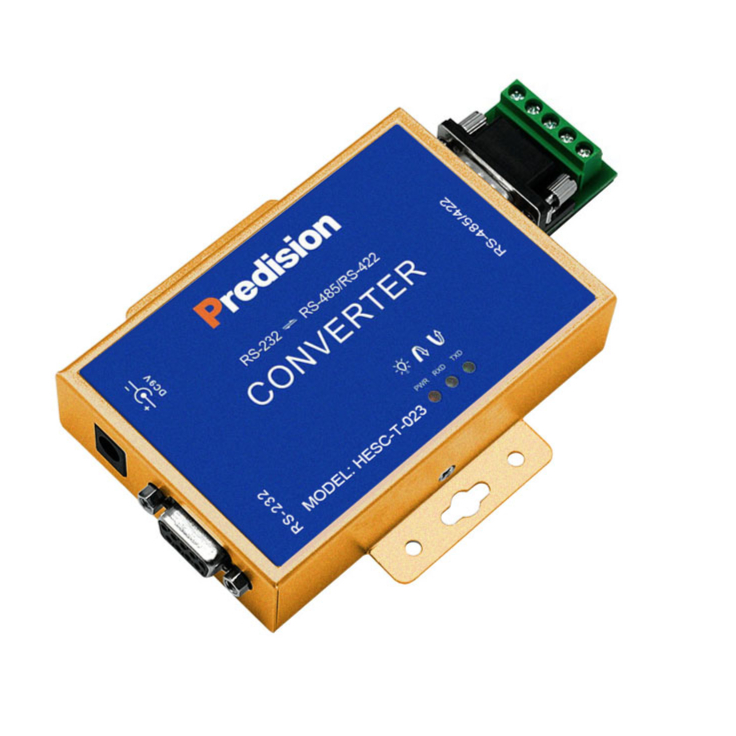

Predision HESC-T-023 RS-232 to RS-485/422 Converter

Manufacturer Part Number: HESC-T-023

Brand: Predision

$ 82.00

Operating Temperature: -25°C to 70°C
600 W Lighting and Surge Protection per wire (RS-485/422)
Baud Rate: 300 bps - 115.2 kbps

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HESC-T-023 is fully compliant with RS-232C, RS-422, and RS-485 standards. It converts single-ended RS-232 signals into balanced differential RS-422 or RS-485 signals.

The device features advanced TVS (Transient Voltage Suppressors). Under normal conditions, the TVS diodes maintain a high-impedance state. When the circuit is subjected to a sudden high-power surge, the TVS rapidly reduces its impedance to shunt the surge current, clamping the voltage at a predetermined level to protect sensitive circuit components from damage. This protection provides 600W per wire against lightning strikes and surges, including instantaneous over-voltage from all sources. Furthermore, low inter-electrode capacitance ensures high-speed data transmission across RS-485/422 ports.

This converter features built-in zero-delay automatic receive/transmit switching. The unique I/O circuit automatically controls data flow direction without requiring handshake signals (RTS, DTR) or jumper settings for full-duplex (RS-422) and half-duplex (RS-485) modes. The device is truly Plug & Play, compatible with all current communication software and hardware without requiring modifications to legacy RS-232 configurations.

Standard	EIA/TIA RS-232C, RS-485/422

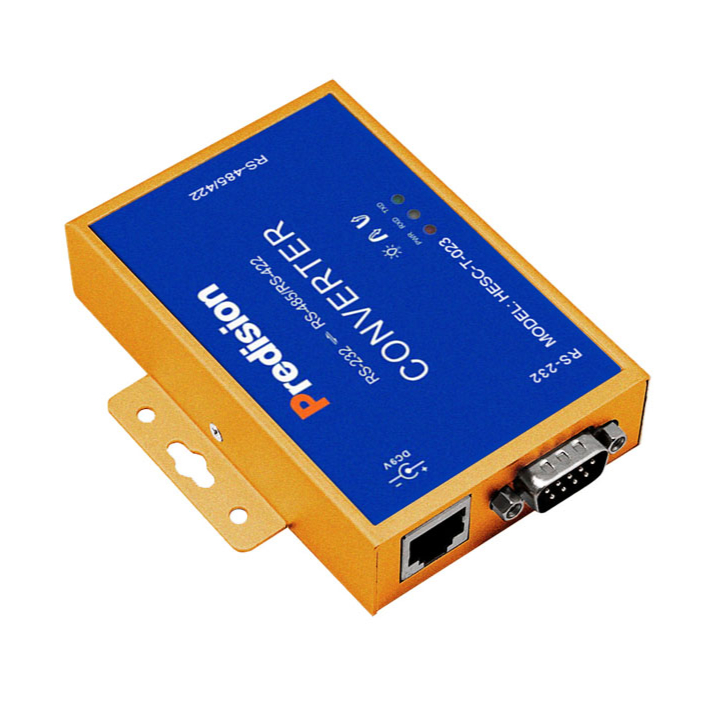

Connector	DB9 Female Input (RS-232), DB9 Male and RJ45 Output (RS-485/422)
Interface Protection	600 W Lighting and Surge Protection per wire (RS-485/422)
Operating Mode	Asynchronous Half-duplex or Full-duplex
Signal Indicators	Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD)
Transmission Media	Twisted-pair (UTP) or Shielded Cable (STP)
Baud Rate	300 bps - 115.2 kbps
Dimension	97 × 65 × 22 mm
Operating Temperature	-25°C to 70°C
Relative Humidity	5 - 95%
Transmission Distance	1,200m (RS-485/422); 5m (RS-232)
