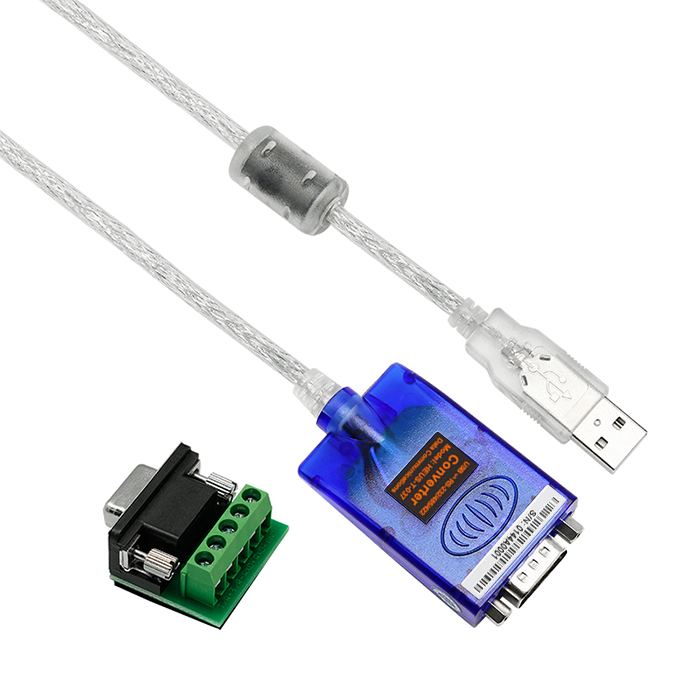

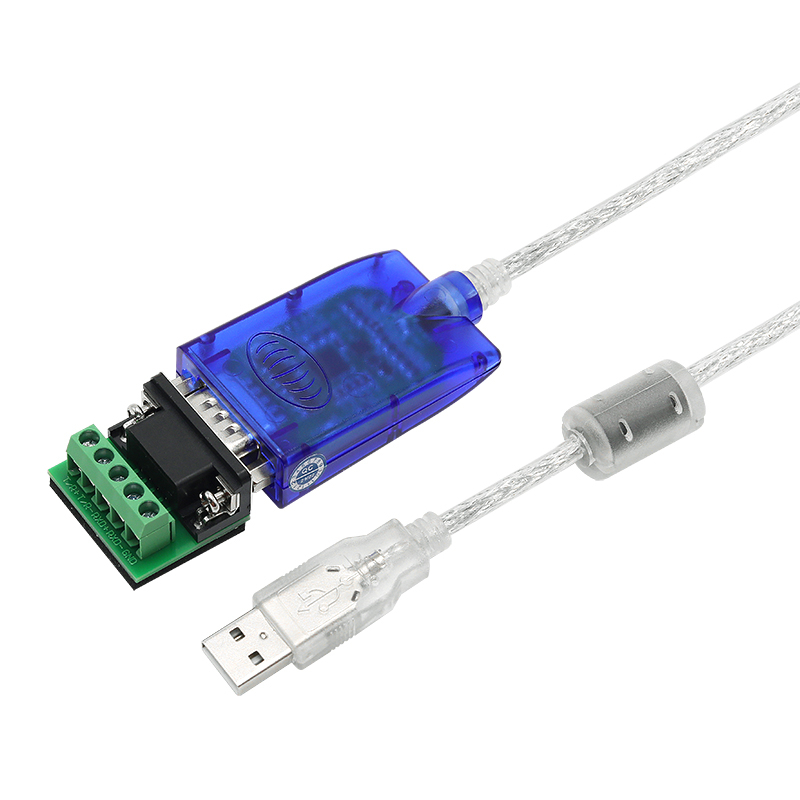

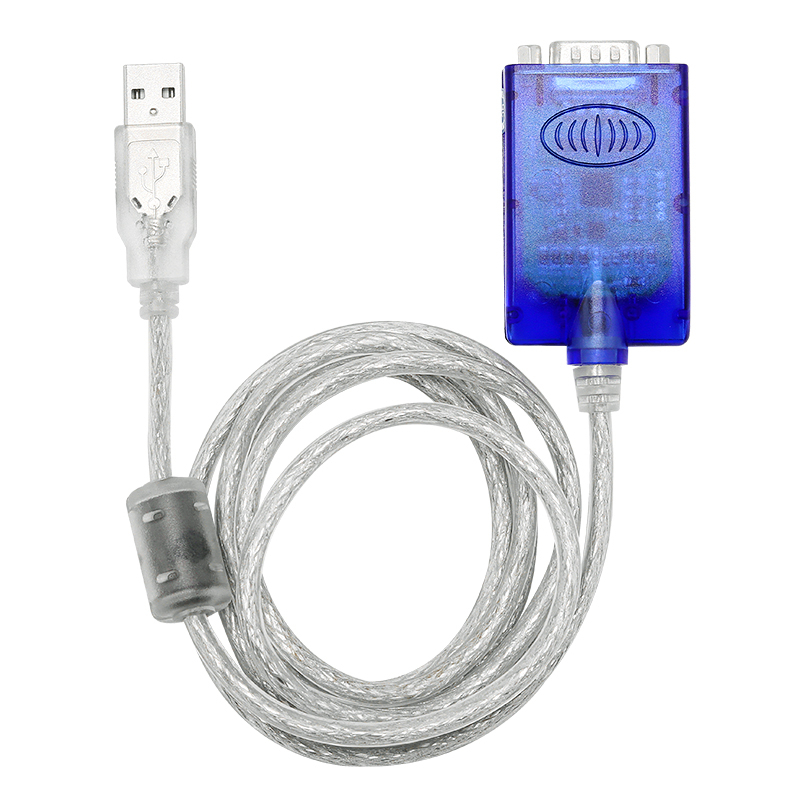

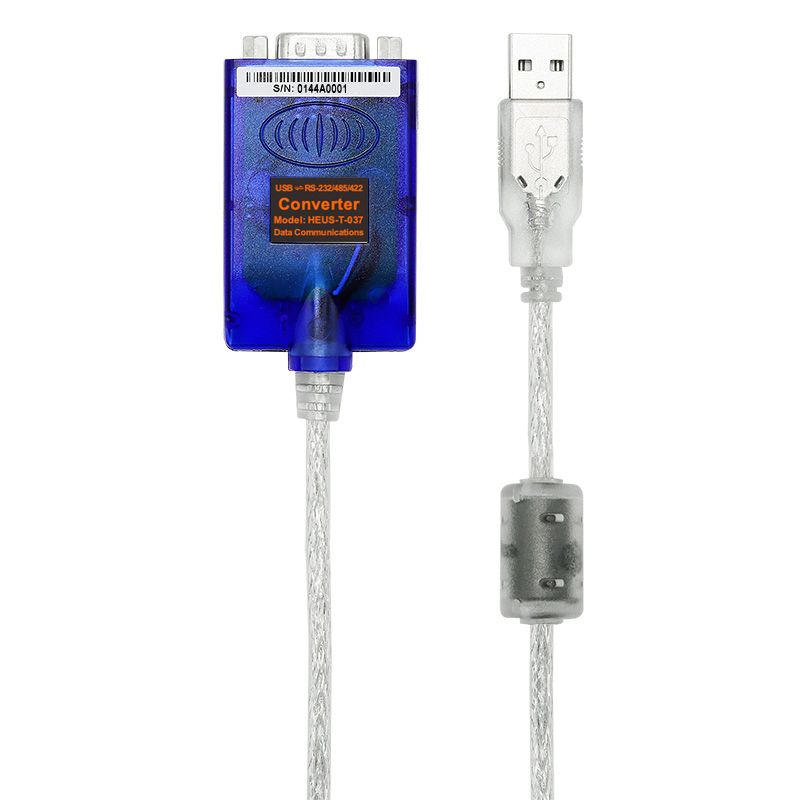

Predision HEUS-T-037 USB to RS-232/RS-485/RS-422 Converter
Manufacturer Part Number: HEUS-T-037
Brand: Predision
$ 66.00
- Operating Temperature: -40°C to 85°C
- ±15 kV ESD Protection
- Baud Rate: 300 - 921,600 bps
- Supports Connection of up to 128 RS-422 or RS-485 Devices
See our Shipping Policy for delivery regions and fees
7 Available
The HEUS-T-037 is a universal USB to RS-232/485/422 converter. This bus-powered device requires no external power supply and is fully compatible with USB, RS-232, RS-422, and RS-485 standards. It seamlessly converts single-ended USB signals into RS-232, RS-485, or RS-422 signals.
Featuring zero-delay automatic transceiver switching, the device utilizes a unique I/O circuit to automatically manage data direction without the need for handshake signals (such as RTS or DTR). No jumper settings are required to switch between full-duplex (RS-232/422) and half-duplex (RS-485) modes, ensuring plug-and-play compatibility with all existing communication software and hardware interfaces.
| Standard | USB 1.0/1.1/2.0; EIA RS-232/485/422 |
| USB Signals | VCC, DATA-, DATA+, GND, FG |
| RS-232 Signals | RXD, TXD, DTR, GND, DSR, RTS, CTS |
| RS-485 Signals | T/R+, T/R-, GND |
| RS-422 Signals | TXD+, TXD-, RXD+, RXD-, GND |
| Operating Mode | Asynchronous, Point-to-point or Point-to-multipoint, 2-wire Half-duplex, 4-wire Full-duplex |
| Direction Control | Automatic Data Direction Control (ADDC) |
| Baud Rate | 300 – 921,600 bps with Auto-Baud Detection |
| Node Support | Supports Connection of up to 128 RS-422 or RS-485 Devices in Point-to-multipoint Mode |
| Transmission Distance | 1,200m for RS-485/422 Port (at 9,600 bps), 5m for USB and RS-232 Port |
| Interface Protection | 200W Surge Protection, ±15 kV ESD Protection |
| Interface Connector | USB Type-A Male, DB9 Male Connector |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD) |
| Transmission Medium | Twisted-pair (UTP) or Shielded Cable (STP) |
| Dimensions (L x W x H) | 1500 × 36 × 16 mm |
| Operating Temperature | -40°C to 85°C; Relative Humidity: 5% to 95% |
| OS Support | WinXP/7/8/8.1/10/Linux etc. |
USB to RS-232/485/422 Converter, Serial 3-in-1, 1.5 m Cable, Baud Rate: 300 bps - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422 Port, 5m for USB and RS-232 Port, ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.
