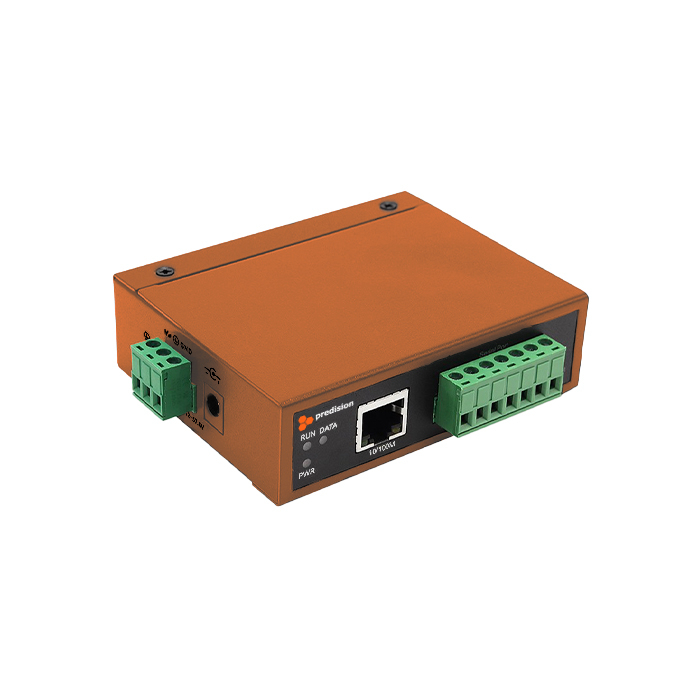

Predision HESM-T-001 10/100M Port to RS-232/485/422 Modbus Gateway 2

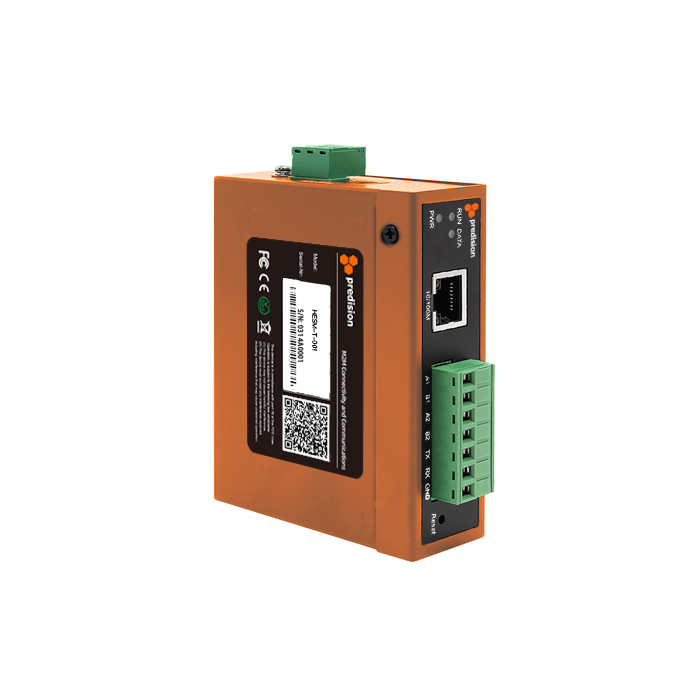

Predision HESM-T-001 10/100M Port to RS-232/485/422 Modbus Gateway

Manufacturer Part Number: HESM-T-001

Brand: Predision

$ 219.00

1 x RS-232/485/422 Port + 1 x 10/100M Port
Metal Housing, Din-rail or Wall Mounted
Working Temperature: -40 ~ 85°C
Wide Power Input: 12 ~ 57.6 VDC
Baud Rate: 300 - 921,600 bps
Supports Multiple Operating Modes: Modbus RTU Master/Slave, Modbus TCP Master/Slave
Supports Web Firmware Upgrade

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

HESM-T-001 provides Modbus gateway functionality, which can convert data from multiple cascaded Modbus RTU Slaves into Modbus TCP messages and supports access controlled by multiple Modbus TCP Masters. It can also convert data from multiple Modbus TCP Slaves into Modbus RTU messages and support multiple Modbus RTU Master access controls.

Hardware

Processor	32-bit LX6 240 MHz Microprocessor
Memory	520K
Ethernet Interface	10/100M (Embedded with 1.5KV Electromagnetic Isolation) Adaptive MDI/MDI-X Ethernet Interface, RJ45 Interface
Serial Port	RS-232, RS-485, RS-422
Port	7-pin 5.08 Pluggable Terminal Block

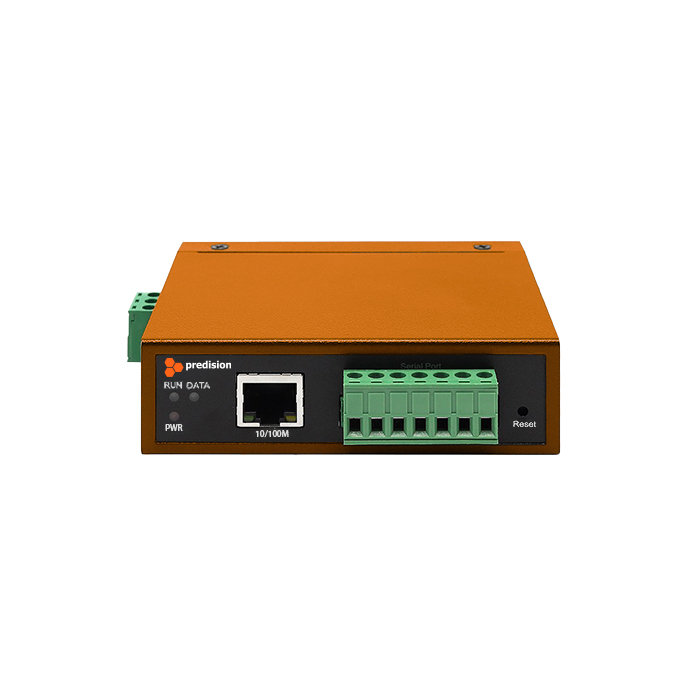

Indicator Light	Power Indicator PWR, Operation Indicator RUN, Serial Port Transmission and Reception Indicator DATA.

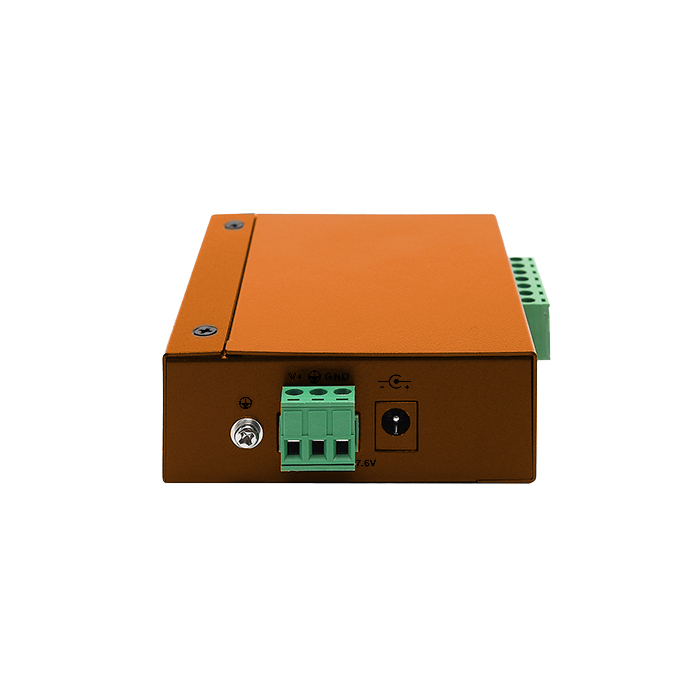

Power Interface	DC-005 DC Socket or 3-pin 5.08 Terminal for Power Supply, with Built-in Protection Against Reverse Connection
Power Supply Range	DC 12~57.6V
Function Buttons	1 Factory Reset Button RESET
Max. Power Consumption	12 V @ 160 mA
Casing	Metal Casing, Protection Level IP30
Installation Method	Default Din-rail Mounting, Fixed Plate Installation (Wall-mounted Optional)
Operating Environment	Storage Temperature: -40~85°C Operating Temperature: -40~85°C Relative Humidity: 5% ~95% (Non-condensing)
Altitude	0~4000m
Dimensions L×W×H	100 ×80.8 ×30 mm (Excluding Installation Components)
Net. Weight	248g

Software

Protocol Support	ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, SNMP, MQTT, MODBUS
Configuration Method	Web Browser，VCOM Utility (Virtual COM Only Windows)
Baud Rate	300-921,600 bps
Data Bits	5, 6, 7, 8
Stop Bits	1, 2
Check Bits	None, Odd, Even
Flow Control	RTS/CTS, DTR/DSR, XON/XOFF (Only RS-232)
