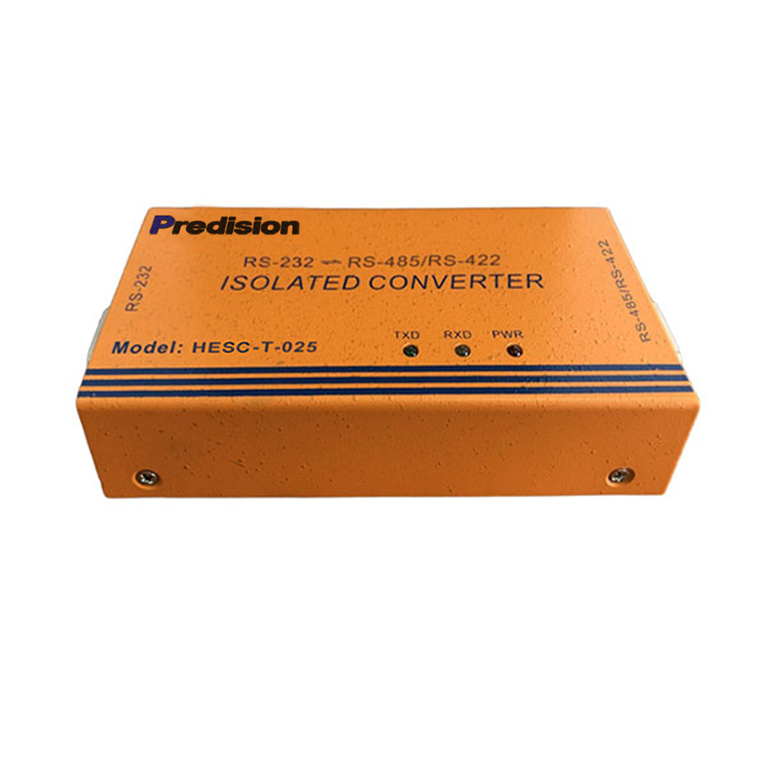

Predision HESC-T-025 Photoelectric Isolated RS-232 to RS-485/422 Converter
Manufacturer Part Number: HESC-T-025
Brand: Predision
$ 157.00
- Operating Temperature: -40°C to 85°C
- ±15 kV ESD Protection (RS-232), 600 W Lighting and Surge Protection per wire (RS-485/422)
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- Supports Connection of up to 128 RS-422 or RS-485 Devices
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HESC-T-025 is a high-capacity photoelectric isolated interface converter, fully compliant with RS-232C, RS-422, and RS-485 standards. It is designed to convert single-ended RS-232 signals into balanced differential RS-422 or RS-485 signals with maximum reliability. To ensure system stability in harsh electrical environments, the HESC-T-025 features an integrated photoelectric isolator providing up to 2,500 Vrms of isolation. Additionally, the RS-485/422 interfaces are protected by advanced TVS (Transient Voltage Suppressors). These components provide 600W of lightning and surge protection per wire, clamping instantaneous over-voltage from all sources. Low interelectrode capacitance further ensures high-speed, low-distortion data transmission.
Featuring built-in zero-delay automatic receive/transmit switching, the HESC-T-025 manages data flow direction via unique I/O circuitry. This eliminates the need for hardware handshake signals (RTS, DTR) or manual jumper settings. The device is fully Plug & Play, maintaining compatibility with all modern communication software and legacy RS-232 hardware.
The HESC-T-025 is engineered for scalable industrial communication, supporting both point-to-point and point-to-multipoint configurations. In point-to-multipoint mode, a single converter can support up to 128 RS-422 or RS-485 devices simultaneously. It supports a wide range of baud rates, from 300 bps to 115.2 kbps.
| Standard | EIA/TIA RS-232C, RS-485/422 |
| Electrical Interface | DB9 Female (RS-232), DB9 Male Connector (RS-485/422) |
| Interface Protection | ±15 kV ESD Protection (RS-232), 600 W Lighting and Surge Protection per wire (RS-485/422) |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous) |
| Operating Mode | Asynchronous Half-duplex or Full-duplex |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD) |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Baud Rate | 300 bps - 115.2 kbps |
| Dimension | 113 × 55 × 25 mm |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5 - 95% |
| Transmission Distance | 5,000m (at 9,600 bps) |
