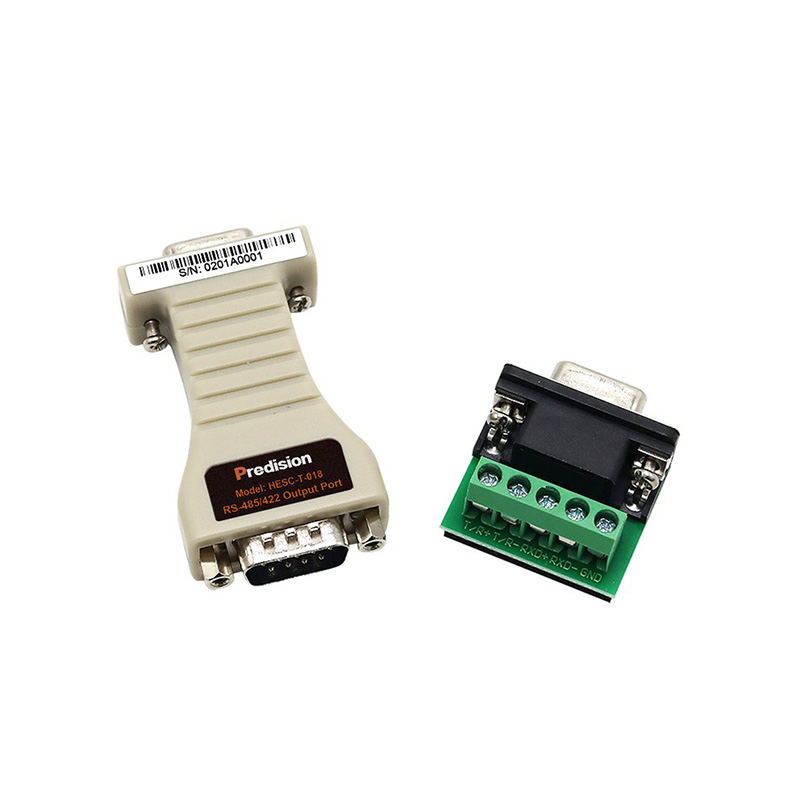

Predision HESC-T-018 Mini RS-232 to RS-485/422 Converter

Manufacturer Part Number: HESC-T-018

Brand: Predision

$ 37.00

Operating Temperature: -25°C to 70°C
Baud Rate: 300 bps - 115.2 kbps

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HESC-T-018 is a high-performance, universal interface converter compatible with RS-232C, RS-485, and RS-422 standards. It seamlessly converts single-ended RS-232 signals into balanced differential RS-485 or RS-422 signals, extending communication range up to 1.2 kilometers without requiring an external power supply.

Driven by a unique 'RS-232 Charge Pump', the device harvests operating power directly from the serial lines without port initialization. The HESC-T-018 features zero-delay automatic transceiver switching and intelligent I/O circuitry that autonomously governs data flow direction. Crucially, it supports jumper-free mode switching between Full-Duplex (RS-422) and Half-Duplex (RS-485), ensuring that software written for standard RS-232 operation runs flawlessly without code modifications.

Supporting baud rates from 300 bps to 115.2 kbps, the HESC-T-018 is optimized for point-to-point and point-to-multipoint remote networking between controllers, microcontrollers, and peripherals. It is widely utilized in industrial automation, smart card systems, access control, parking management, automated banking, public transit ticketing, and toll station systems.

Standard	RS-232C, RS-485/RS-422 TIA/EIA
Connector	DB9 Female Input (RS-232), DB9 Male Output (RS-485/422), with Terminal Block
Operating Mode	Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection
Transmission Media	Twisted-pair (UTP) or Shielded Cable (STP)
Baud Rate	300 - 115,200 bps
Dimension	63 × 33 × 17 mm
Operating Environment	-25℃ to 70℃, Relative Humidity 5% to 95%
Transmission Distance	1,200m (RS-485/422), 5m (RS-232)

HESC-T-018

RS-232 to RS-485/422 Converter, with 5-pin Terminal Block, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Power: Port-Powered, Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection, Transmission Distance: 1,200m (RS-485/422), 5m (RS-232), Operating Temperature: -25℃ to 70℃.

HESC-T-019

RS-232 to RS-485/422 Converter, with 6-pin Terminal Block, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Power: Port-Powered, Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection, Transmission Distance: 1,200m (RS-485/422), 5m (RS-232), 2kA Lightning Surge Protection, Operating Temperature: -40℃ to 85℃.

HESC-T-020

RS-232 to RS-485/422 Port-Powered Converter with Photoelectric Isolation, Aluminum Enclosure, Wall Mounted, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -25℃ to 70℃.

HESC-T-021

RS-232 to RS-485/422 Port-Powered Converter with Photoelectric Isolation, Plastic Housing, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-022

RS-232 to RS-485/422 Port-Powered Photoelectric Isolated Converter with 10-pin Terminal Block (RS-485/422), Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-023

RS-232 to RS-485/422 Converter, Metal Housing, Wall Mounted, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), 600 W Lighting and Surge Protection per wire, Operating Temperature: -25℃ to 70℃.

HESC-T-024

RS-232 to RS-485/422 Photoelectric Isolated Converter, Metal Housing, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -25℃ to 70℃.

HESC-T-025

Industrial RS-232 to RS-485/422 Photoelectric Isolated Converter, Baud Rate: 300 bps - 115.2 kbps, Supports Connection of up to 128 RS-485 or RS-422 Devices, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-026

Industrial RS-232 to RS-485/422 Photoelectric Isolated Converter, Baud Rate: 300 bps - 115.2 kbps, Supports Connection of up to 128 RS-485 or RS-422 Devices, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 1,500 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-027

RS-232 to RS-485/422 Photoelectric Isolated Converter, Wall Mounted, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -25℃ to 70℃.

HESC-T-028

Industrial RS-232 to RS-485/422 Converter with Optical Isolation, Baud Rate: 300 - 115,200 bps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -40℃ to 85℃.
