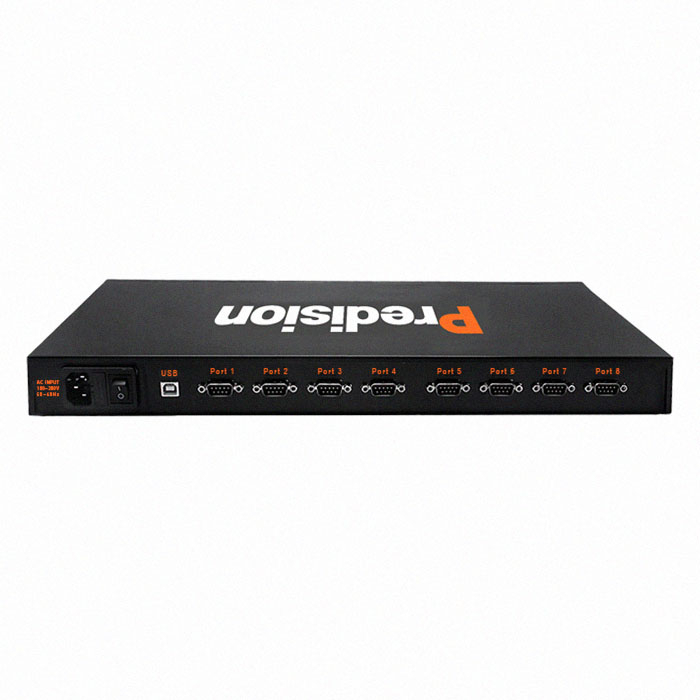

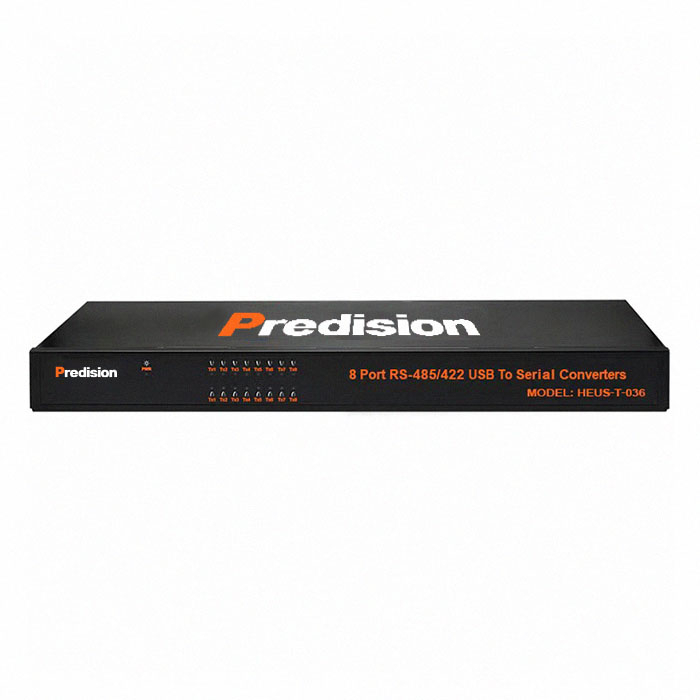

Predision HEUS-T-036 USB to 8-port RS-485/422 Converter with Photoelectric Isolation
Manufacturer Part Number: HEUS-T-036
Brand: Predision
$ 1498.00
- Operating Temperature: -25°C to 70°C
- 600 W Surge Protection, ±15 kV ESD Protection
- Baud Rate: 300 - 921,600 bps
- Supports Connection of up to 128 RS-422 or RS-485 Devices
- Power Input: AC 100-240 V /50-60 Hz
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HEUS-T-036 is a universal USB to RS-485/422 converter featuring a built-in photoelectric isolator and an isolated DC/DC power module. Compliant with USB, RS-422, and RS-485 standards, it converts single-ended USB signals into balanced differential RS-422 or RS-485 signals. To ensure maximum reliability in harsh environments, the integrated photoelectric isolator provides up to 2,500 Vrms of isolation voltage, complemented by fast transient voltage suppression to protect the RS-485/422 interfaces.
The converter features zero-latency automatic transceiver conversion and unique I/O circuitry that manages data flow direction without the need for handshaking signals (such as RTS or DTR). This eliminates the need for jumper settings when switching between full-duplex (RS-422) and half-duplex (RS-485) modes. The device is plug-and-play and ensures seamless integration across all modern communication software and hardware.
The HEUS-T-036 supports both point-to-point and point-to-multipoint communication, allowing for the connection of up to 128 devices. It supports Auto-Baud rates from 300 bps to 921.6 kbps, with integrated power and data flow indicators for real-time status monitoring.
| Standard | USB 1.0/1.1/2.0; EIA RS-485/422 |
| USB Signals | VCC, DATA+, DATA-, GND, FG |
| RS-485 Signal | T/R+, T/R-, GND |
| RS-422 Signal | T/R+, T/R-, RXD+, RXD-, GND |
| Operating Mode | Asynchronous, Point-to-point or Point-to-multipoint, 2-wire Half-duplex, 4-wire Full-duplex |
| Direction Control | Automatic Data Direction Control (ADDC) |
| Baud Rate | 300 - 921,600 bps with Auto-Baud Detection |
| Node Support | Supports Connection of up to 128 RS-422 or RS-485 Devices in Point-to-multipoint Mode |
| Interface Protection | 600 W Surge Protection, ±15 kV ESD Protection |
| Interface Connector | USB Type-B Female, DB9 Male Connector for RS-485/422 Port |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD) |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Operating Temperature | -25°C to 70°C; Relative Humidity: 5% to 95% |
| Transmission Distance | 0 - 5,000m (at 921,600 bps - 9,600 bps) |
| OS Support | WinXP/ Vista/Win 7/8/8.1/10/Linux |
USB to RS-485/422 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422 Port, 5m for USB, ±15 kV ESD Protection, Operating Temperature: -20℃ to 75℃.
USB to RS-485/422 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422, 5m for USB, Operating Temperature: -40℃ to 85℃.
USB to RS-485/422 Converter, Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 128,000 bps, Transmission Distance: 5,000m (at 9,600 bps) for RS-485/422 Port, 5m for USB, 1,500 W Lightning and Surge Protection, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-485/422 Converter (USB 2.0), Plastic Housing, Baud Rate: 300 - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422 Port, 5m for USB, 600 W Lightning and Surge Protection, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 8-port RS-485/422 Converter (USB 2.0), Photoelectric Isolated, 1U Enclosure, Baud Rate: 300 - 921,600 bps, Power Input: AC 100-240 V /50-60 Hz, Transmission Distance: 5,000m (at 9,600 bps) for RS-485/422 Port, 5m for USB, Operating Temperature: -25℃ to 70℃.
