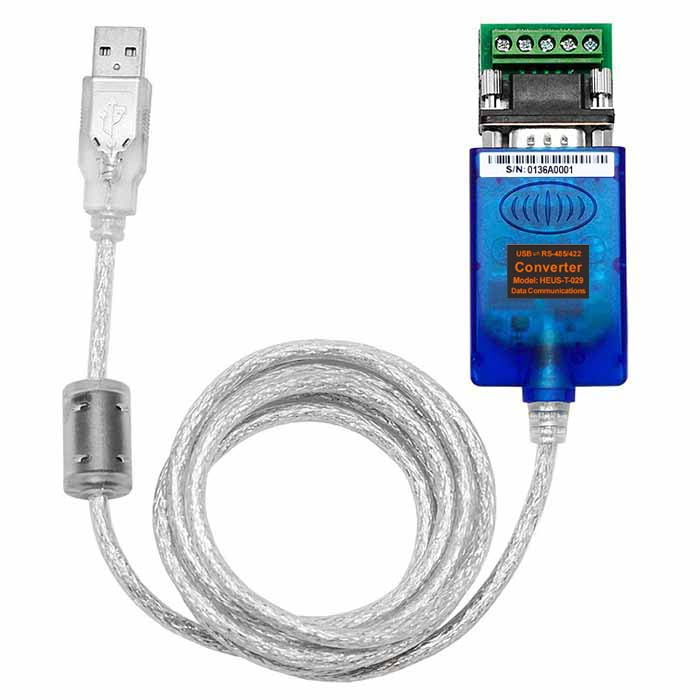

Predision HEUS-T-029 USB to RS-485/422 Converter

Manufacturer Part Number: HEUS-T-029

Brand: Predision

$ 56.00

Operating Temperature: -40°C to 85°C
±15 kV ESD Protection
Baud Rate: 300 - 921,600 bps
Supports Connection of up to 32 RS-422 or RS-485 Devices

See our Shipping Policy for delivery regions and fees

50 Available

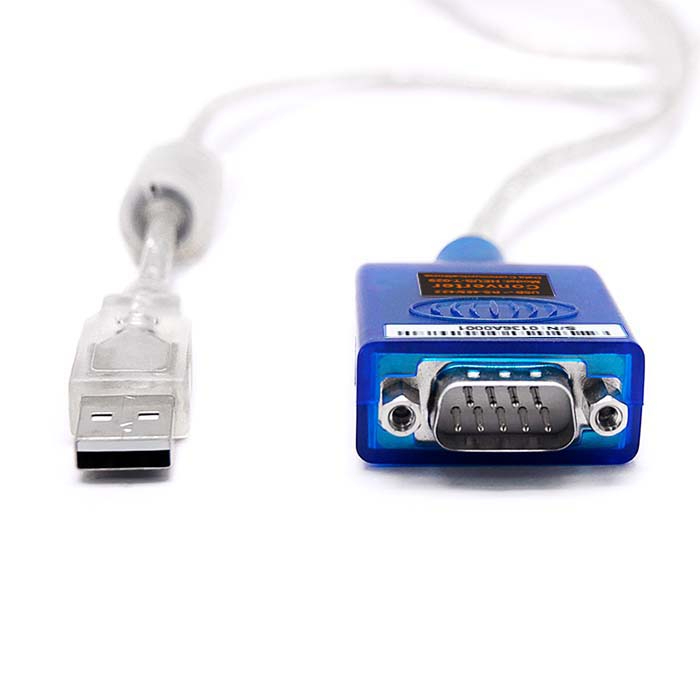

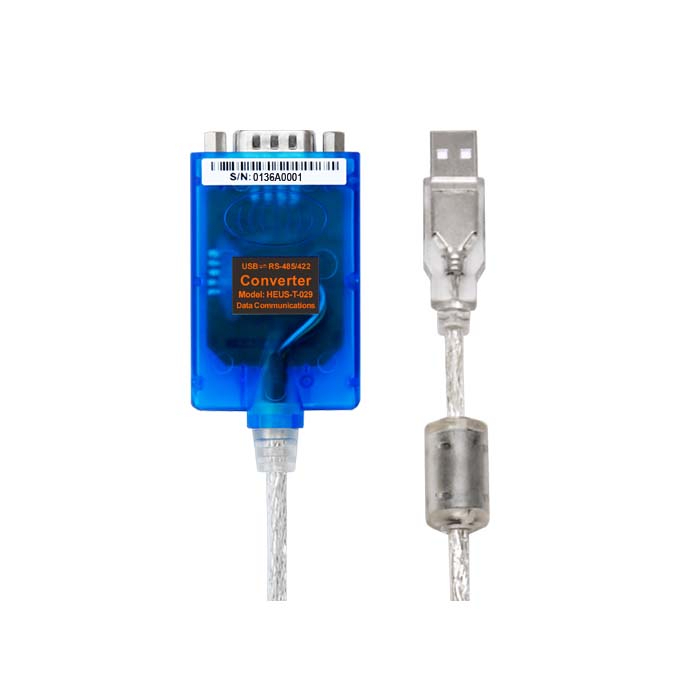

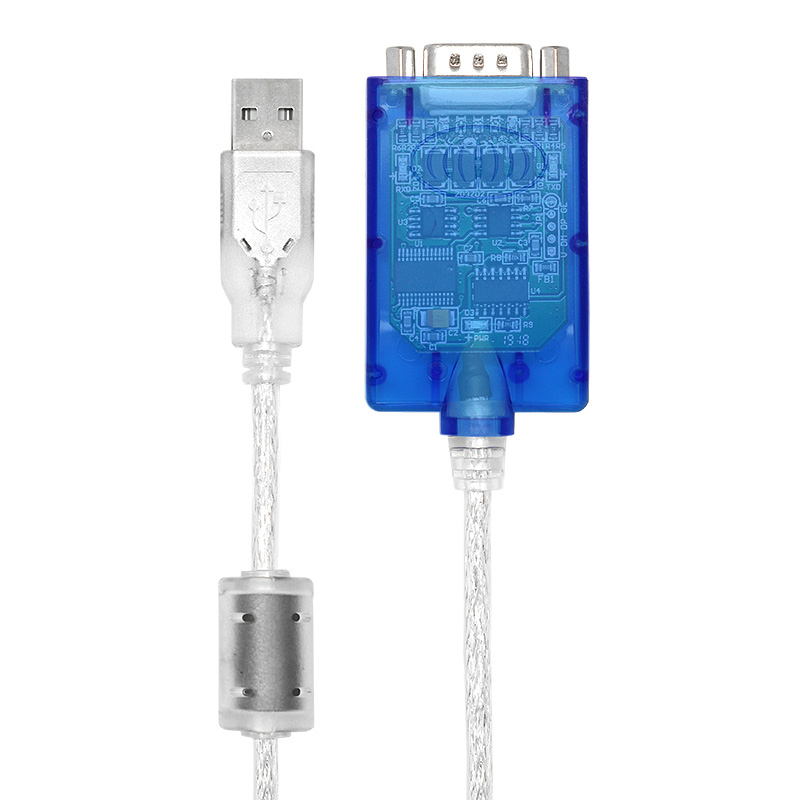

The HEUS-T-029 is a universal USB to RS-485/422 converter that operates without an external power supply. Fully compatible with USB, RS-422, and RS-485 standards, it converts single-ended USB signals into balanced differential RS-422 or RS-485 signals. The device features integrated surge protection for each wire, while low inter-pole capacitance ensures high-speed data transmission. Both RS-422 and RS-485 ports are accessible via a DB9 male connector.

Equipped with zero-delay automatic switching, the converter’s unique I/O circuit manages data flow direction without the need for handshake signals (such as RTS or DTR). It also eliminates the need for jumper settings when switching between full-duplex (RS-422) and half-duplex (RS-485) modes, ensuring seamless compatibility with all existing communication software and hardware.

The HEUS-T-029 provides reliable point-to-point and point-to-multipoint connectivity. In point-to-multipoint mode, a single converter can support up to 32 RS-422 or RS-485 devices. It supports data rates from 300 bps to 921.6 kbps and includes dedicated LED indicators for power and data flow to simplify troubleshooting.

Standard	USB 1.0/1.1/2.0; EIA RS-485/422
USB Signals	VCC, DATA-, DATA+, GND, FG
RS-485 Signals	T/R+、T/R-、GND
RS-422 Signals	T/R+、T/R-、RXD+、RXD-、GND
Operating Mode	Asynchronous, 2-wire Half-duplex or 4-wire Full-duplex
Direction Control	Automatic Data Direction Control (ADDC)
Baud Rate	300 – 921,600 bps with Auto-Baud Detection
Node Support	Supports Connection of up to 32 RS-422 or RS-485 Devices in Point-to-multipoint Mode
Transmission Distance	1,200m for RS-485/422 Port (at 9,600 bps), 5m for USB
Interface Protection	±15 kV ESD Protection
Interface Connector	USB Type-A Male, DB9 Male Connector for RS-485/422 Port
Signal Indicators	Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD)
Transmission Medium	Twisted-pair (UTP) or Shielded Cable (STP)
Cable Length	1500 mm
Operating Temperature	-40°C to 85°C; Relative Humidity: 5% to 95%
OS Support	Win 8/Win 10/Win 2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux

HEUS-T-028

USB to RS-485/422 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422 Port, 5m for USB, ±15 kV ESD Protection, Operating Temperature: -20℃ to 75℃.

HEUS-T-029

USB to RS-485/422 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422, 5m for USB, Operating Temperature: -40℃ to 85℃.

HEUS-T-033

USB to RS-485/422 Converter, Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 128,000 bps, Transmission Distance: 5,000m (at 9,600 bps) for RS-485/422 Port, 5m for USB, 1,500 W Lightning and Surge Protection, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-034

USB to RS-485/422 Converter (USB 2.0), Plastic Housing, Baud Rate: 300 - 921.6 kbps with Auto-Baud Detection, Transmission Distance: 1,200m (at 9,600 bps) for RS-485/422 Port, 5m for USB, 600 W Lightning and Surge Protection, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-036

USB to 8-port RS-485/422 Converter (USB 2.0), Photoelectric Isolated, 1U Enclosure, Baud Rate: 300 - 921,600 bps, Power Input: AC 100-240 V /50-60 Hz, Transmission Distance: 5,000m (at 9,600 bps) for RS-485/422 Port, 5m for USB, Operating Temperature: -25℃ to 70℃.
