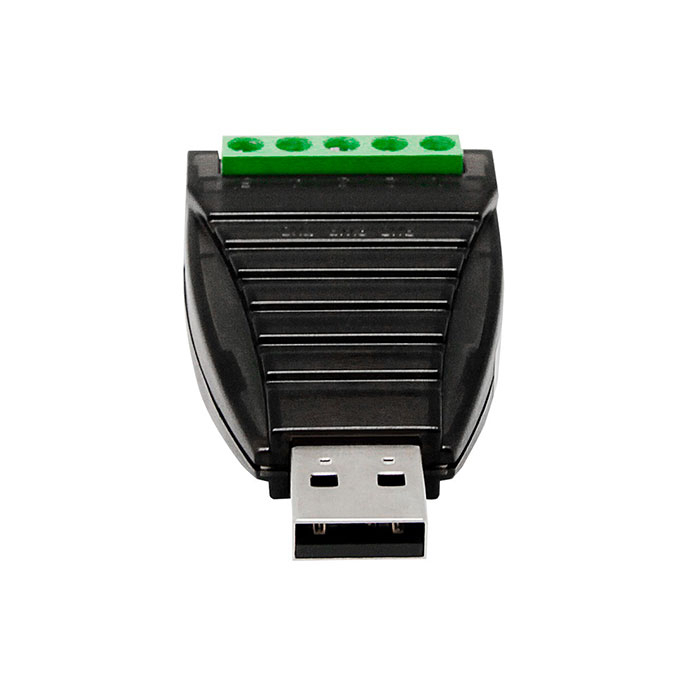

Predision HEUS-T-034 USB to RS-485/422 Converter 1

Predision HEUS-T-034 USB to RS-485/422 Converter 2

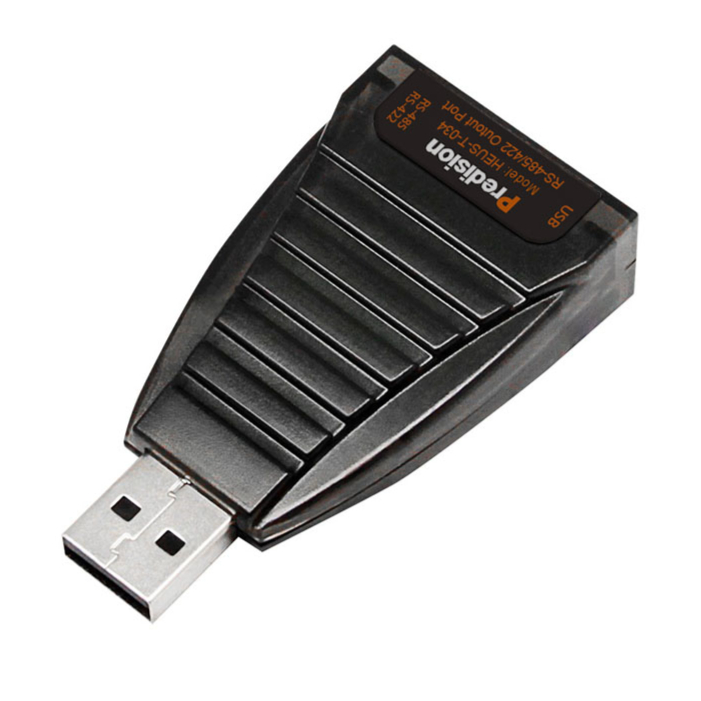

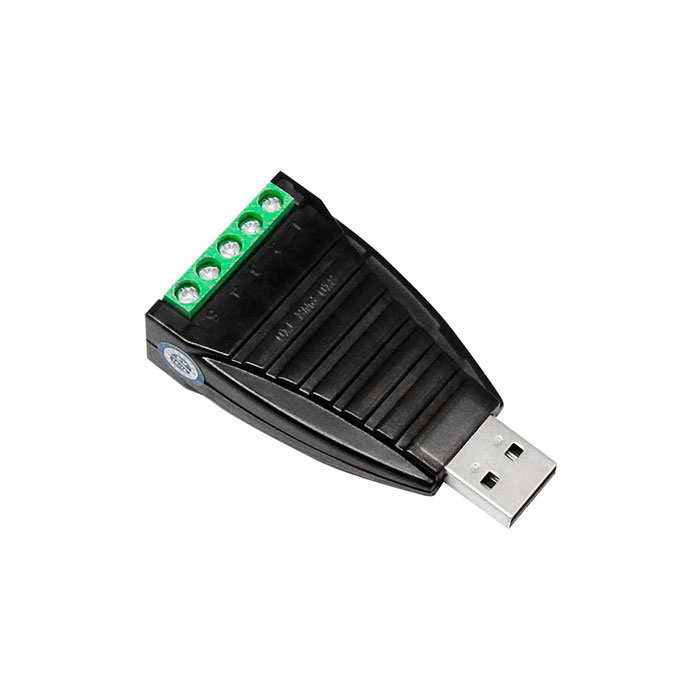

Predision HEUS-T-034 USB to RS-485/422 Converter

Manufacturer Part Number: HEUS-T-034

Brand: Predision

$ 62.00

Operating Temperature: -40°C to 85°C
600 W Lightning and Surge Protection, ±15 kV ESD Protection
Baud Rate: 300 - 921,600 bps
Supports Connection of up to 32 RS-422 or RS-485 Devices

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HEUS-T-034 is a universal, bus-powered USB to RS-485/422 converter that requires no external power supply. Compliant with USB, RS-422, and RS-485 standards, it converts single-ended USB signals into balanced differential RS-422 or RS-485 signals.

Featuring zero-latency automatic transceiver conversion and unique I/O circuitry, the HEUS-T-034 manages data flow direction without the need for handshaking signals (such as RTS or DTR). No jumper settings are required to switch between full-duplex (RS-422) and half-duplex (RS-485) modes.

The converter supports both point-to-point and point-to-multipoint communication, allowing for the connection of up to 32 devices. It supports Auto-Baud rates ranging from 300 to 921.6 kbps and ensures seamless integration across all modern communication software and hardware.

Standard	USB 1.0/1.1/2.0; EIA RS-485/422
USB Signals	VCC, DATA+, DATA-, GND, FG
RS-485 Signals	T/R+, T/R-, GND
RS-422 Signals	T+, T-, R+, R-, GND
Operating Mode	Asynchronous, Point-to-point or Point-to-multipoint, 2-wire Half-duplex or 4-wire Full-duplex
Direction Control	Automatic Data Direction Control (ADDC)
Baud Rate	300 - 921,600 bps with Auto-Baud Detection
Node Support	Supports Connection of up to 32 RS-422 or RS-485 Devices in Point-to-multipoint Mode
Transmission Distance	1.2km (at 9,600 bps) for RS-485/422 Port, 5m for USB
Interface Protection	600W Lightning and Surge Protection, ±15 kV ESD Protection

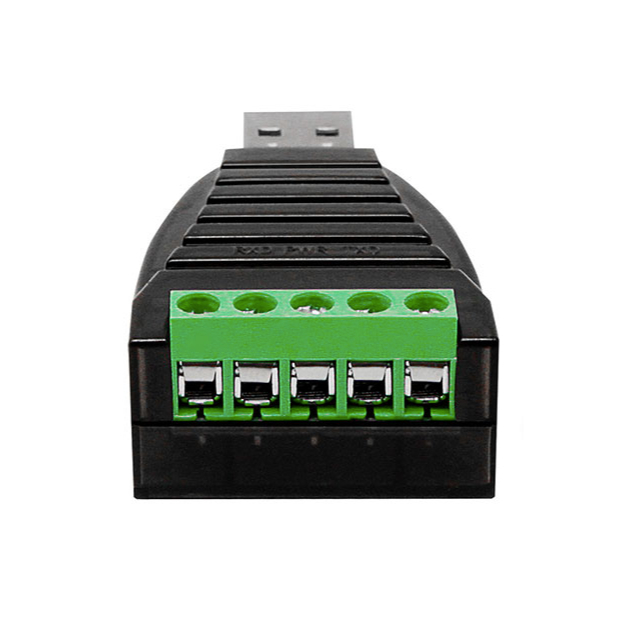

Interface Connector	USB Type-A Male, 5-pin Terminal Block for RS-485/422 Port
Signal Indicators	Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD)
Transmission Medium	Twisted-pair (UTP) or Shielded Cable (STP)
Dimensions (L x W x H)	62 × 33 × 16 mm
Operating Temperature	-40°C to 85°C
Relative Humidity	5% to 95%
OS Support	Win 8/Win 10/Win 2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
