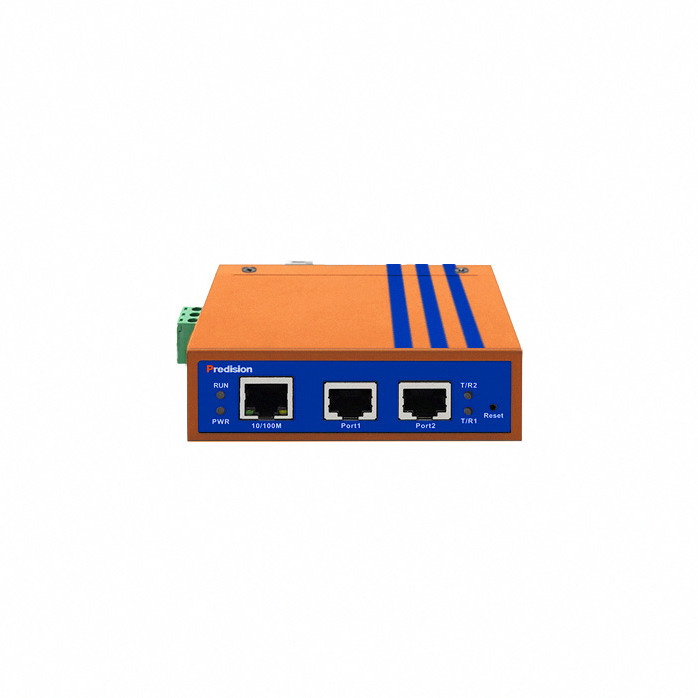

Predision HESS-T-010 10/100M to 2-port RS-232/485/422 Serial Server 2

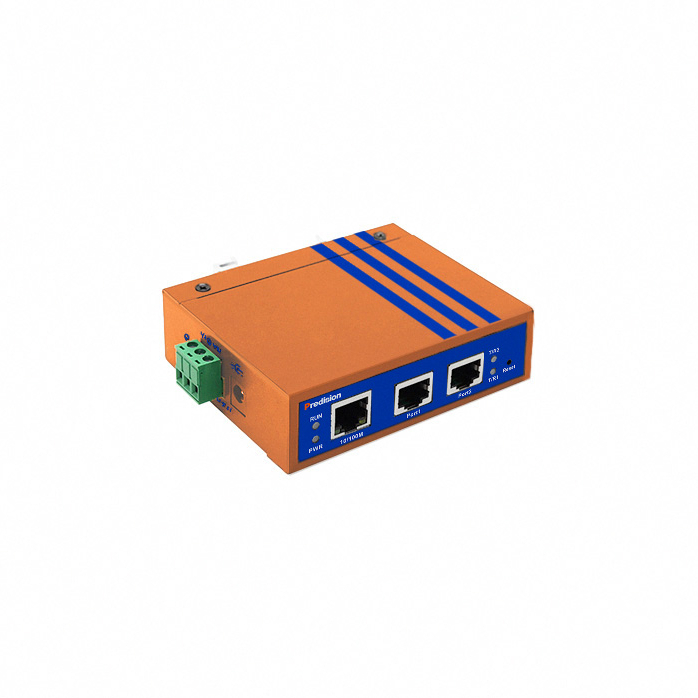

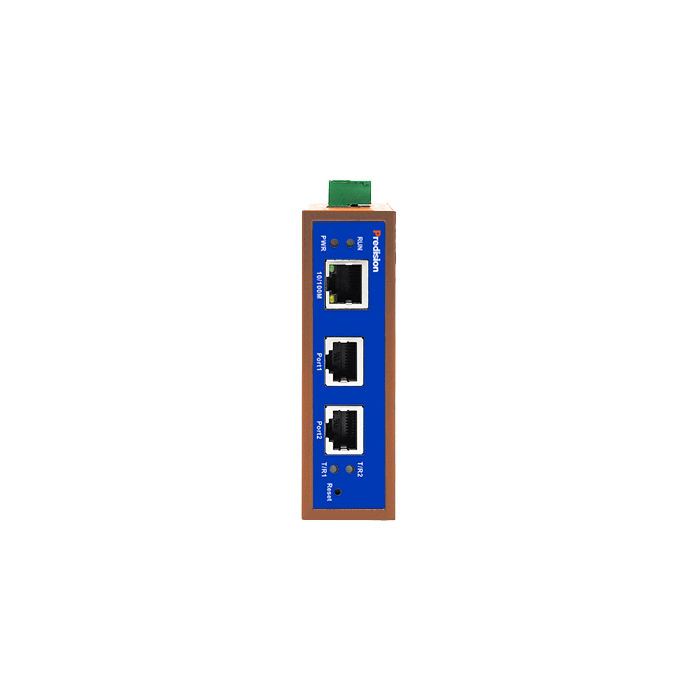

Predision HESS-T-010 10/100M to 2-port RS-232/485/422 Serial Server

Manufacturer Part Number: HESS-T-010

Brand: Predision

$ 201.00

2 × RS-232/485/422 Port + 1 × 10/100M Port
Operating Temperature: -40°C to 85°C
±6 kV ESD Protection for Serial Port, 1.5 kVAC Isolation Protection for Ethernet Port
Supports multiple Operating Modes: VCOM, MCP, TCP Server, TCP Client, UDP, Remote Pair Mode, Modbus TCP Server, Modbus TCP Client, MQTT
Supports Modbus Multi-master and Multi-slave Connections across four Operating Modes: RTU Master/Slave and TCP Master/Slave
Supports Web Configuration and VistaComs Host Computer Tool Configuration
Supports Heartbeat Package and Registration Package
Supports Web Firmware Upgrade

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

The HESS-T-010 Serial Device Server—also known as a terminal or serial server—is a high-performance converter bridging asynchronous RS-232/422/485 serial ports and Ethernet. As an independent, intelligent device, it features a dedicated CPU, an embedded OS, and a comprehensive TCP/IP protocol stack.

It provides full bi-directional, transparent data transmission, enabling serial devices to connect to the network instantly without requiring any modifications to the existing system. The HESS-T-010 series supports both dynamic (DHCP) and static IP addressing, as well as gateway and proxy server configurations. It natively integrates essential protocols, including ARP, IP, TCP, HTTP, ICMP, sockets, UDP, and Modbus.

Interface

10/100/BaseT(X) Port	1 × 10/100M (RJ45 Connector)
Serial Port	2 × RS-232/485/422 Port (RJ45 Connector), 3-in-1
LED Indicators	PWR, RUN, T/R1 and T/R2
Baud Rate	300 - 921,600 bps
Data Bit	5, 6, 7, 8
Stop Bit	1, 2
Parity	None, Odd, Even

Software Features

Supported Protocols	ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, Modbus
Operating Mode	VCOM, MCP, TCP Server, TCP Client, UDP Client, Modbus TCP Server, Modbus TCP Client

Power Parameters

Power Connector	1 × DC Connector 1 × 3-pin 5.08 Terminal Block, with built-in Reverse Polarity Protection
Input Voltage	12 - 48 VDC
Max. Input Power	1.2 W
Function Buttons	1 × Factory Reset Button: RESET

Physical Characteristics

Housing	Metal Housing, IP30-rated Protection
Installation	Din-rail Mounted
Dimensions (W × H × D)	1.18" × 3.94" × 3.15" (30 × 100 × 80.8 mm)
Net Weight	0.53lb (240g)

Environmental Limits

Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Ambient Relative Humidity	5% to 95% (No Condensation)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	EN61000-4-2(ESD) Contact 6 kV, Air 8 kV EN61000-4-3(RS) 3V/m EN61000-4-4(EFT) Power 2 kV, Signal 1 kV EN61000-4-5(Surge) Power 2 kV, Signal 1 kV EN61000-4-6(CS) 3V/m

Warranty

5 Years

HESS-T-009

2-channel Isolated RS-485/422 + 1-channel 10/100M Port, Din-rail, Input Voltage: 12 - 36 VDC, IP30-rated Metal Housing, Baud Rate 300 - 921,600 bps, Operating Temperature: -40°C to 85°C.

HESS-T-010

2× RS-232/485/422 Port + 1 × 10/100M Port, Din-rail, Input Voltage: 12 - 48 VDC, IP30-rated Metal Housing, Baud Rate: 300 - 921,600 bps, ±6 kV ESD Protection for Serial Port, 1.5 kVAC Isolation Protection for Ethernet Port, Operating Temperature: -40°C to 85°C.

HESS-T-011

2-channel RS-485/422 + 1-channel 10/100M Port, Din-rail, Input Voltage: 12 - 48 VDC, IP30-rated Metal Housing, Baud Rate: 300 - 921,600 bps, ±6 kV ESD Protection for Serial Port, 1.5 kVAC Isolation Protection for Ethernet Port, Operating Temperature: -40°C to 85°C.
