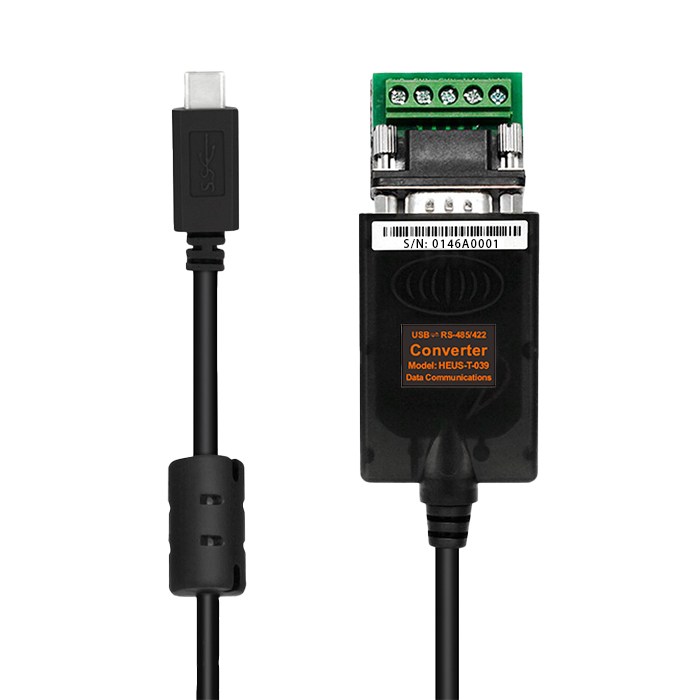

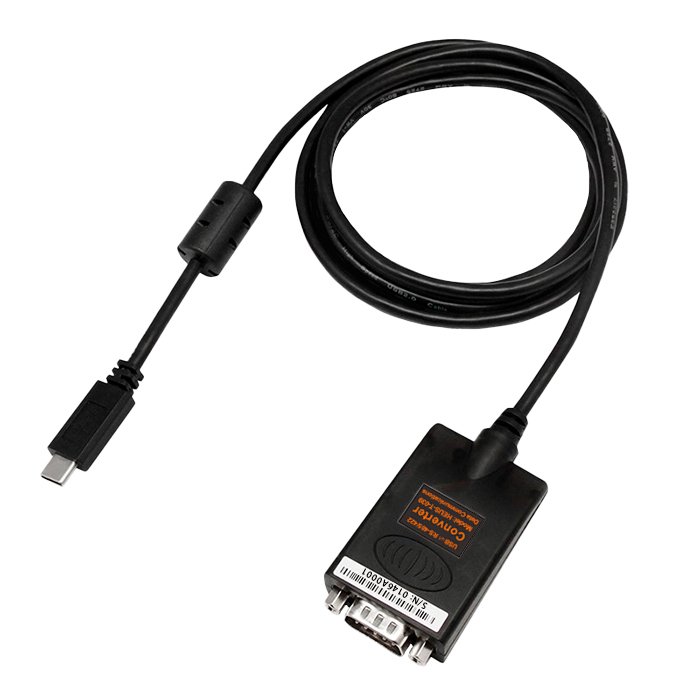

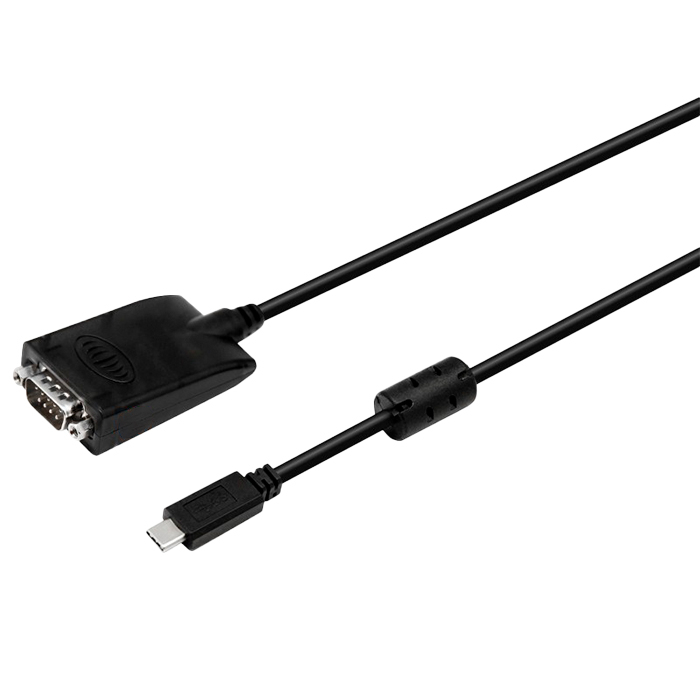

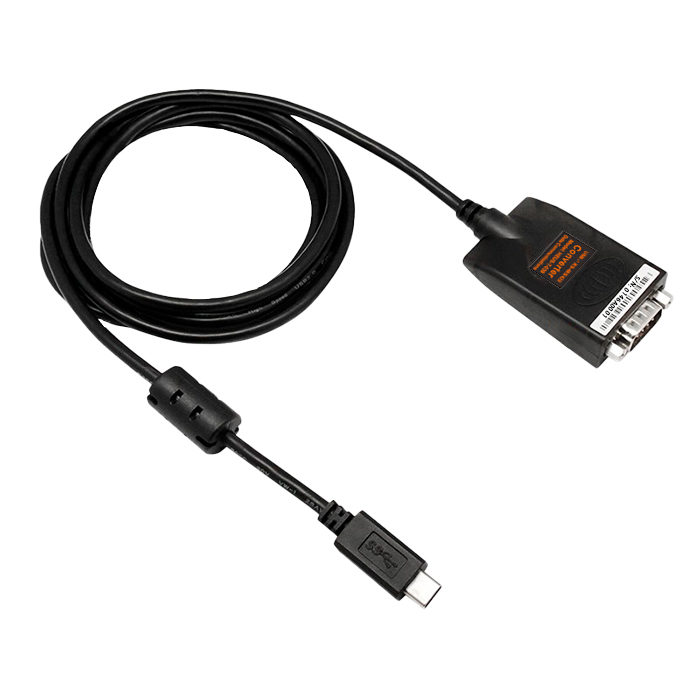

Predision HEUS-T-039 USB Type-C to RS-485/422 Converter
Manufacturer Part Number: HEUS-T-039
Brand: Predision
$ 24.99$ 67.80
- Operating Temperature: -40°C to 85°C
- 600 W Surge Protection and ±15 kV ESD Protection
- Baud Rate: 300 - 921,600 bps
See our Shipping Policy for delivery regions and fees
15 Available
The HEUS-T-039 converter features a universal USB to RS-485/422 converter that operates without an external power supply. Fully compatible with USB, RS-485, and RS-422 standards, it converts single-ended USB signals into balanced differential RS-485 or RS-422 signals.
High-speed transmission is ensured by extremely low inter-electrode capacitance. The converter utilizes RJ45 and DB9 male connectors and features a unique I/O circuit with zero-delay automatic transceiver switching. This allows the device to control data flow direction automatically without handshake signals (such as RTS or DTR). Additionally, the converter supports plug-and-play full-duplex (RS-422) and half-duplex (RS-485) modes without the need for jumper settings.
For added reliability, each wire is equipped with surge protection to guard against voltage spikes.
| Standard | Complies with USB 1.0, 1.1, 2.0, 3.1 Standards and EIA RS-485, RS-422 Standards |
| USB Signals | VCC, DATA-, DATA+, GND, FG |
| RS-485 Signals | T/R+, T/R-, GND |
| RS-422 Signals | T/R+, T/R-, RXD+, RXD-, GND |
| Operating Mode | Asynchronous, Point-to-point or Point-to-multipoint, 2-wire Half-duplex, 4-wire Full-duplex |
| Direction Control | Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction |
| Baud Rate | 300 - 921,600 bps |
| Node Support | Supports connection of up to 32 RS-485 or RS-422 Devices in Point-to-multipoint Mode |
| Transmission Distance | RS-485/422 Port: Up to 1,200m (at 9,600 bps), USB: 5m |
| Interface Protection | 600 W Surge Protection, ±15 kV ESD Protection |
| Interface Connector | USB Type-C Male (USB), DB9 Male Connector (RS-485/422) |
| Signal Indicators | Two LEDs for Transmit (TXD) and Receive (RXD) |
| Transmission Medium | Twisted-pair (UTP) or Shielded Cable (STP) |
| Cable Length | 1500 ± 30 mm |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% |
| OS Support | Win 2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux |
USB Type-C to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 460,800 bps, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB Type-C to RS-485/422 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps, Supports Connection of up to 32 RS-485 or RS-422 Devices, Transmission Distance: RS-485/422 Port Up to 1,200 m(at 9,600 bps), USB 5 m, Operating Temperature: -40℃ to 85℃.
