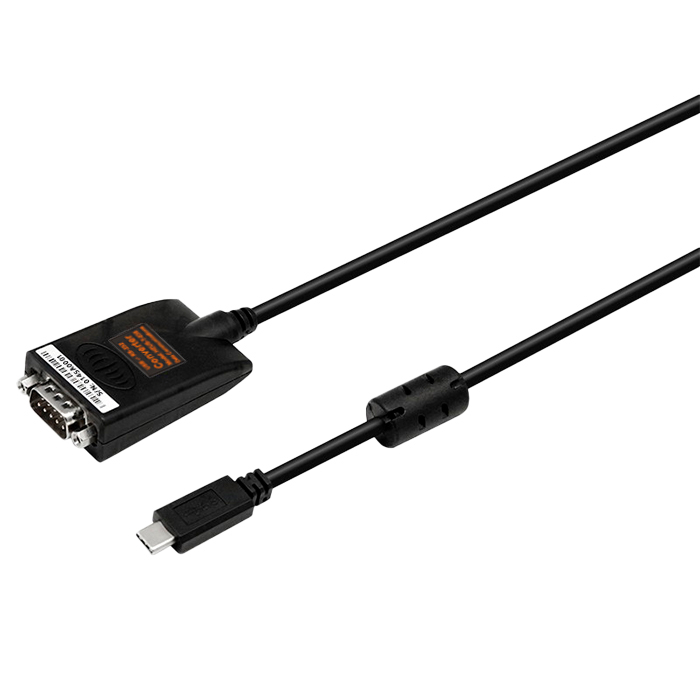

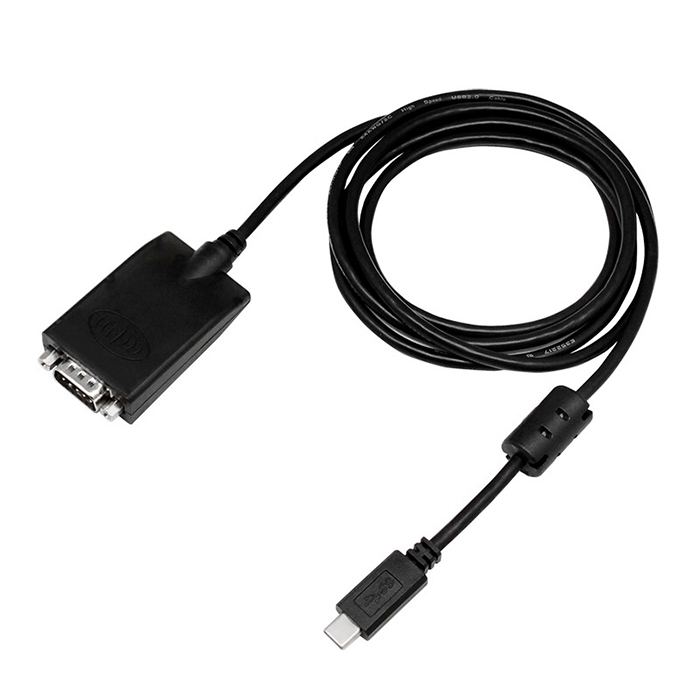

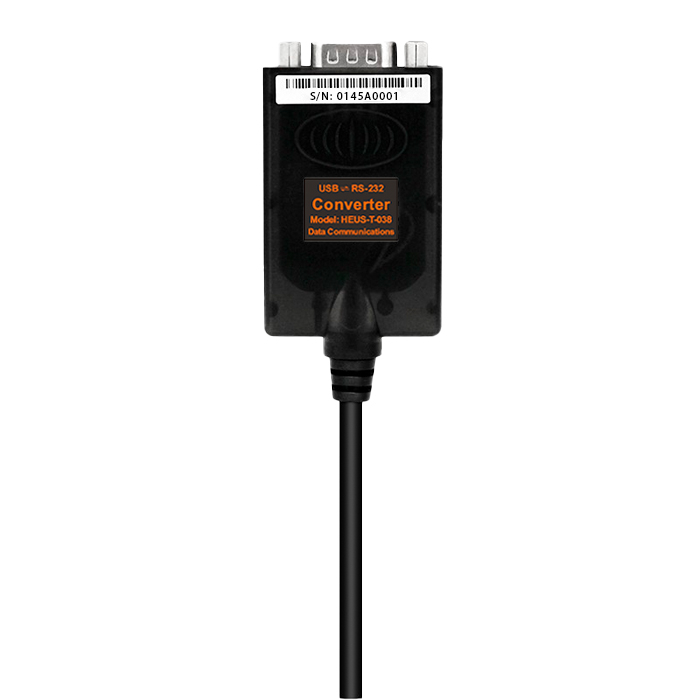

Predision HEUS-T-038 USB Type-C to RS-232 Converter
Manufacturer Part Number: HEUS-T-038
Brand: Predision
$ 19.99$ 43.00
- Operating Temperature: -40°C to 85°C
- ±15 kV ESD Protection
- Baud Rate: 300 - 460,800 bps
See our Shipping Policy for delivery regions and fees
15 Available
The HEUS-T-038 is a universal USB to RS-232 converter that complies with USB and RS-232 standards without requiring an external power supply. It efficiently converts single-ended USB signals into RS-232 signals.
Featuring zero-delay automatic switching between transmission and reception, the device utilizes a unique I/O circuit to automatically manage data flow direction. This ensures seamless compatibility with all existing communication software and interface hardware. The converter supports point-to-point communication with data rates ranging from 300 bps to 460.8 kbps.
| Standard | USB 1.0/1.1/2.0; EIA RS-232 |
| USB Signals | VCC, DATA+, DATA-, GND, FG |
| RS-232 Signals | DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI |
| Operating Mode | Asynchronous Work, Point-to-point Mode |
| Direction Control | Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction |
| Baud Rate | 300 bps - 460.8 kbps |
| Transmission Distance | Up to 5 m (USB and RS-232) |
| Interface Protection | Surge Protection and ±15 kV ESD Protection |
| Interface Connector | USB Type-C Male (USB), DB9 Male (RS-232) |
| LED Indicators | Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD) |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Cable Length | 1500 ± 30 mm |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% |
| OS Support | Win 2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux |
USB Type-C to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 460,800 bps, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB Type-C to RS-485/422 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps, Supports Connection of up to 32 RS-485 or RS-422 Devices, Transmission Distance: RS-485/422 Port Up to 1,200 m(at 9,600 bps), USB 5 m, Operating Temperature: -40℃ to 85℃.
