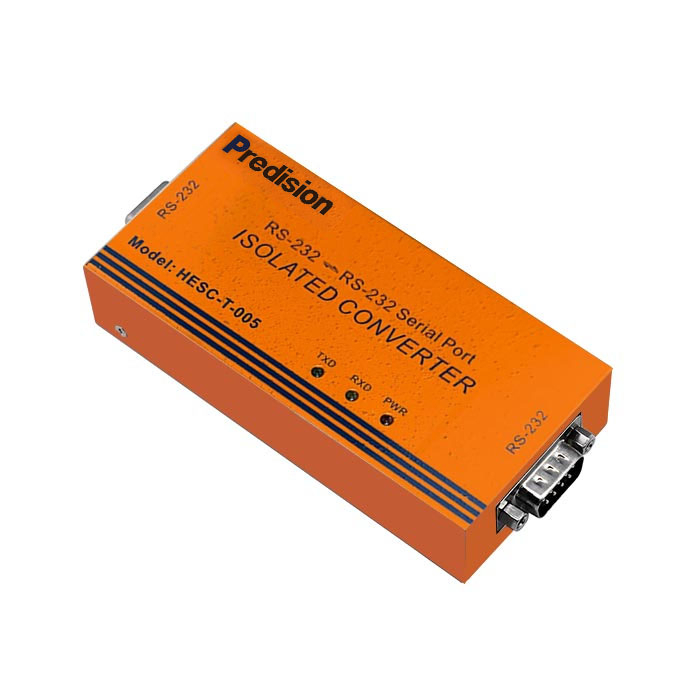

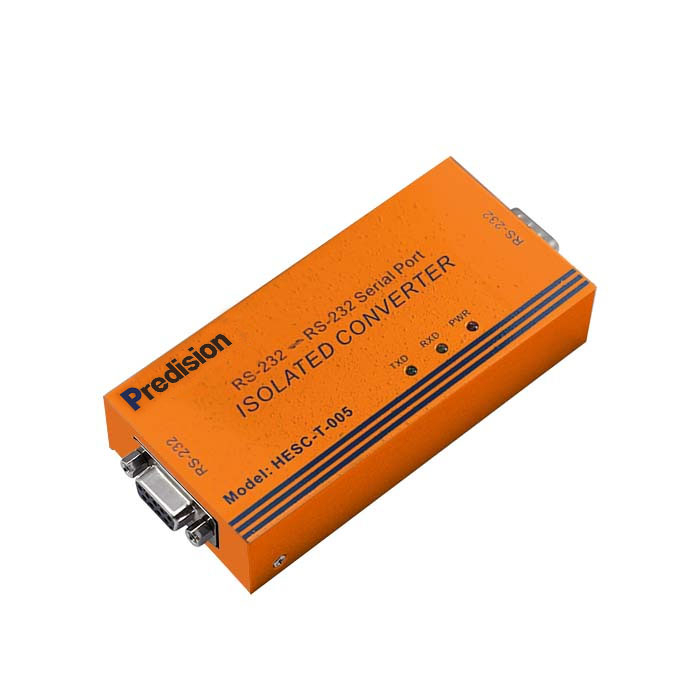

Predision HESC-T-005 RS-232 Photoelectric Isolator
Manufacturer Part Number: HESC-T-005
Brand: Predision
$ 132.00
- Operating Temperature: -40°C to 85°C
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- Baud Rate: 300 - 115,200 bps
See our Shipping Policy for delivery regions and fees
1 Available
The HESC-T-005 is a high-performance RS-232 photoelectric isolator. Utilizing advanced optical isolation technology, it protects RS-232 serial interface devices from harsh environmental damage, such as ground loop voltages, surges, lightning, ESD, hot-plugging, and electromagnetic interference (EMI). This device provides an isolation voltage of up to 2,500 Vrms and a continuous peak voltage difference of 500 VDC. It effectively absorbs ESD and EMI to safeguard the port.
| Standard | EIA RS-232, CCITT V.24 Asynchronous Protocol |
| Interface Connector | DB9 on both sides |
| Transmission Mode | Asynchronous, Full-duplex, Full Transparent |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous) |
| Baud Rate | 300 - 115,200 bps |
| Input Voltage | 9 - 48 VDC |
| Dimension | 113 x 55 x 25 mm |
| Weight | 150g |
| Operating Temperature | -40°C to 85°C |
RS-232 Optical Isolator, Baud Rate: 300 - 57,600 bps, Power: RS-232 Port-Powered (TXD/RTS/DTR), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), Operating Temperature: -40℃ to 85℃.
RS-232 Optical Isolator, Baud Rate: 300 - 19,200 bps, Power: RS-232 Port-Powered (TXD/RTS/DTR), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), Operating Temperature: -40℃ to 85℃.
9-pin RS-232 Optical Isolator (All Signals Supported), Baud Rate: 300 - 115,200 bps, Active, Input Voltage: 9 - 48 VDC, Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), Operating Temperature: -40℃ to 85℃.
