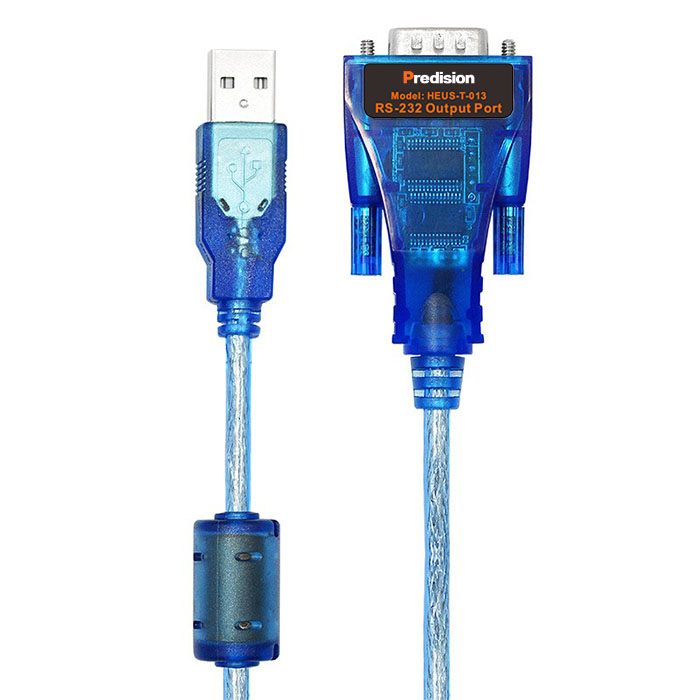

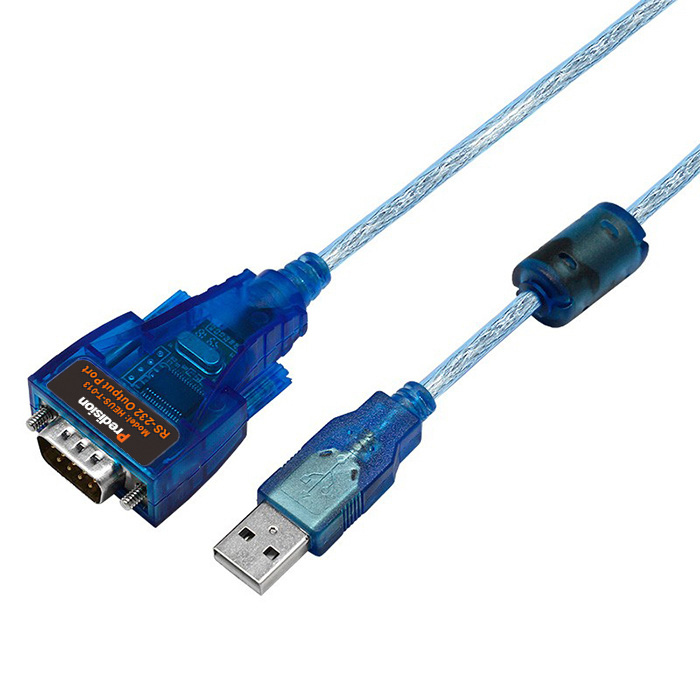

Predision HEUS-T-013 USB to RS-232 Interface Converter
Manufacturer Part Number: HEUS-T-013
Brand: Predision
$ 9.99$ 49.00
- Operating Temperature: -40°C to 85°C
- ±15 kV ESD Protection
- Baud Rate: 300 - 460,800 bps
- Enclosure: Screw-fixed Plastic Housing
See our Shipping Policy for delivery regions and fees
50 Available
The HEUS-T-013 is a universal, bus-powered USB-to-RS-232 converter that requires no external power supply. Fully compliant with USB and RS-232 standards, it converts single-ended USB signals into RS-232 format. The device features a unique I/O circuit with zero-delay automatic transceiver switching, which manages data flow direction automatically. This plug-and-play converter is compatible with all modern communication software and hardware.
Supporting point-to-point communication with baud rates ranging from 300 to 460,800 bps, the HEUS-T-013 also includes dedicated power and data flow indicators for real-time status monitoring.
| Standard | USB 1.1, 1.0, 2.0; EIA RS-232 |
| USB Signals | VCC, DATA+, DATA-, GND, FG |
| RS-232 Signal | DCD RXD TXD DTR GND DSR RTS CTS RI |
| Operating Mode | Asynchronous, Point-to-point Mode |
| Direction Control | Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction |
| Baud Rate | 300 bps to 460.8 Kbps |
| Interface Protection | ±15 kV ESD Protection |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD), and Receive (RXD) |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Dimension | 1530 ×33 × 16 mm |
| Operating Temperature | -40°C to 85°C; Relative Humidity: 5% to 95% |
| OS Support | Windows 95/98/2000/2008/xp/Vista/win7/8/8.1/10, IMAG |
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD, Operating Temperature: –40℃ to 85℃.
USB to RS-232 Converter (USB 2.0); 1.5 m Cable; Baud Rate: 300–460,800 bps with Auto-Baud Detection; Transmission Distance: Up to 5m (USB and RS-232); ±15 kV ESD Protection; Operating Temperature: –40°C to 85°C.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 460.8 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 115.2 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Console Cable, 1.5 m, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 2-port RS-232 Converter with Optical Isolation, Aluminum Enclosure, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Surge Protection: 3,000 A (8/20 μs Waveform) on the RS-232 Port, Operating Temperature: -40℃ to 85℃.
USB to 4-port RS-232 Converter (USB 2.0), Screw-Fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 8-port RS-232 Serial Converter (USB 2.0), 1U Rack-Mount Metal Enclosure, Power Input: 220 V AC, 50 Hz, Baud Rate: 300 bps - 921.6 Kbps with Auto-Baud Detection, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
