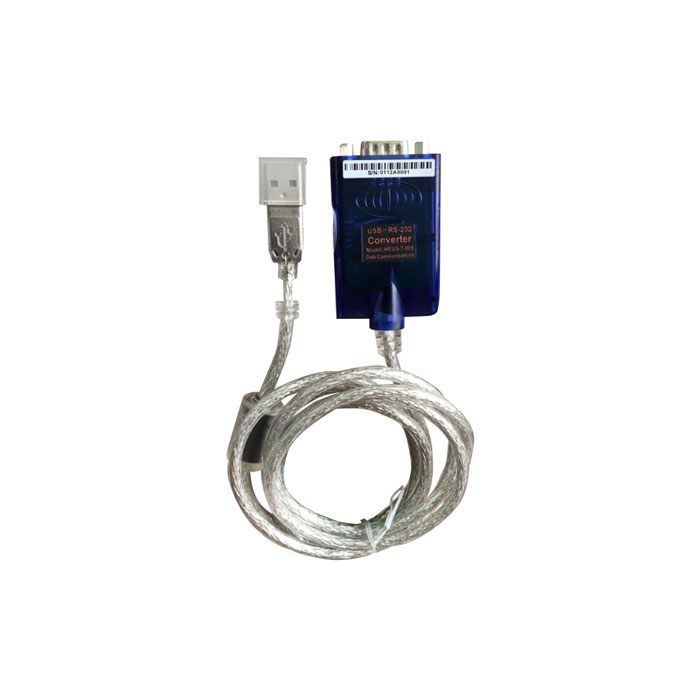

Name: Predision HEUS-T-005 USB to RS-232 Converter
Brand: Predision
Price: 39.00 USD
Availability: OutOfStock

account&orders

Home

Predision HEUS-T-005 USB to RS-232 Converter

Manufacturer Part Number: HEUS-T-005

Brand: Predision

$ 39.00

Operating Temperature: -40°C to 85°C
±15 kV ESD Protection
Baud Rate: 300 - 460,800 bps

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HEUS-T-005 is a universal USB to RS-232 converter compliant with USB and RS-232 standards. This bus-powered device requires no external power source and seamlessly converts USB signals into RS-232 signals.

To ensure robust performance, the HEUS-T-005 features integrated zero-delay automatic send/receive functionality and a unique I/O circuit that automatically manages data flow direction. Combined with its Plug & Play capability, these features ensure full compatibility with all modern communication software and hardware.

The HEUS-T-005 supports a wide range of baud rates from 300 to 460,800 bps. Integrated power and data flow indicators provide real-time status monitoring for all communication activity.

Standard	Complies with USB 1.1, 1.0, 2.0, EIA RS-232 Standards
USB Port	USB Bus-powered; ±15 kV ESD Protection
USB Signals	VCC, DATA-, DATA+, GND, FG
RS-232 Signals	TXD, RXD, CTS, RTS
Operating Mode	Asynchronous, Point-to-point Communication
Direction Control	Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction
Baud Rate	300 - 460,800 bps with Auto-Baud Detection
Transmission Distance	Up to 5m (USB and RS-232)
Signal Indicators	Three LEDs for Power (PWR), Transmit (TXD), and Receive (RXD)
Transmission Media	Twisted-pair (UTP) or Shielded Cable (STP)
Dimension	1530 × 36 × 16 mm
Operating Temperature	-40°C to 85°C; Relative Humidity: 5% to 95%
OS Support	Win98/Win2000/WinXP/Vista/Win7/8/8.1/10/Linux etc.

HEUS-T-003

USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.

HEUS-T-005

USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-010

USB to RS-232 Converter (USB 2.0), Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD, Operating Temperature: –40℃ to 85℃.

HEUS-T-011

USB to RS-232 Converter (USB 2.0); 1.5 m Cable; Baud Rate: 300–460,800 bps with Auto-Baud Detection; Transmission Distance: Up to 5m (USB and RS-232); ±15 kV ESD Protection; Operating Temperature: –40°C to 85°C.

HEUS-T-012

USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-013

USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 460.8 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-016

USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 115.2 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-020

USB to RS-232 Console Cable, 1.5 m, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.

HEUS-T-021

USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-023

USB to 2-port RS-232 Converter with Optical Isolation, Aluminum Enclosure, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Surge Protection: 3,000 A (8/20 μs Waveform) on the RS-232 Port, Operating Temperature: -40℃ to 85℃.

HEUS-T-024

USB to 4-port RS-232 Converter (USB 2.0), Screw-Fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-026

USB to 8-port RS-232 Serial Converter (USB 2.0), 1U Rack-Mount Metal Enclosure, Power Input: 220 V AC, 50 Hz, Baud Rate: 300 bps - 921.6 Kbps with Auto-Baud Detection, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.

Driver： Predision_USB_to_Serial_Converter_HEUS-T-005_Driver_EN.zip

Datasheet ： Predision_USB_to_Serial_Converter_HEUS-T-005_DS_EN.pdf

Quick Installation Guide： Predision_USB_to_Serial_Converter_HEUS-T-005_QIG_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
