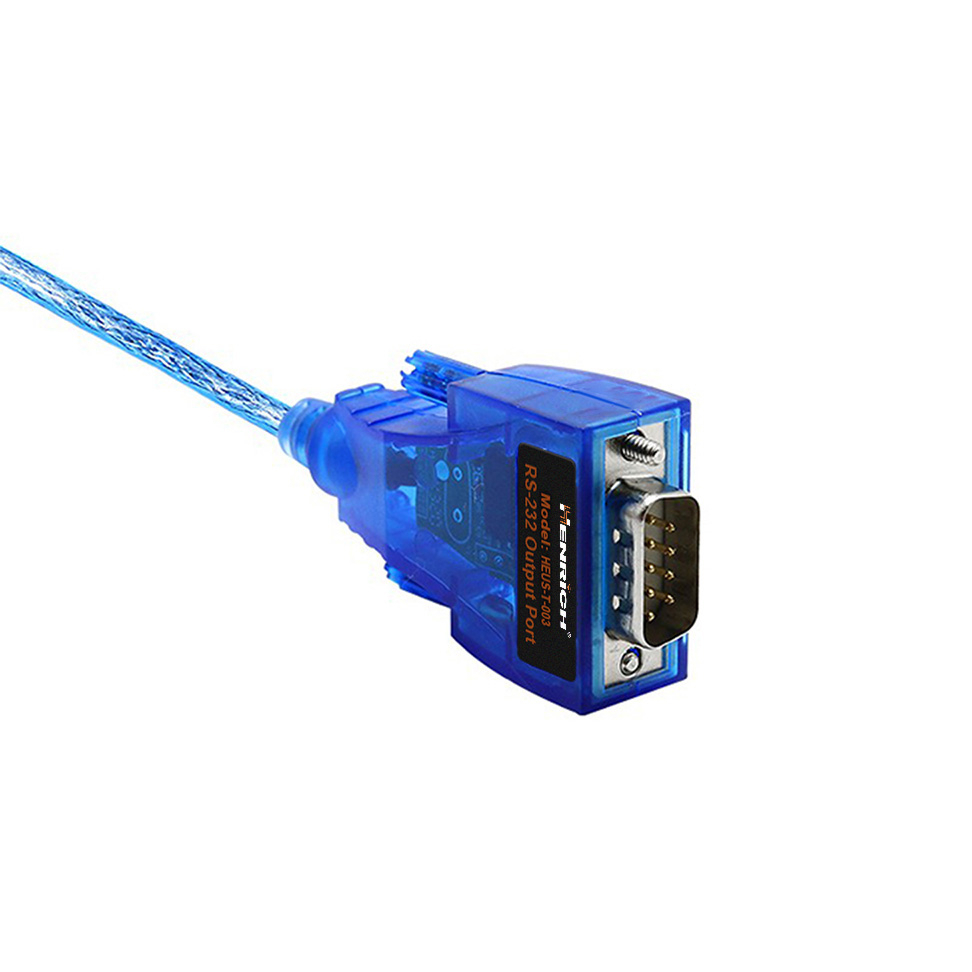

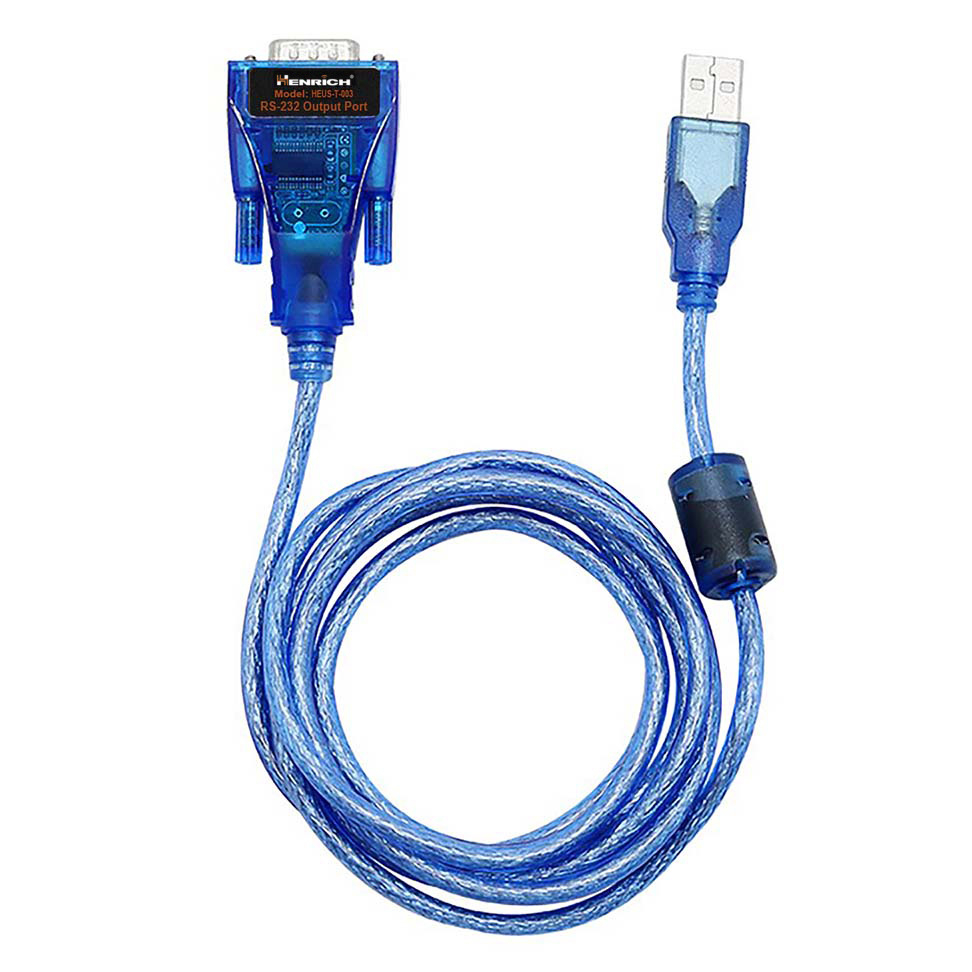

Henrich HEUS-T-003 Industrial USB to RS-232 Converter
Manufacturer Part Number: HEUS-T-003
Brand: Henrich
$ 34.00
- Operating Temperature: -25°C to 70°C
- ±15 kV ESD Protection
- Baud Rate: 300 - 115,200 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HEUS-T-003 is a universal USB to RS-232 converter compliant with both USB and RS-232 standards. This bus-powered device requires no external power source and seamlessly converts USB signals into RS-232 signals.
To ensure robust performance, the HEUS-T-003 features integrated zero-delay automatic send/receive functionality and a unique I/O circuit that automatically controls the data flow direction. Combined with its Plug & Play capability, these features ensure full compatibility with all modern communication software and hardware.
The HEUS-T-003 supports baud rates ranging from 300 to 115,200 bps. Integrated power and data flow indicators provide real-time status monitoring for all communication activity.
| Standard | Complies with USB 1.1, 2.0, EIA RS-232 Standards |
| USB Port | USB Bus-powered; ±15 kV ESD Protection |
| USB Signals | VCC, DATA-, DATA+, GND |
| RS-232 Signals | TXD, RXD, CTS, RTS |
| Direction Control | Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction. |
| Baud Rate | 300 - 115,200 bps with Auto-Baud Detection |
| Transmission Distance | 15m for RS-232 Port, 5m for USB Port |
| Operating Voltage | DC 5V ± 0.25V |
| Cable Length | 1500 mm |
| Operating Temperature | -25°C to 70°C; Relative Humidity: 5% to 95% |
| USB Port Static Protection | Contact: 8 kV Air: 15 kV |
| OS Support | Win 98/Win 2000/WinXP/Vista/Win 7/Win 8/Linux etc. |
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD, Operating Temperature: –40℃ to 85℃.
USB to RS-232 Converter (USB 2.0); 1.5 m Cable; Baud Rate: 300–460,800 bps with Auto-Baud Detection; Transmission Distance: Up to 5m (USB and RS-232); ±15 kV ESD Protection; Operating Temperature: –40°C to 85°C.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 460.8 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 115.2 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Console Cable, 1.5 m, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 2-port RS-232 Converter with Optical Isolation, Aluminum Enclosure, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Surge Protection: 3,000 A (8/20 μs Waveform) on the RS-232 Port, Operating Temperature: -40℃ to 85℃.
USB to 4-port RS-232 Converter (USB 2.0), Screw-Fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 8-port RS-232 Serial Converter (USB 2.0), 1U Rack-Mount Metal Enclosure, Power Input: 220 V AC, 50 Hz, Baud Rate: 300 bps - 921.6 Kbps with Auto-Baud Detection, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
