Name: Predision HEUS-T-020 USB to RS-232 Console Cable
Brand: Predision
Price: 50.00 USD
Availability: OutOfStock

account&orders

Home

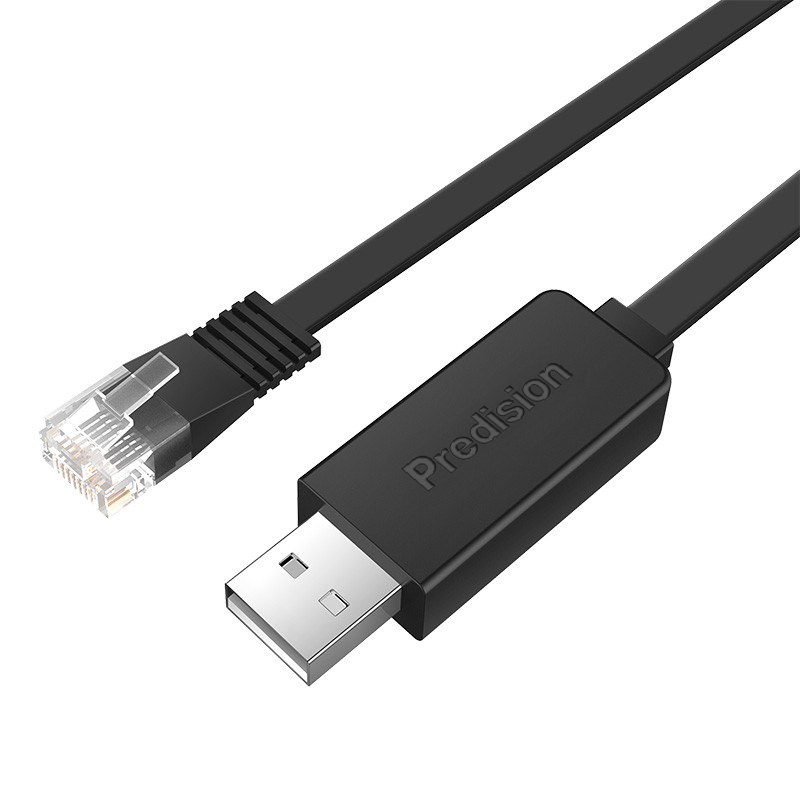

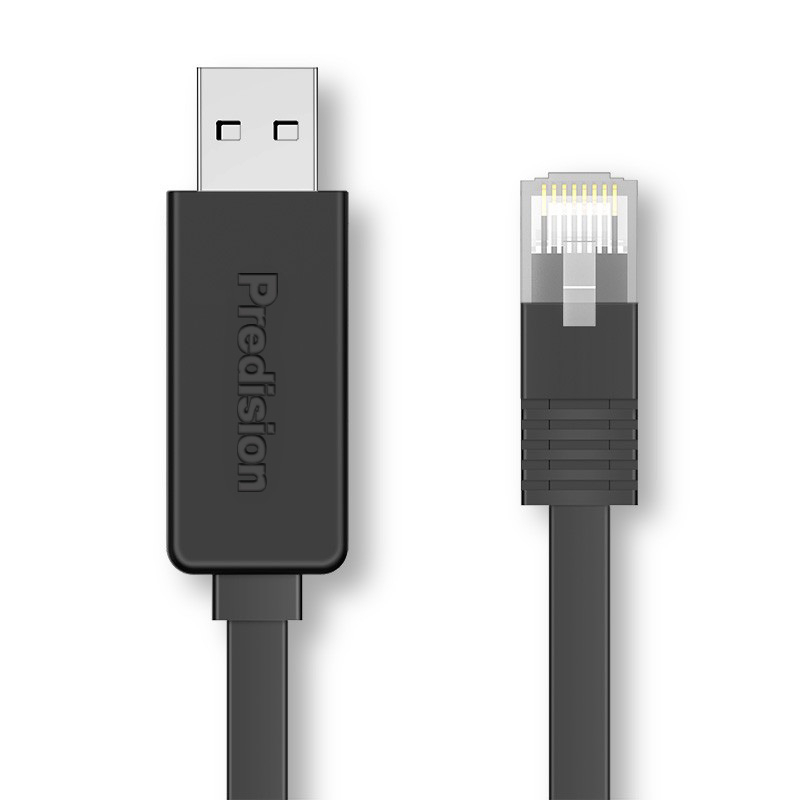

Predision HEUS-T-020 USB to RS-232 Console Cable

Manufacturer Part Number: HEUS-T-020

Brand: Predision

$ 50.00

Operating Temperature: -40°C to 85°C
±15 kV ESD Protection
Baud Rate: 300 - 460,800 bps
RJ45 Connector for RS-232 Port

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HEUS-T-020 is a universal, industrial-grade USB to RS-232 converter designed for seamless compatibility with USB and RS-232 standards. As a bus-powered device, it operates without the need for an external power supply, efficiently converting single-ended USB signals into RS-232.

Featuring unique I/O circuitry with zero-delay automatic transceiver technology, the converter intelligently manages data flow direction to ensure true plug-and-play functionality; these features ensure full compatibility with all modern communication software and hardware. The HEUS-T-020 provides reliable connections for point-to-point communication, supporting high-speed data transmission rates from 300–460,800 bps.

Standard	USB 1.1, 1.0, 2.0, RS-232 EIA
USB Signals	VCC, DATA-, DATA+, GND, FG
RS-232 Signals	DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
Operating Mode	Asynchronous, Point-to-point Mode
Direction Control	Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction
Baud Rate	300 - 460,800 bps with Auto-Baud Detection
Transmission Distance	Up to 5 m (USB and RS-232)
Interface Protection	±15 kV ESD Protection
Interface Connector	USB-A Male Connector, RJ45 Connector for RS-232 Port
Transmission Medium	Twisted-pair (UTP) or Shielded Cable (STP)
Cable Length	1500 mm (±20 mm)
Operating Temperature	-40°C to 85°C; Relative Humidity: 5% to 95%
OS Support	Win95/98/2000/2008/XP/Vista/7/8/8.1/10/IMAG

HEUS-T-003

USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.

HEUS-T-005

USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-010

USB to RS-232 Converter (USB 2.0), Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD, Operating Temperature: –40℃ to 85℃.

HEUS-T-011

USB to RS-232 Converter (USB 2.0); 1.5 m Cable; Baud Rate: 300–460,800 bps with Auto-Baud Detection; Transmission Distance: Up to 5m (USB and RS-232); ±15 kV ESD Protection; Operating Temperature: –40°C to 85°C.

HEUS-T-013

USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 460.8 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-016

USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 115.2 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-020

USB to RS-232 Console Cable, 1.5 m, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.

HEUS-T-021

USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-023

USB to 2-port RS-232 Converter with Optical Isolation, Aluminum Enclosure, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Surge Protection: 3,000 A (8/20 μs Waveform) on the RS-232 Port, Operating Temperature: -40℃ to 85℃.

HEUS-T-024

USB to 4-port RS-232 Converter (USB 2.0), Screw-Fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.

HEUS-T-026

USB to 8-port RS-232 Serial Converter (USB 2.0), 1U Rack-Mount Metal Enclosure, Power Input: 220 V AC, 50 Hz, Baud Rate: 300 bps - 921.6 Kbps with Auto-Baud Detection, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.

Driver： Predision_USB_to_Serial_Converter_HEUS-T-020_Driver_EN.zip

Datasheet ： Predision_USB_to_Serial_Converter_HEUS-T-020_DS_EN.pdf

Quick Installation Guide： Predision_USB_to_Serial_Converter_HEUS-T-020_QIG_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
