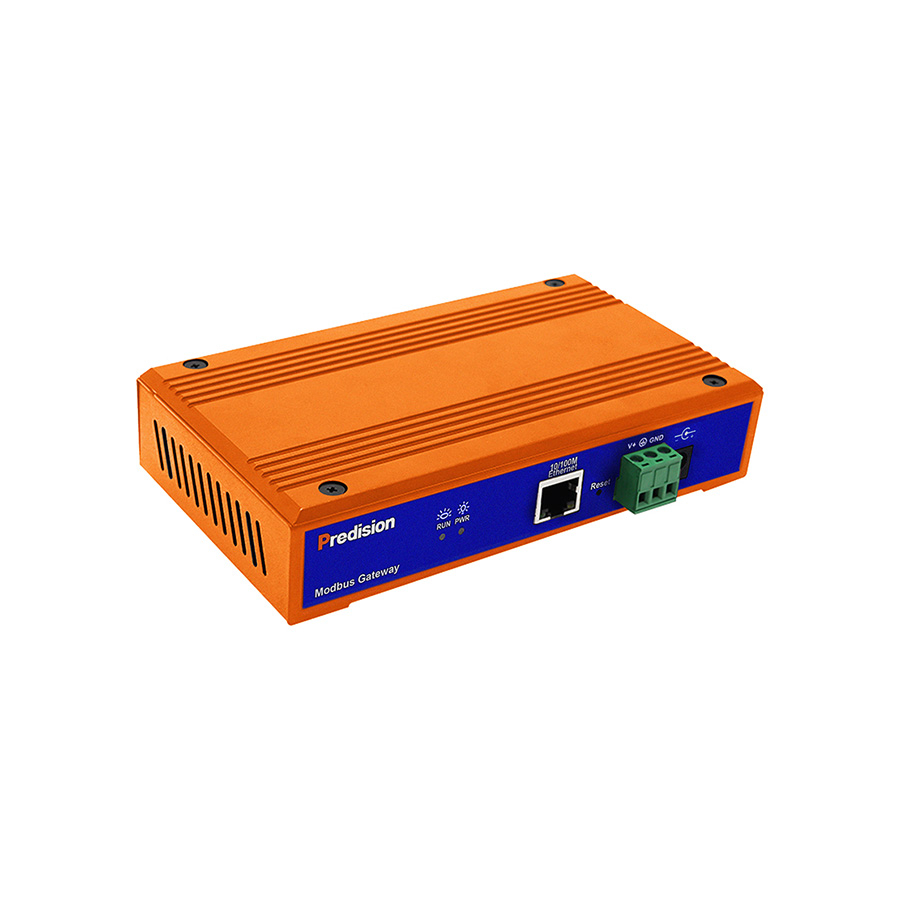

Predision HESM-T-006 10/100M Port to 8-port RS-232/485/422 Modbus Gateway 2

Predision HESM-T-006 10/100M Port to 8-port RS-232/485/422 Modbus Gateway

Manufacturer Part Number: HESM-T-006

Brand: Predision

$ 569.00

8 × RS-232/485/422 Port (3-in-1) + 1 × 10/100M Port
Metal Housing, Desktop or wall Mounting
Operating Temperature: -40°C to 85°C
Power Input: 12 - 48 VDC
Baud Rate: 300 - 921,600 bps
±4 kV ESD Protection for Serial Port, 1,500 VAC Isolation Protection for Ethernet Port
Supports Modbus Master Station Polling
Supports Data Cache at Salve Station which accelerates the Speed of Polling

See our Shipping Policy for delivery regions and fees

HESM-T-006 provides Modbus gateway functionality, which can convert data from multiple cascaded Modbus RTU slaves into Modbus TCP messages, supporting access control by multiple Modbus TCP masters. It can also convert data from multiple Modbus TCP slaves into Modbus RTU messages, supporting access control by multiple Modbus RTU masters.

Interface

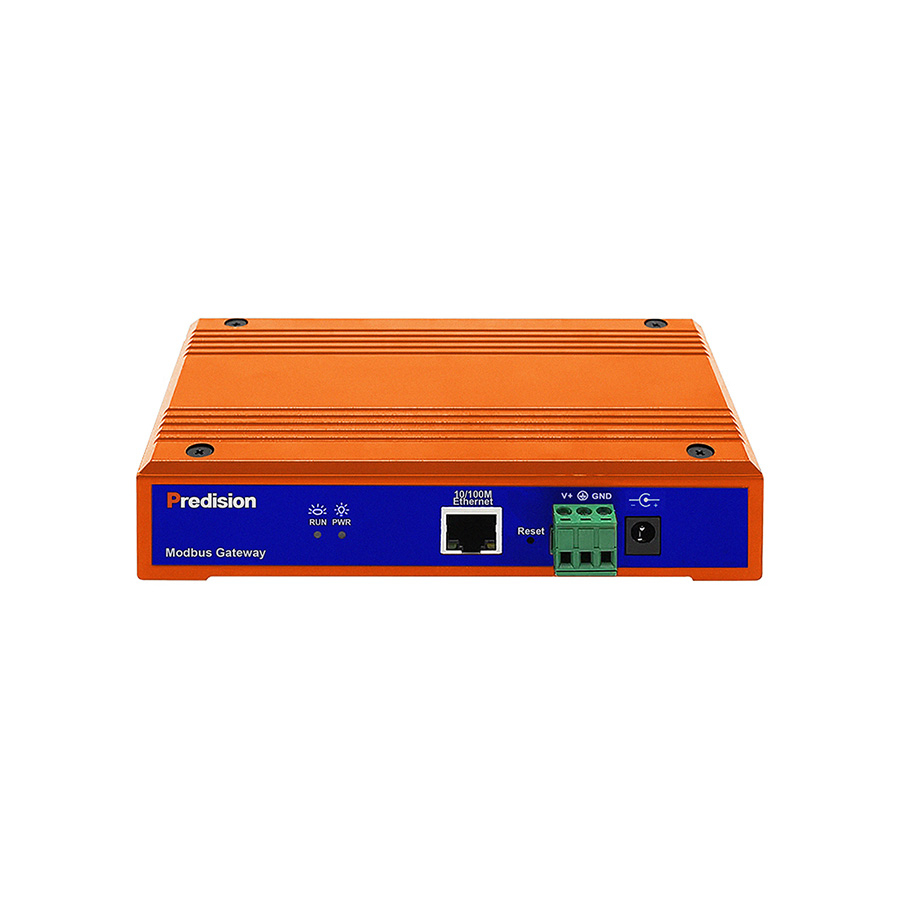

10/100/BaseT(X) Port	1 × 10/100M (RJ45 Connector), with built-in 1.5 kV Isolation Protection

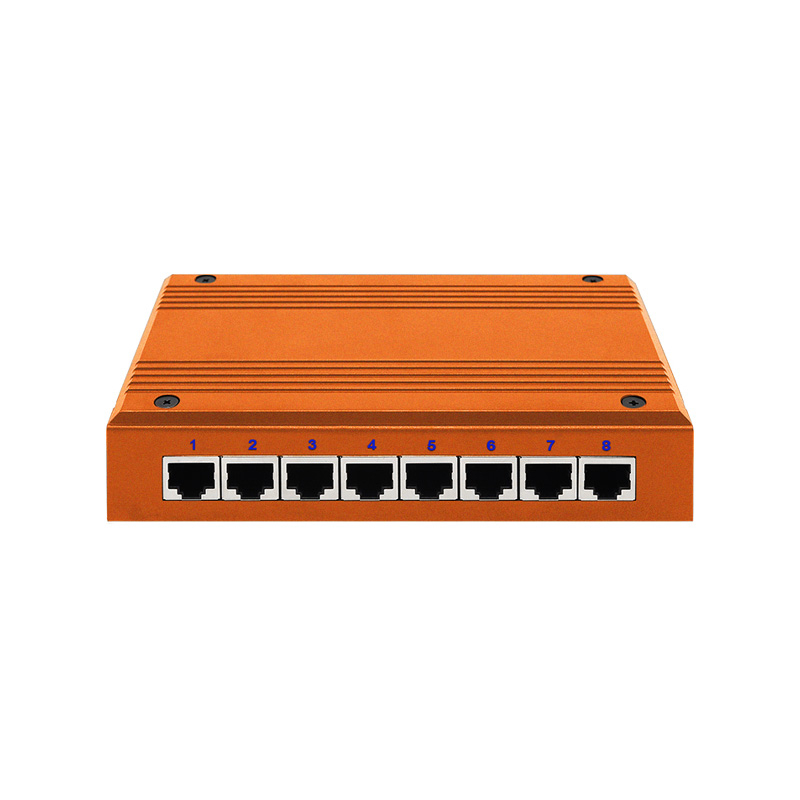

Serial Port Connectors	8 × RS-232/485/422 Port (RJ45 Connector, 3-in-1)
Interface Protection	±4 kV ESD Protection
LED Indicators	PWR, RUN
Baud Rate	300 - 921,600 bps
Data Bits	7, 8
Stop Bits	1, 2
Parity	None, Odd, Even, Mark, Space

Software Features

Supported Protocols	ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, Modbus
Operating Modes	Modbus TCP Server, Modbus TCP Client

Power Parameters

Power Connector	1 × DC Connector 1 × 3-pin 5.08 Terminal Block, with built-in Reverse Polarity Protection
Input Voltage	DC 12 to 48V
Power Consumption	5.4W
Function Buttons	1 × Factory Reset Button: RESET

Physical Characteristics

Housing	Metal Housing, IP30 Protection Level
Installation	Din-rail Mounting
Dimensions (W × H × D)	6.34" × 1.46" × 3.58" (161 × 37 × 91mm)
Net Weight	1.09lb (495g)

Environmental Limits

Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Ambient Relative Humidity	5% - 95% (No Condensation)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	EN61000-4-2(ESD) Contact 6 kV, Air 8 kV EN61000-4-3(RS) 3 V/m EN61000-4-4(EFT) Power 2 kV, Signal 1 kV EN61000-4-5(Surge) Power 2 kV, Signal 1 kV EN61000-4-6(CS) 3V/m
