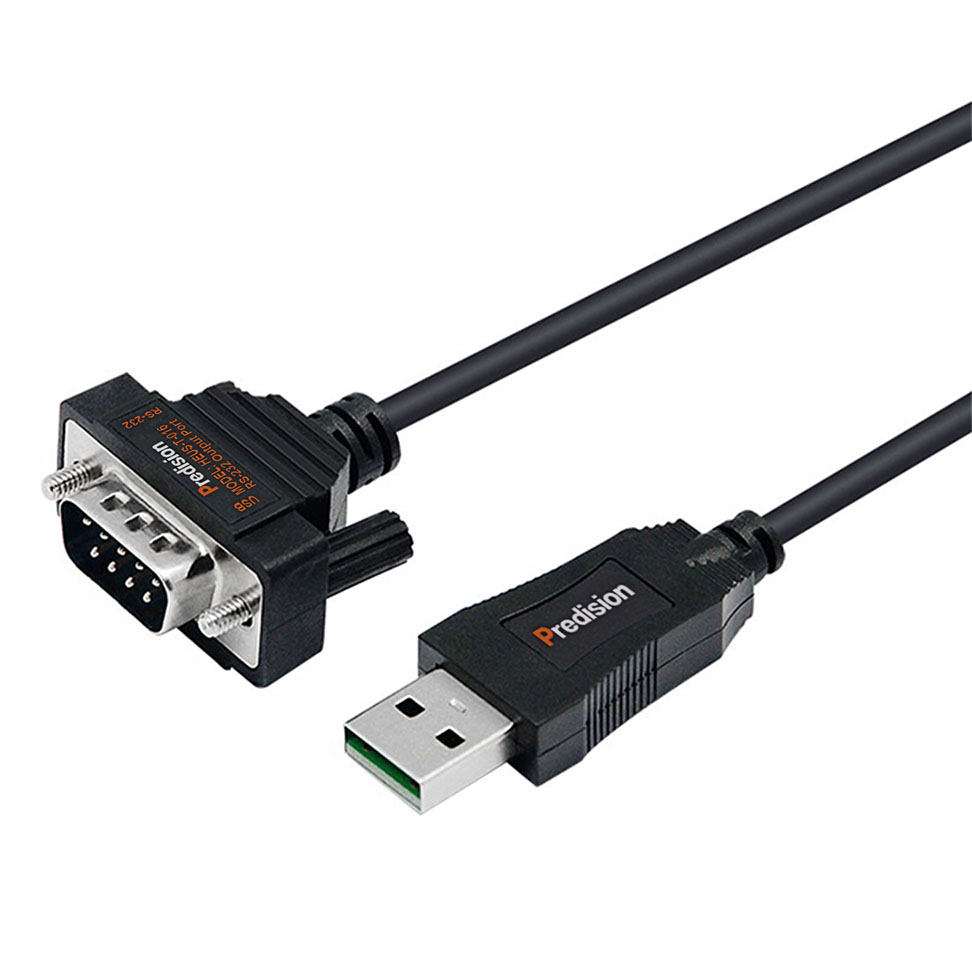

Predision HEUS-T-016 USB to RS-232 Converter
Manufacturer Part Number: HEUS-T-016
Brand: Predision
$ 56.00
- Operating Temperature: -40°C to 85°C
- ± 15kV ESD Protection
- Baud Rate: 300 - 115,200 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HEUS-T-016 is a universal, industrial-grade USB to RS-232 converter designed for seamless compatibility with USB and RS-232 standards. As a bus-powered device, it operates without the need for an external power supply, efficiently converting single-ended USB signals into RS-232.
Featuring unique I/O circuitry with zero-delay automatic transceiver technology, the converter intelligently manages data flow direction to ensure true plug-and-play functionality; the device also supports remote wake-up and power management for enhanced system efficiency. These features ensure full compatibility with all modern communication software and hardware. The HEUS-T-016 provides reliable connections for point-to-point communication, supporting data transmission rates from 300 bps to 115.2 Kbps.
| Standard | USB 1.0, 1.1, 2.0; EIA RS-232 |
| USB Signals | VCC, DATA+, DATA-, GND, FG |
| RS-232 Signal | RXD, TXD, GND, RTS, CTS |
| Operating Mode | Asynchronous, Point-to-point Mode |
| Direction Control | Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction |
| Baud Rate | 300 bps - 115.2 Kbps |

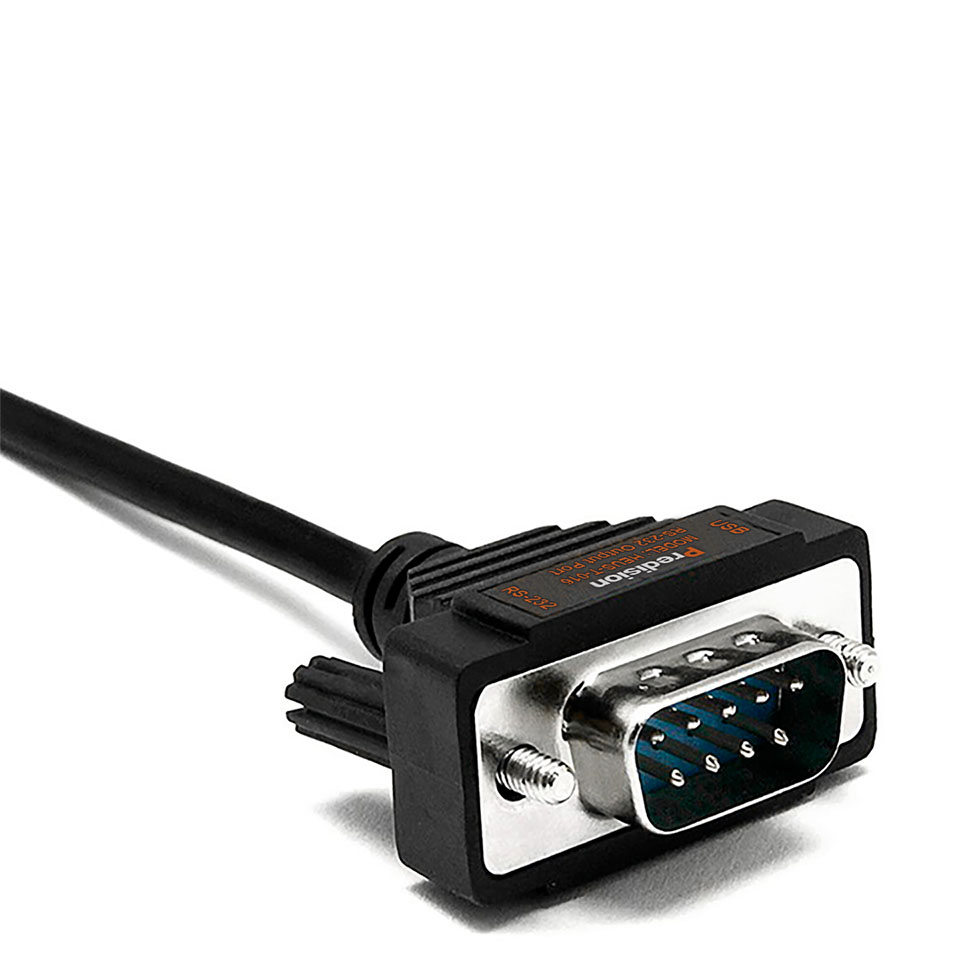

| Interface Connector | Standard DB9 Male Connector (RS-232) |
| Interface Protection | ±15 kV ESD Protection |
| Management | Supports Remote Wake-up and Power Management |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5 - 95% |
| OS Support | Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux etc. |
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD, Operating Temperature: –40℃ to 85℃.
USB to RS-232 Converter (USB 2.0); 1.5 m Cable; Baud Rate: 300–460,800 bps with Auto-Baud Detection; Transmission Distance: Up to 5m (USB and RS-232); ±15 kV ESD Protection; Operating Temperature: –40°C to 85°C.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 460.8 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 115.2 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Console Cable, 1.5 m, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 2-port RS-232 Converter with Optical Isolation, Aluminum Enclosure, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Surge Protection: 3,000 A (8/20 μs Waveform) on the RS-232 Port, Operating Temperature: -40℃ to 85℃.
USB to 4-port RS-232 Converter (USB 2.0), Screw-Fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 8-port RS-232 Serial Converter (USB 2.0), 1U Rack-Mount Metal Enclosure, Power Input: 220 V AC, 50 Hz, Baud Rate: 300 bps - 921.6 Kbps with Auto-Baud Detection, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
