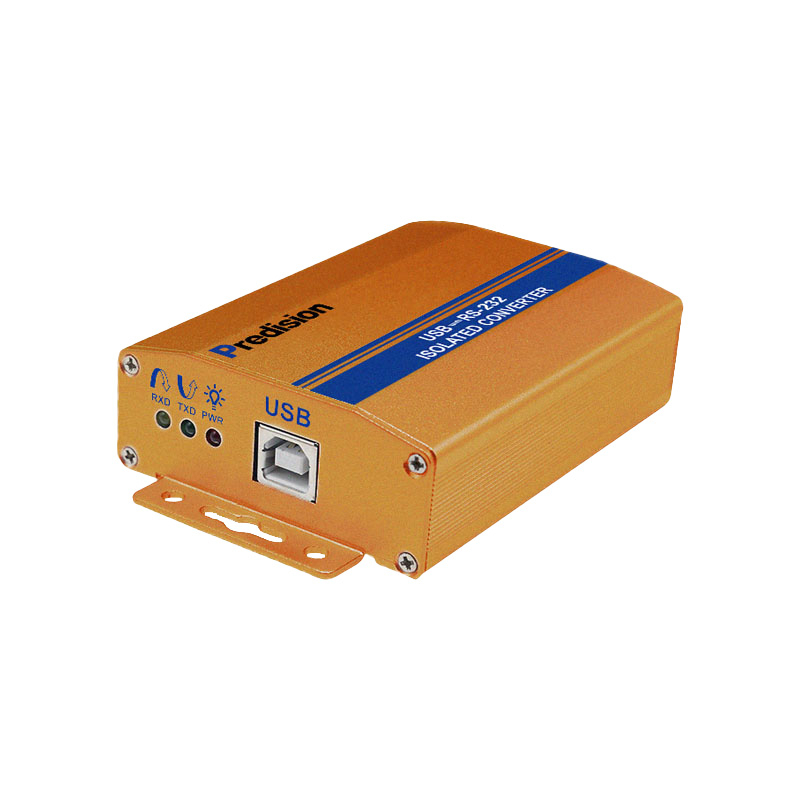

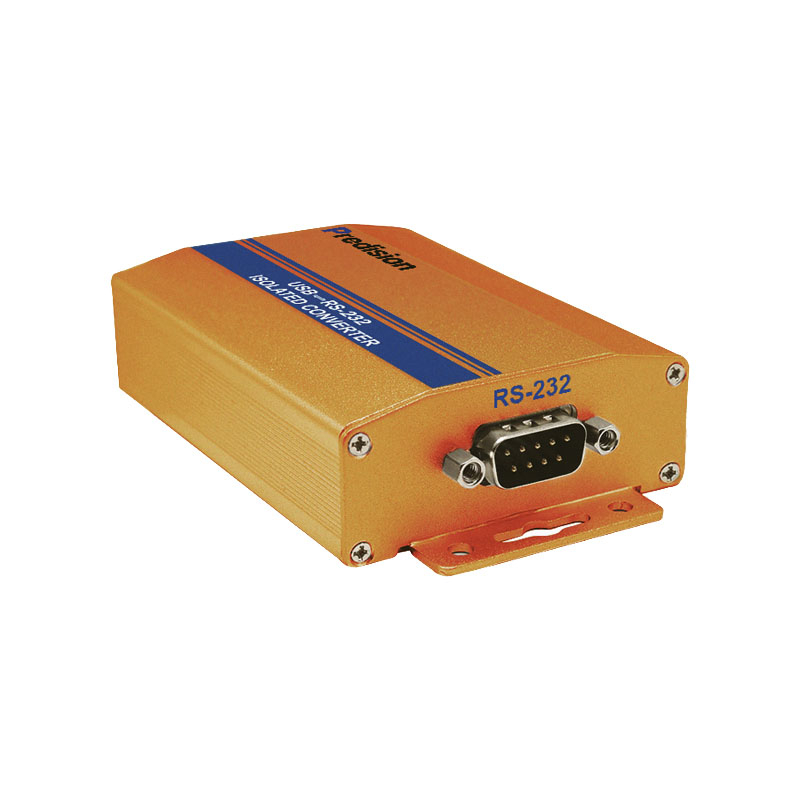

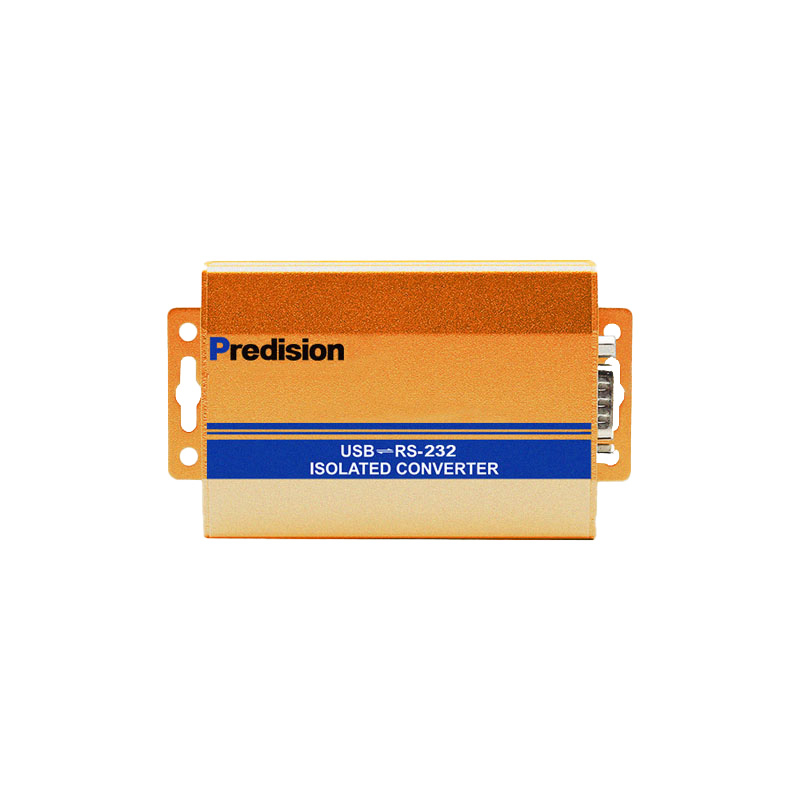

Predision HEUS-T-010 USB to RS-232 Converter
Manufacturer Part Number: HEUS-T-010
Brand: Predision
$ 180.00
- Operating Temperature: –40°C to 85°C
- 500 W Surge Protection for USB Port, ±15 kV ESD and 600 W Surge Protection for RS-232 Port
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), DC/DC Module
- Baud Rate: 300 - 460,800 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HEUS-T-010 is an industrial-grade, universal USB to RS-232 converter featuring 2,500 Vrms photoelectric isolation. Fully compatible with USB and RS-232 standards, this bus-powered device converts single-ended USB signals into RS-232 without the need for an external power supply.
Utilizing unique I/O circuitry with zero-delay automatic transceiver technology, the converter intelligently manages data flow direction. To ensure maximum reliability, the RS-232 interface is equipped with high-performance TVS (Transient Voltage Suppressor) diodes and gas discharge tubes. This protection system effectively suppresses lightning and ESD—providing 600W of surge protection per wire—while minimizing inter-electrode capacitance to maintain high-speed signal integrity.
| Standard | Complies with USB 1.0, 1.1, 2.0 Standards and EIA RS-232 Standard |
| USB Signals | VCC, DATA-, DATA+, GND, FG |
| RS-232 Signals | RXD, TXD, GND |
| Operating Mode | Asynchronous, Point-to-point Mode |
| Direction Control | Integrated Automatic Data Flow Control technology automatically detects and manages the data transmission direction |
| Baud Rate | 300 - 460,800 bps with Auto-Baud Detection |
| Interface Protection | USB Port 500W Surge Protection; RS-232 Port ±15kV ESD and 600W Surge Protection |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous), DC/DC Module |
| Transmission Distance | Up to 5m (USB and RS-232) |
| Interface Connector | USB Type-A Male, DB9 Male Connector |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD), and Receive (RXD) |
| Transmission Medium | Twisted-pair (UTP) or Shielded Cable (STP) |
| Dimension | 92 × 64 × 25 mm |
| Operating Temperature | –40°C to 85°C |
| Relative Humidity | 5 - 95% |
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
USB to RS-232 Converter, Screw-fixed Plastic Housing, 1.5 m Cable, USB 2.0 Full Speed, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Photoelectric Isolated, Aluminum Enclosure, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD, Operating Temperature: –40℃ to 85℃.
USB to RS-232 Converter (USB 2.0); 1.5 m Cable; Baud Rate: 300–460,800 bps with Auto-Baud Detection; Transmission Distance: Up to 5m (USB and RS-232); ±15 kV ESD Protection; Operating Temperature: –40°C to 85°C.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 bps - 460.8 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Converter (USB 2.0), 1.5 m Cable, Baud Rate: 300 - 115.2 Kbps, USB Port-powered, ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to RS-232 Console Cable, 1.5 m, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40°C to 85°C.
USB to RS-232 Converter (USB 2.0), Screw-fixed Plastic Housing, Baud Rate: 300 - 460,800 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 2-port RS-232 Converter with Optical Isolation, Aluminum Enclosure, Baud Rate: 300 - 115,200 bps with Auto-Baud Detection, Surge Protection: 3,000 A (8/20 μs Waveform) on the RS-232 Port, Operating Temperature: -40℃ to 85℃.
USB to 4-port RS-232 Converter (USB 2.0), Screw-Fixed Plastic Housing, 1.5 m Cable, Baud Rate: 300 - 921,600 bps with Auto-Baud Detection, Transmission Distance: Up to 5 m (USB and RS-232), ±15 kV ESD Protection, Operating Temperature: -40℃ to 85℃.
USB to 8-port RS-232 Serial Converter (USB 2.0), 1U Rack-Mount Metal Enclosure, Power Input: 220 V AC, 50 Hz, Baud Rate: 300 bps - 921.6 Kbps with Auto-Baud Detection, ±15 kV ESD Protection, Operating Temperature: -25℃ to 70℃.
