Predision HESC-T-020 Port-powered Photoelectric Isolated RS-232 to RS-485/422 Converter

Manufacturer Part Number: HESC-T-020

Brand: Predision

$ 89.00

Operating Temperature: -25°C to 70°C
±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire
Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HESC-T-020 is an industrial-grade converter compatible with RS-232C, RS-422, and RS-485 standards. It is engineered to seamlessly convert single-ended RS-232 signals into balanced differential RS-422 or RS-485 signals. Featuring built-in optical isolation, the device provides up to 2,500 Vrms of isolation voltage to protect your sensitive equipment from ground loops and electrical transients.

Equipped with cutting-edge Transient Voltage Suppressors (TVS), the HESC-T-020 is purpose-built to safeguard RS-422/485 interfaces. It effectively suppresses lightning strikes and ESD, providing 600W of lightning surge protection per wire, along with protection against surge voltages and transient overvoltages. Furthermore, its ultra-low inter-electrode capacitance ensures high-speed data transmission without signal degradation.

The HESC-T-020 supports both point-to-point and point-to-multipoint configurations. In multi-point mode, a single converter can support up to 32 RS-422 or RS-485 devices.

Standard	Complies with EIA/TIA RS-232C, RS-485/422 Standards

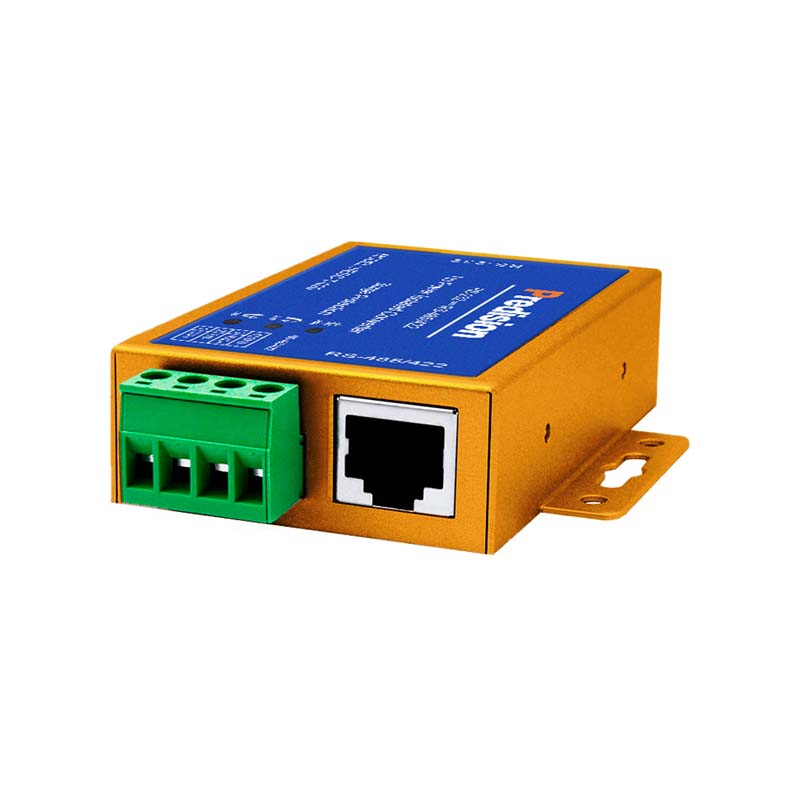

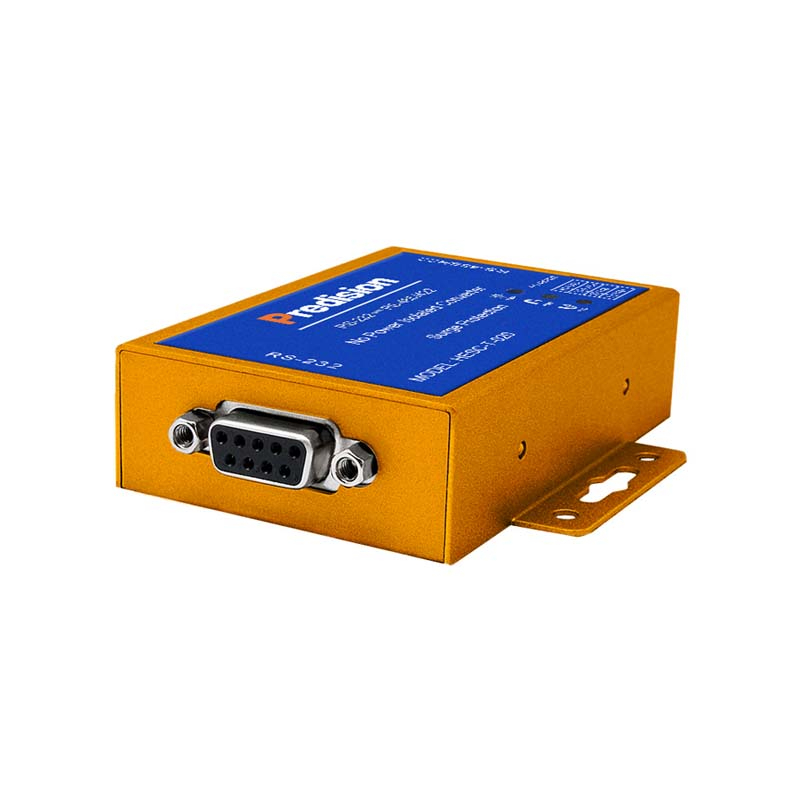

Connector	DB9 Female Input (RS-232), RJ45 Connector and 6-pin Terminal Block (RS-485/422)
Interface Protection	±15 kV ESD Protection (RS-232), 600 W Lighting and Surge Protection per wire (RS-485/422)
Operating Mode	Asynchronous Half-duplex or Full-duplex
Isolation Voltage	2,500 Vrms, 500 VDC (Continuous)
Signal Indicators	Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD)
Transmission Media	Twisted-pair (UTP) or Shielded Cable (STP)
Transmission Distance	1,200m (RS-485/422); 5m (RS-232)
Dimension	93 × 74 × 22 mm
Operating Temperature	-25°C to 70°C
Relative Humidity	5 - 95%

HESC-T-018

RS-232 to RS-485/422 Converter, with 5-pin Terminal Block, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Power: Port-Powered, Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection, Transmission Distance: 1,200m (RS-485/422), 5m (RS-232), Operating Temperature: -25℃ to 70℃.

HESC-T-019

RS-232 to RS-485/422 Converter, with 6-pin Terminal Block, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Power: Port-Powered, Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection, Transmission Distance: 1,200m (RS-485/422), 5m (RS-232), 2kA Lightning Surge Protection, Operating Temperature: -40℃ to 85℃.

HESC-T-020

RS-232 to RS-485/422 Port-Powered Converter with Photoelectric Isolation, Aluminum Enclosure, Wall Mounted, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -25℃ to 70℃.

HESC-T-021

RS-232 to RS-485/422 Port-Powered Converter with Photoelectric Isolation, Plastic Housing, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-022

RS-232 to RS-485/422 Port-Powered Photoelectric Isolated Converter with 10-pin Terminal Block (RS-485/422), Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-023

RS-232 to RS-485/422 Converter, Metal Housing, Wall Mounted, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), 600 W Lighting and Surge Protection per wire, Operating Temperature: -25℃ to 70℃.

HESC-T-024

RS-232 to RS-485/422 Photoelectric Isolated Converter, Metal Housing, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -25℃ to 70℃.

HESC-T-025

Industrial RS-232 to RS-485/422 Photoelectric Isolated Converter, Baud Rate: 300 bps - 115.2 kbps, Supports Connection of up to 128 RS-485 or RS-422 Devices, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-026

Industrial RS-232 to RS-485/422 Photoelectric Isolated Converter, Baud Rate: 300 bps - 115.2 kbps, Supports Connection of up to 128 RS-485 or RS-422 Devices, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 1,500 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.

HESC-T-027

RS-232 to RS-485/422 Photoelectric Isolated Converter, Wall Mounted, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -25℃ to 70℃.

HESC-T-028

Industrial RS-232 to RS-485/422 Converter with Optical Isolation, Baud Rate: 300 - 115,200 bps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -40℃ to 85℃.
