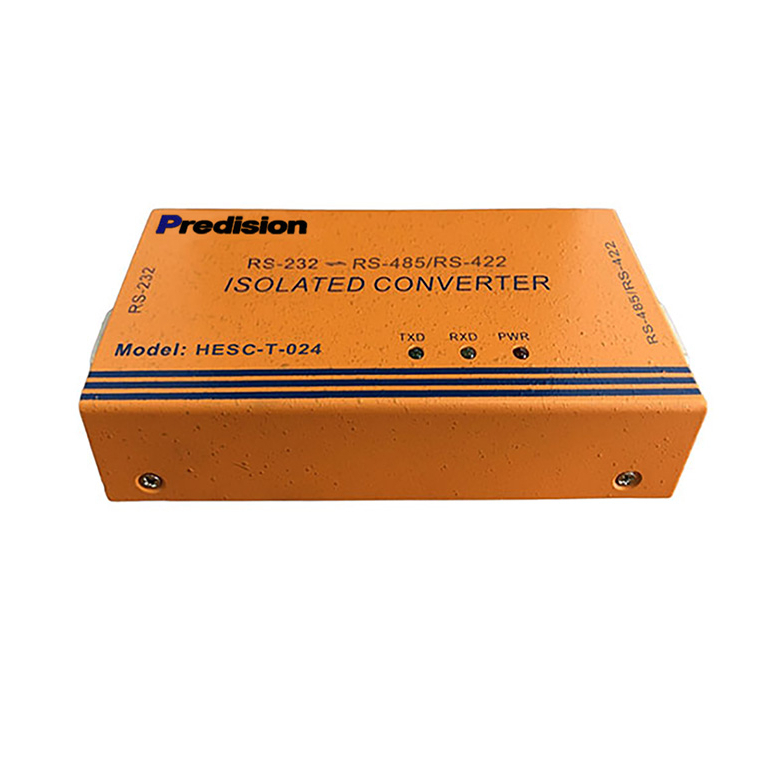

Predision HESC-T-024 Photoelectric Isolated RS-232 to RS-485/422 Converter
Manufacturer Part Number: HESC-T-024
Brand: Predision
$ 137.00
- Operating Temperature: -25°C to 70°C
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- 600 W Lighting and Surge Protection per wire (RS-485/422)
- Baud Rate: 300 bps-115.2 kbps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HESC-T-024 is a high-performance photoelectric isolated interface converter, fully compliant with RS-232C, RS-422, and RS-485 standards. It effectively converts single-ended RS-232 signals into balanced differential RS-422 or RS-485 signals. The device features an integrated photoelectric isolator capable of providing up to 2,500 Vrms of isolation voltage, effectively shielding your equipment from ground loops and electrical noise. For port-level safety, the RS-485/422 interfaces are equipped with advanced TVS (Transient Voltage Suppressors). These diodes provide 600W of lightning and surge protection per wire, clamping instantaneous over-voltage from all sources. Furthermore, low inter-electrode capacitance ensures high-speed, reliable data transmission across all ports.
This converter is designed for Plug & Play efficiency, featuring built-in zero-delay automatic receive/transmit switching. The unique I/O circuitry automatically manages data flow direction without the need for handshake signals (RTS, DTR) or manual jumper settings. It is fully compatible with modern communication software and hardware, requiring no modifications to legacy RS-232 configurations.
The HESC-T-024 supports point-to-multipoint configurations, allowing up to 32 RS-422 or RS-485 devices to be connected simultaneously on a single network.
| Standard | EIA/TIA RS-232C, RS-485/422 |
| Electrical Interface | DB9 Female (RS-232), DB9 Male Connector (RS-485/422) |
| Interface Protection | 600 W Lighting and Surge Protection per wire (RS-485/422) |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous) |
| Operating Mode | Asynchronous Half-duplex or Full-duplex |
| Signal Indicators | Three LEDs for Power (PWR), Transmit (TXD) and Receive (RXD) |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Transmission Distance | 1,200m (RS-485/422); 5m (RS-232) |
| Dimension | 113 × 55 × 25 mm |
| Operating Temperature | -25°C to 70°C |
| Relative Humidity | 5 - 95% |
RS-232 to RS-485/422 Converter, with 5-pin Terminal Block, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Power: Port-Powered, Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection, Transmission Distance: 1,200m (RS-485/422), 5m (RS-232), Operating Temperature: -25℃ to 70℃.
RS-232 to RS-485/422 Converter, with 6-pin Terminal Block, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Power: Port-Powered, Jumper-free Asynchronous Full-Duplex (RS-422) or Half-Duplex (RS-485) with Intelligent Mode Detection, Transmission Distance: 1,200m (RS-485/422), 5m (RS-232), 2kA Lightning Surge Protection, Operating Temperature: -40℃ to 85℃.
RS-232 to RS-485/422 Port-Powered Converter with Photoelectric Isolation, Aluminum Enclosure, Wall Mounted, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -25℃ to 70℃.
RS-232 to RS-485/422 Port-Powered Converter with Photoelectric Isolation, Plastic Housing, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.
RS-232 to RS-485/422 Port-Powered Photoelectric Isolated Converter with 10-pin Terminal Block (RS-485/422), Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), ±15 kV ESD Protection, 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.
RS-232 to RS-485/422 Converter, Metal Housing, Wall Mounted, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), 600 W Lighting and Surge Protection per wire, Operating Temperature: -25℃ to 70℃.
RS-232 to RS-485/422 Photoelectric Isolated Converter, Metal Housing, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (RS-485/422); 5m (RS-232), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -25℃ to 70℃.
Industrial RS-232 to RS-485/422 Photoelectric Isolated Converter, Baud Rate: 300 bps - 115.2 kbps, Supports Connection of up to 128 RS-485 or RS-422 Devices, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.
Industrial RS-232 to RS-485/422 Photoelectric Isolated Converter, Baud Rate: 300 bps - 115.2 kbps, Supports Connection of up to 128 RS-485 or RS-422 Devices, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 1,500 W Lighting and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.
RS-232 to RS-485/422 Photoelectric Isolated Converter, Wall Mounted, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -25℃ to 70℃.
Industrial RS-232 to RS-485/422 Converter with Optical Isolation, Baud Rate: 300 - 115,200 bps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 600 W Lighting and Surge Protection per wire (RS-485/422), Operating Temperature: -40℃ to 85℃.
