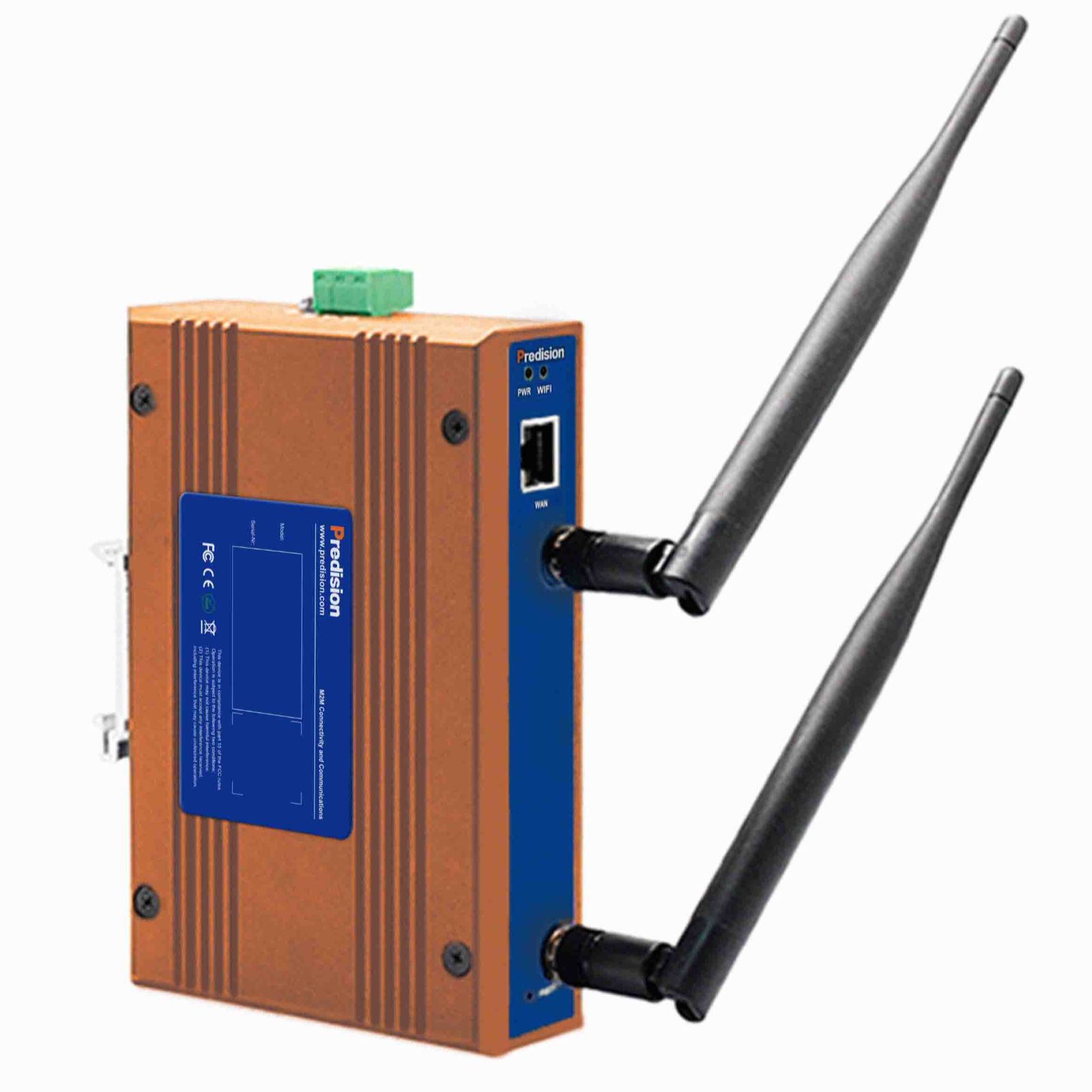

Predision HEAP-T-006 Wireless AP Repeater 1

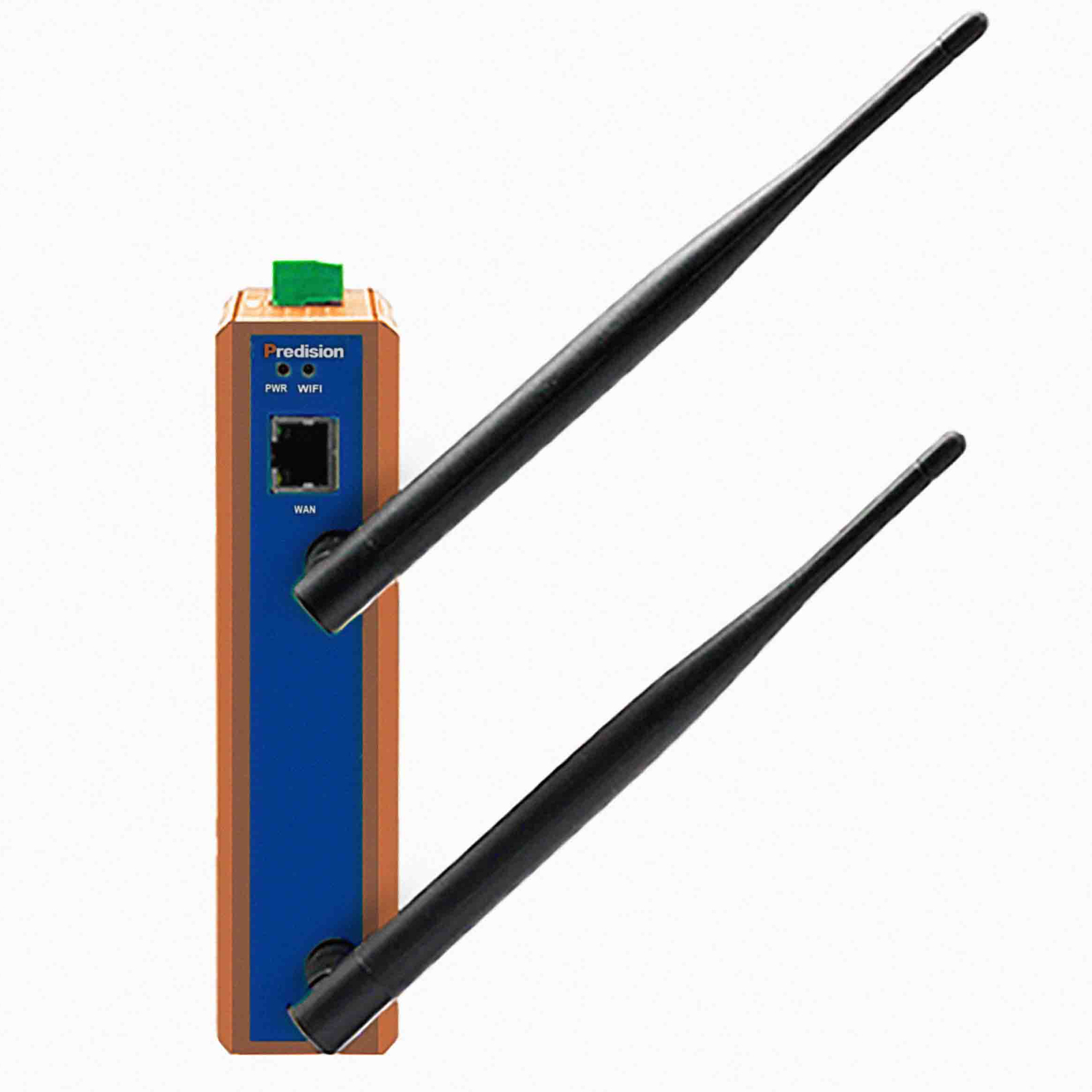

Predision HEAP-T-006 Wireless AP Repeater 2

Predision HEAP-T-006 Wireless AP Repeater

Manufacturer Part Number: HEAP-T-006

Brand: Predision

$ 261.00

Supports IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u
Supports AP/Relay/ISP/Router Mode
Security Protocols: Supports multiple authentication and encryption mechanisms, including TKIP, AES, WEP, WPA-PSK, and WPA2-PSK.
Powered by the Qualcomm QCA series MIPS 24Kc processor, featuring 64KB I-Cache, 32KB D-Cache, and a clock speed of up to 680MHz.

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HEAP-T-006 is an industrial-grade wireless AP repeater utilizing advanced 2T2R 2.4G MIMO technology. Delivering a high-speed bandwidth of up to 300 Mbps, it supports concurrent wireless access for up to 32 terminal devices. It is an ideal solution for robust Wi-Fi coverage in demanding environments such as factories, transportation hubs, shopping malls, and hotels.

Wireless Technology	802.11g (± 1.5dBm)
Equipment Interface	1 x 10/100 Mbps Self-adaptive Wired Network Interface
	1 x Reset Button for Restoring The Factory Settings
	1 x 3P Plug-pull Socket
Antenna	2 pcs, 2.4G Gain: 3dBi TLB High-gain Omni-directional External Rubber Stick Antennas
Power Supply	12 - 24 VDC /1A
RF Characteristics	802.11b/g/n:
	2.4 - 2.4835 GHz
	Optional Korean, Japanese, ETSI, FCC Communication Channels Transmission Speed 300 Mbps
Receiving Sensitivity	802.11n (2.4GHz)	802.11g	802.11b
	-90dBm @ MCS0	- 90dBm @ 6Mbps	- 95dBm @ 1Mbps
	-70dBm @ MCS7	- 72dBm @ 54Mbps	- 90dBm @ 11Mbps
	-90dBm @ MCS8
	-68dBm @ MCS15
	Radio 1 (WLAN1)
Transmission Power	802.11n (2.4GHz)(± 1.5dBm)	802.11g (± 1.5dBm)	802.11b (±1.5dBm)
	20dBm@ MCS0~2/MCS8~10	20dBm @ 6~24Mbps	20dBm @1~11Mbps
	18dBm @ MCS3/MCS11	18dBm @ 36Mbps
	18dBm @ MCS4/MCS12	16dBm @ 48Mbps
	18dBm @ MCS5/MCS13	16dBm @ 54Mbps
	18dBm @ MCS6/MCS14
	18dBm @ MCS7/MCS15
Dimension	150 × 100 × 37 mm
Operating Temperature	-20℃ to 70℃
Net Weight	700g

HEAP-T-004

Wireless Carrier 433MHz to RS-232/485/422, Metal Enclosure, Wall Mounted, Power Supply: 9 - 30 VDC, Transmission Distance: Wireless 433MHz Carrier 300 m (Open Space), RS-232 5 m (1,200 - 38,400 bps) RS-485/422 1200 m (1,200 - 115,200 bps), Operating Temperature: -10℃ to 70℃.

HEAP-T-005

Zigbee 2.4G to RS-232/485/422 Wireless Data Transmission Converter, Metal Enclosure, Wall Mounted, Power Supply: 9 - 30 VDC, Transmission Distance: Wireless 2.4 GHz Carrier 2,000 m (Open Space); RS-232 5 m(1,200 - 115,200 bps); RS-485/422 1,200m (1,200 - 115,200 bps), Operating Temperature: -25℃ to 70℃.

HEAP-T-006

300 Mbps Wireless AP Repeater, Metal Enclosure, Power Supply: 12 - 24 VDC, Transmission Speed: 300 Mbps, Operating Temperature: -20℃ to 70℃.

HEAP-T-007

Wireless AP Receiver, 1×10/100Mbps WAN, 2×10/100Mbps LAN, Power Supply: 12 - 48 VDC, AP, Relay, ISP, and Router modes, Transmission Speed: 150 Mbps.
