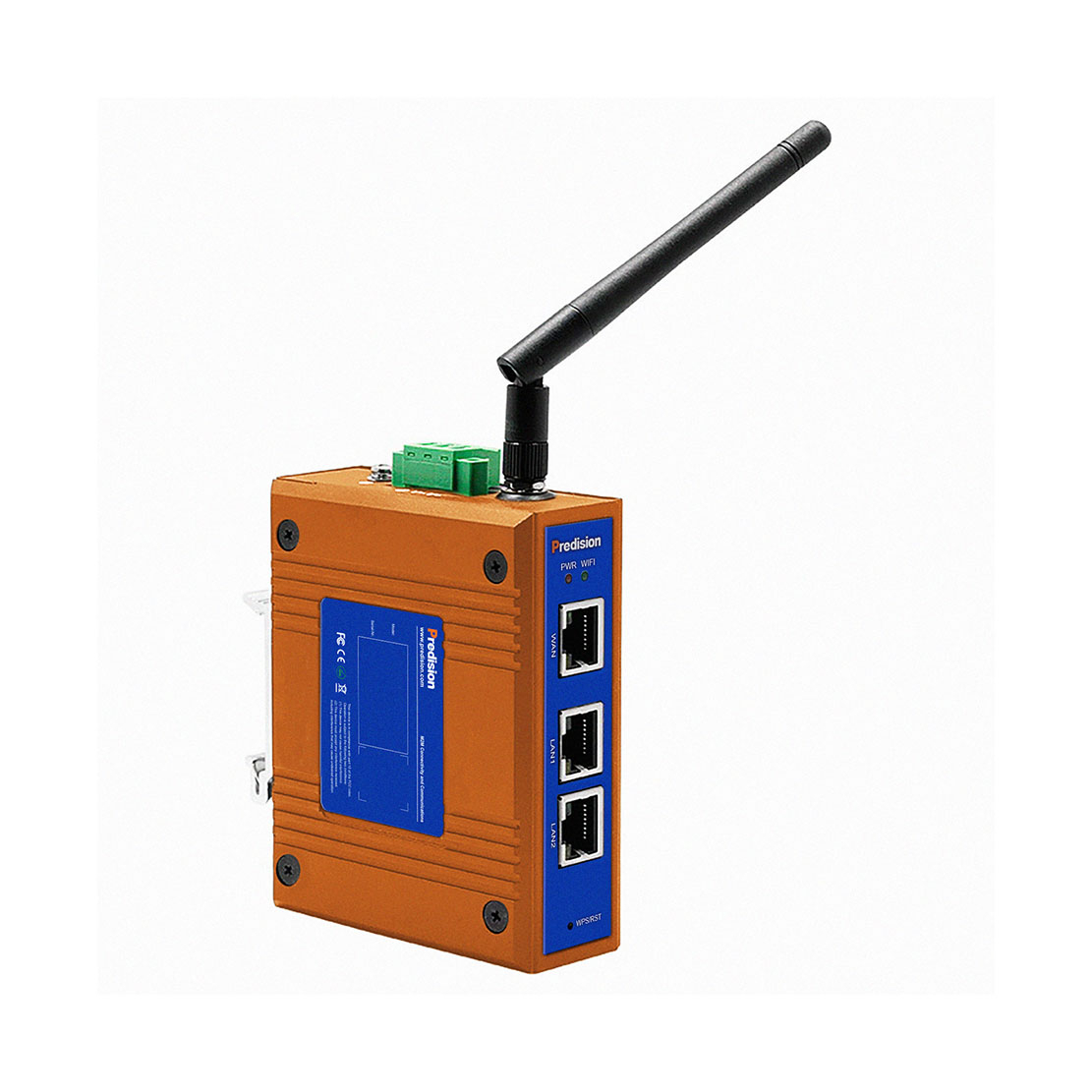

Predision HEAP-T-007 Wireless AP Receiver

Manufacturer Part Number: HEAP-T-007

Brand: Predision

$ 251.00

Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Standards
Engine: Qualcomm QCA series (MIPS 24Kc) Processor
Cache: 64KB I-Cache and 32KB D-Cache
Multi-Mode: Supports AP, Relay, ISP, and Router modes
Security: Supports TKIP, AES, WEP, WPA-PSK, and WPA2-PSK
Sensitivity: High receiving Sensitivity of -95dBm

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

Powered by a specialized Qualcomm QCA (MIPS 24Kc) industrial processor, the HEAP-T-007 handles data with the precision required for modern automation. Whether deployed in a bustling production floor, a high-density warehouse, or a complex hospitality environment, it ensures that your mobile terminals and IoT sensors remain seamlessly connected to the core.

Standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Equipment Interface	3 x 10/100Mbps Self-adaptive Wired Network Interface
	1 x Reset Button for Restoring the Factory Settings
	1 x 3P Plug-pull Socket
Antenna	1 x 2.4G Gain: 3dBi TLB High-gain Omni-directional Eternal Rubber Stick Antenna
Power Supply	12 - 48 VDC
RF Characteristics	802.11b/g/n
	2.4 - 2.4835 GHz
	2.4 - 2.4835 GHz
Transmission Speed	150 Mbps
Receiving Sensitivity	802.11n (2.4GHz)	802.11g	802.11b
	-90dBm @ MCS0	- 90dBm @ 6Mbps	- 95dBm @ 1Mbps
	-70dBm @ MCS7	- 72dBm @ 54Mbps	- 90dBm @ 11Mbps
	-90dBm @ MCS8
	-68dBm @ MCS15
	Radio 1 (WLAN1)
Transmission Power	802.11n (2.4GHz)(± 1.5dBm)	802.11g (± 1.5dBm)	802.11b (±1.5dBm)
	20dBm@ MCS0~2/MCS8~10	20dBm @ 6~24Mbps	20dBm @1~11Mbps
	18dBm @ MCS3/MCS11	18dBm @ 36Mbps
	18dBm @ MCS4/MCS12	16dBm @ 48Mbps
	18dBm @ MCS5/MCS13	16dBm @ 54Mbps
	18dBm @ MCS6/MCS14
	18dBm @ MCS7/MCS15
Operating Temperature	-20℃ to 70℃
Operating Humidity	10% - 95% RH (Non-condensing)
Storage Temperature	-40℃ to 70℃
Storage Humidity	5% - 95% RH (Non-condensing)
Dimension	100 × 80 × 35 mm

HEAP-T-004

Wireless Carrier 433MHz to RS-232/485/422, Metal Enclosure, Wall Mounted, Power Supply: 9 - 30 VDC, Transmission Distance: Wireless 433MHz Carrier 300 m (Open Space), RS-232 5 m (1,200 - 38,400 bps) RS-485/422 1200 m (1,200 - 115,200 bps), Operating Temperature: -10℃ to 70℃.

HEAP-T-005

Zigbee 2.4G to RS-232/485/422 Wireless Data Transmission Converter, Metal Enclosure, Wall Mounted, Power Supply: 9 - 30 VDC, Transmission Distance: Wireless 2.4 GHz Carrier 2,000 m (Open Space); RS-232 5 m(1,200 - 115,200 bps); RS-485/422 1,200m (1,200 - 115,200 bps), Operating Temperature: -25℃ to 70℃.

HEAP-T-006

300 Mbps Wireless AP Repeater, Metal Enclosure, Power Supply: 12 - 24 VDC, Transmission Speed: 300 Mbps, Operating Temperature: -20℃ to 70℃.

HEAP-T-007

Wireless AP Receiver, 1×10/100Mbps WAN, 2×10/100Mbps LAN, Power Supply: 12 - 48 VDC, AP, Relay, ISP, and Router modes, Transmission Speed: 150 Mbps.

Datasheet ： Predision_Access_Point_HEAP-T-007_DS_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
