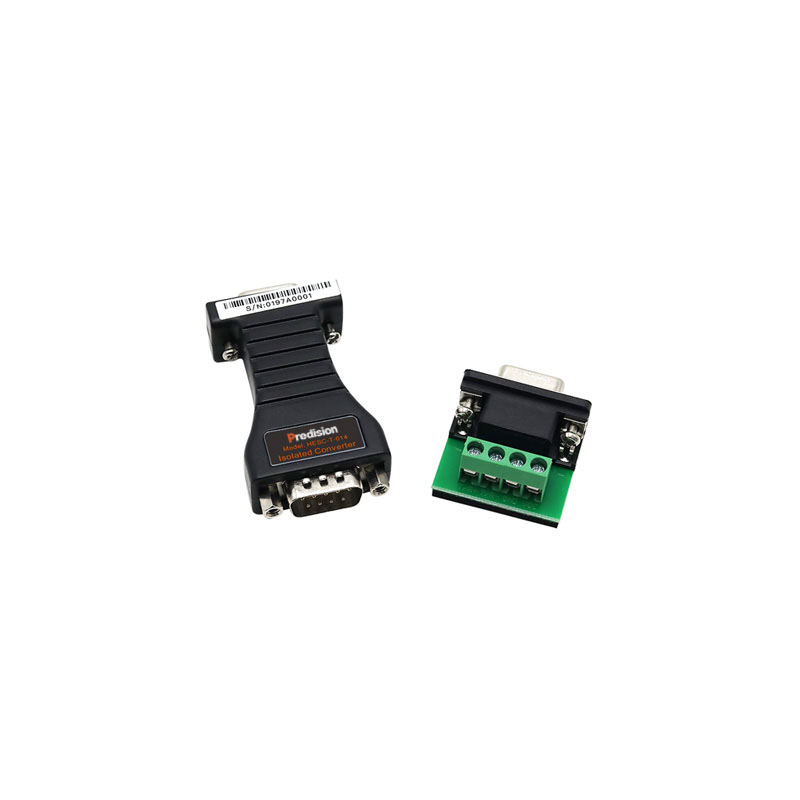

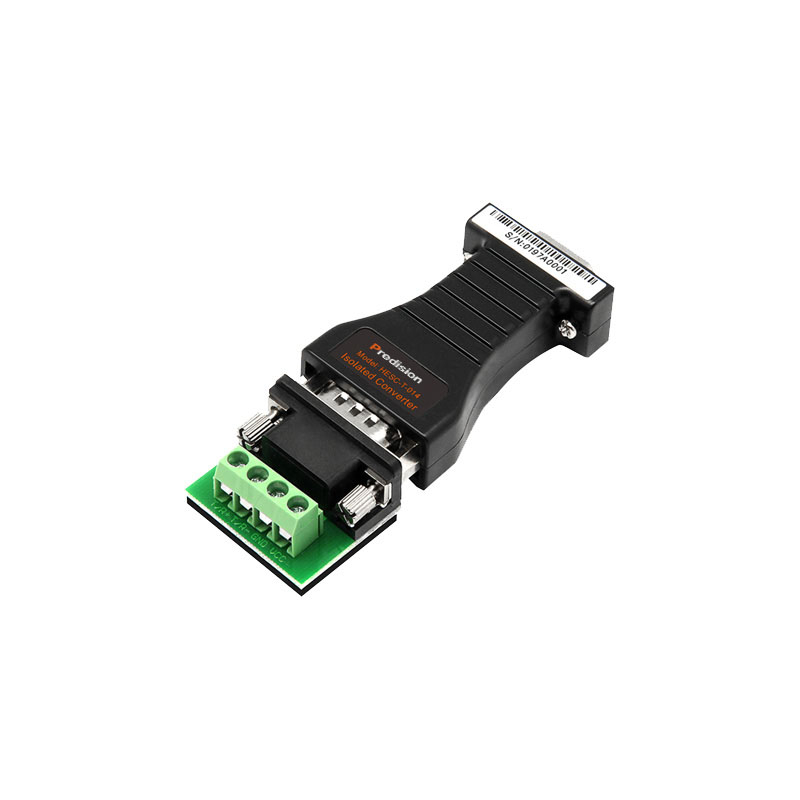

Predision HESC-T-014 Port-powered Photoelectric Isolated RS-232 to RS-485 Converter

Manufacturer Part Number: HESC-T-014

Brand: Predision

$ 48.00

Operating Temperature: -25°C to 70°C
Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
Baud Rate: 300 - 38,400 bps

See our Shipping Policy for delivery regions and fees

15 Available

The HESC-T-014 serial converter provides seamless compatibility between RS-232C and RS-485 standards, converting single-ended RS-232 signals into balanced differential RS-485 signals. The unit features an integrated optical isolator providing 2,500 Vrms isolation, while advanced Transient Voltage Suppressors (TVS) protect the RS-485 interface from electrical surges.

Designed with zero-delay automatic transceiver switching, the converter's unique I/O circuitry manages data flow direction automatically—eliminating the need for hardware handshake signals (such as RTS or DTR). This ensures the HESC-T-014 is fully compatible with all existing communication software and hardware, requiring no software modifications to legacy RS-232 systems.

The HESC-T-014 provides reliable connectivity for both point-to-point and point-to-multipoint configurations. In multipoint mode, the converter supports up to 32 RS-485 devices with data rates ranging from 300 to 38,400 bps.

Interface Standard	Complies with EIA/TIA RS-232C and RS-485 Standards

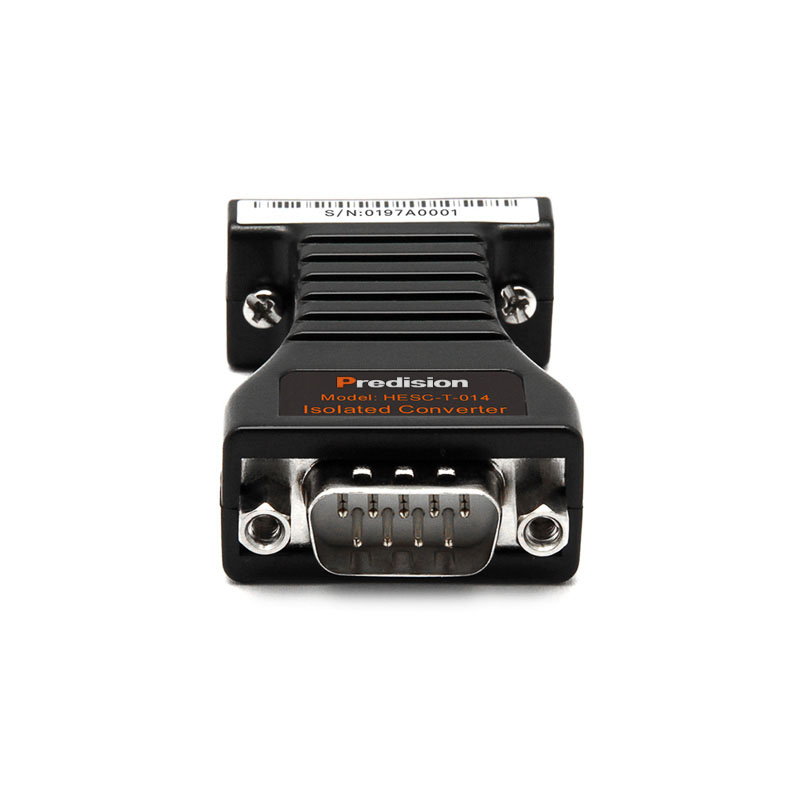

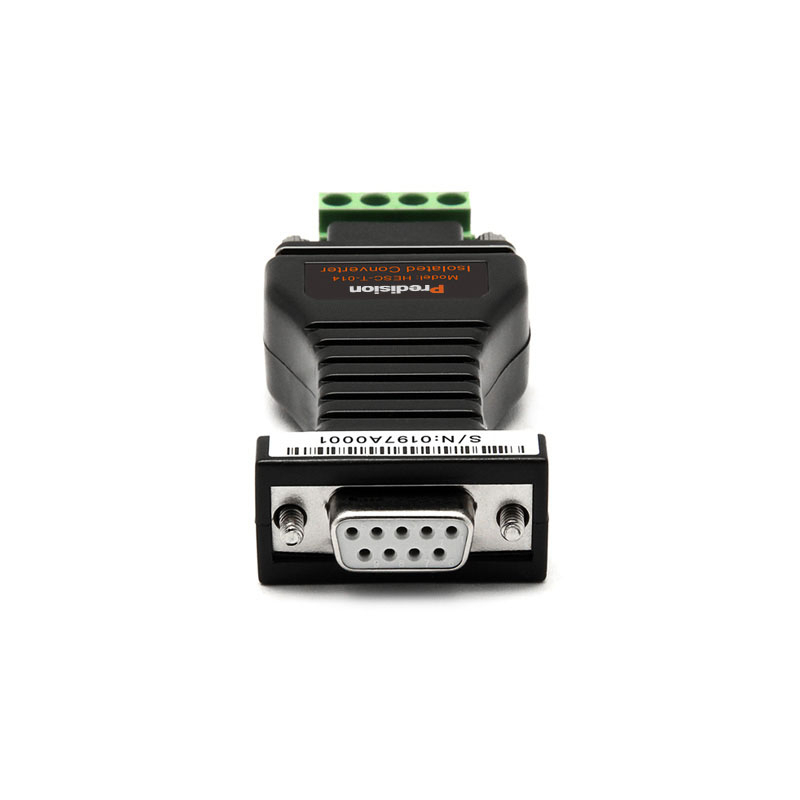

Electrical Interface	DB9 Female Connector for RS-232 Port, DB9 Male Connector for RS-485 Port
Interface Protection	±15 kV ESD Protection for RS-232 Interface; 600 W Surge Protection per wire for RS-485 Interface
Isolation Voltage	2,500 Vrms, 500 VDC (Continuous)
Operating Mode	Asynchronous Half-duplex
Transmission Media	Twisted-pair (UTP) or Shielded Cable (STP)
Transmission Distance	1.2 km at 9,600 bps; 300 m at 38,400 bps
Dimension	63 x 33 x 17 mm
Operating Temperature	-25°C to 70°C
Relative Humidity	5% to 95%

HESC-T-010

Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Operating Temperature: -25℃ to 70℃.

HESC-T-011

Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing, Baud Rate: 300 bps - 115.2 Kbps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Protection: ±15 kV ESD Protection, 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.

HESC-T-012

Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing with Terminal Block, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Operating Temperature: -25℃ to 70℃.

HESC-T-013

RS-232 to RS-485 Converter, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Protection: 600 W Surge Protection per wire (RS-485), Operating Temperature: -40℃ to 85℃.

HESC-T-014

RS-232 to RS-485 Converter with Photoelectric Isolation, Baud Rate: 300 - 38,400 bps, ±15 kV ESD Protection (RS-232), 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.

HESC-T-015

RS-232 to RS-485 Converter, Wall-mount, Baud Rate: 300 - 115,200 bps, Transmission Distance: up to 300 m (at 115.2 kbps), up to 600 m (at 38.4 kbps), up to 1.2 km (at 9,600 bps), 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.
