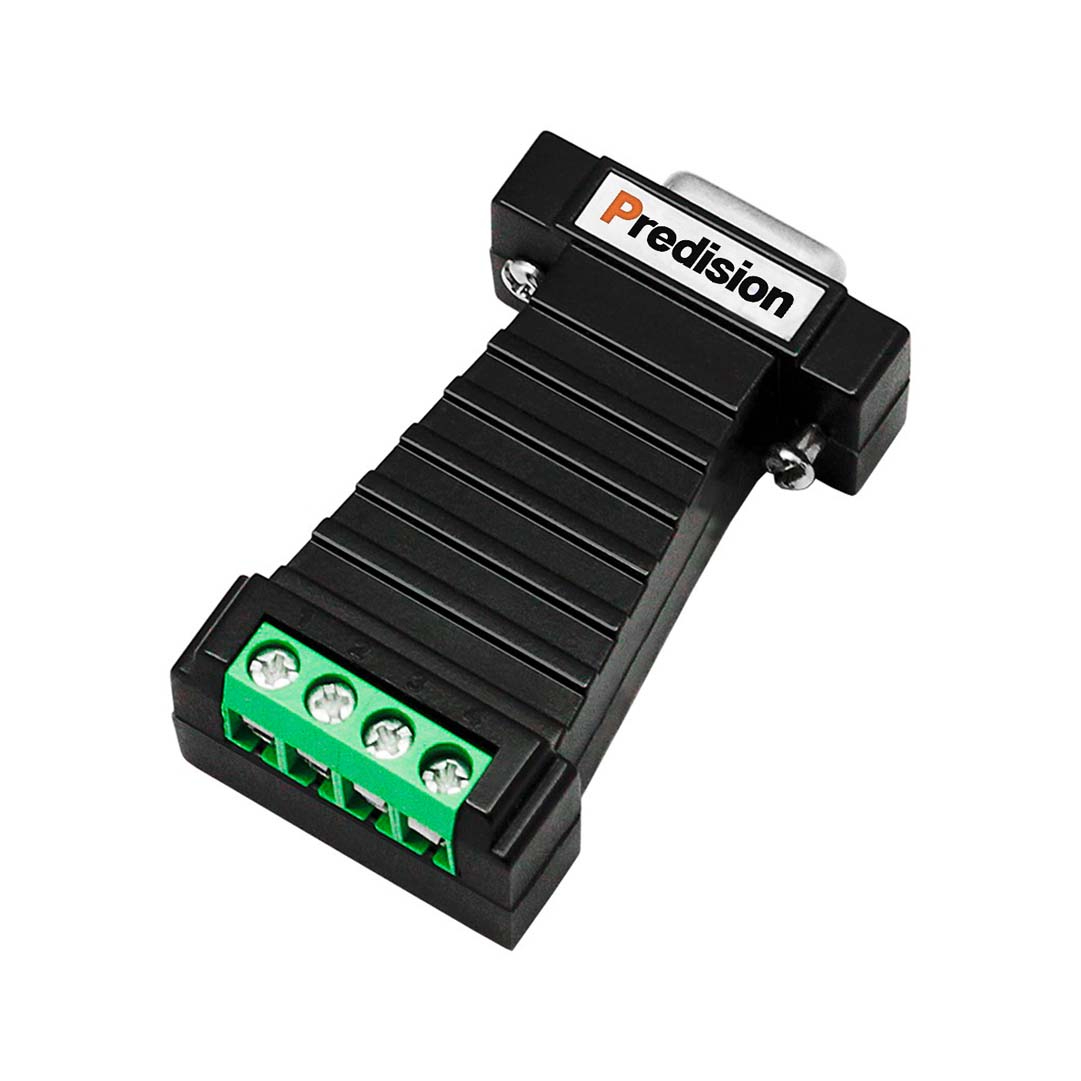

Predision HESC-T-012 Mini RS-232 to RS-485 Converter
Manufacturer Part Number: HESC-T-012
Brand: Predision
$ 13.00
- Built-in Terminal Block
- Operating Temperature: -25°C to 70°C
- Baud Rate: 300 - 115,200 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HESC-T-012 converter is compatible with both RS-232 and RS-485 standards, transforming single-ended RS-232 signals into balanced differential RS-485 signals. It extends RS-232 communication up to 1.2 kilometers without the need for an external power supply.
By utilizing zero-delay automatic transceiver switching and specialized I/O circuitry, it manages data flow direction automatically—eliminating the need for handshake signals such as RTS or DTR. Supporting transmission rates from 300 bps to 115.2 Kbps, this device is ideal for industrial automation, access control, parking systems, and automated toll or banking solutions.
| Standard | Complies with EIA/TIA RS-232C, RS-485 Standards |
| Electrical Interface | DB9 Female Connector at RS-232 Port, Terminal Block at RS-485 Port |
| Operating Mode | Asynchronous Half-duplex Differential Transmission |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Baud Rate | 300 - 115,200 bps |
| Dimension | 58 x 33 x 19.5 mm |
Operating Temperature | -25°C to 70°C |
| Relative Humidity | 5 - 95% |
| Transmission Distance | 1,200m (RS-485) 5m (RS-232) |
Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Operating Temperature: -25℃ to 70℃.
Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing, Baud Rate: 300 bps - 115.2 Kbps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Protection: ±15 kV ESD Protection, 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.
Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing with Terminal Block, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Operating Temperature: -25℃ to 70℃.
RS-232 to RS-485 Converter, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Protection: 600 W Surge Protection per wire (RS-485), Operating Temperature: -40℃ to 85℃.
RS-232 to RS-485 Converter with Photoelectric Isolation, Baud Rate: 300 - 38,400 bps, ±15 kV ESD Protection (RS-232), 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.
RS-232 to RS-485 Converter, Wall-mount, Baud Rate: 300 - 115,200 bps, Transmission Distance: up to 300 m (at 115.2 kbps), up to 600 m (at 38.4 kbps), up to 1.2 km (at 9,600 bps), 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.
