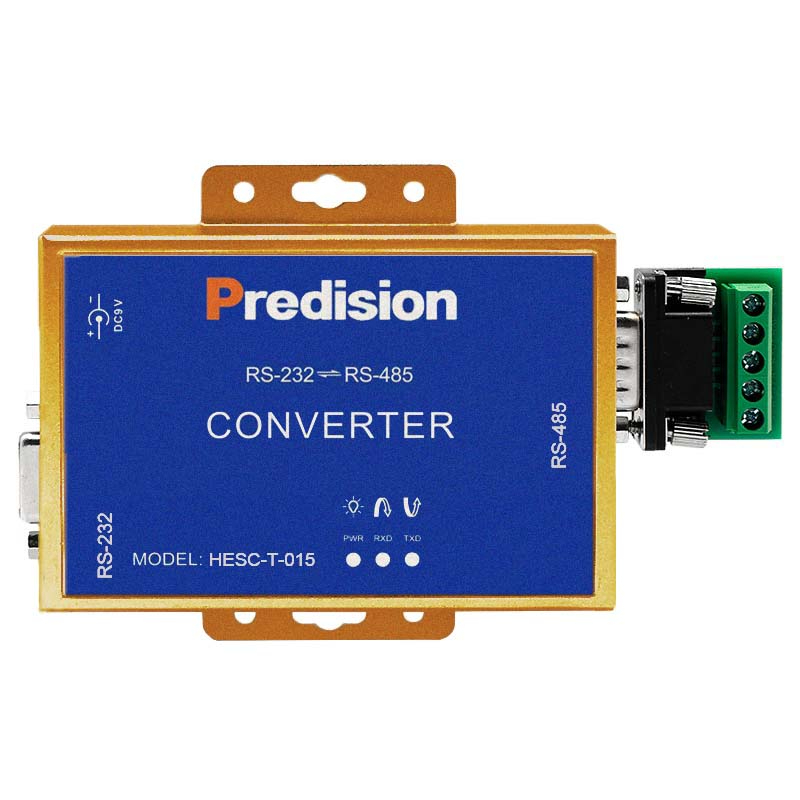

Predision HESC-T-015 RS-232 to RS-485 Converter

Manufacturer Part Number: HESC-T-015

Brand: Predision

$ 66.00

Operating Temperature: -25°C to 70°C
Baud Rate: 300 - 115,200 bps
600 W Surge Protection per wire (RS-485)

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HESC-T-015 is a high-performance converter compliant with RS-232C and RS-485 standards. It converts single-ended RS-232 signals into balanced differential RS-485 signals. To ensure robust system integrity, the RS-485 interface features integrated Transient Voltage Suppression (TVS). Additionally, low inter-electrode capacitance ensures high-speed data transmission across all RS-485 ports. The RS-232 port utilizes a DB9 female connector for standard RS-232C interfacing, while the RS-485 output supports both RJ45 and 4-pin terminal block connections.

The converter features built-in, zero-delay automatic send/receive switching and unique I/O circuitry to control data flow direction. This eliminates the need for handshake signals (such as RTS or DTR) and ensures full compatibility with existing communication software and hardware without requiring legacy RS-232 mode configurations.

The HESC-T-015 supports point-to-point and point-to-multipoint communication. In point-to-multipoint mode, each converter can interface with up to 32 RS-485 devices at baud rates ranging from 300 to 115,200 bps.

Standard	Complies with EIA/TIA RS-232C, RS-485 Standards
Interface Connector	RS-232 DB9 Female Input and RS-485 DB9 Male Output, with RJ45 Connector
Interface Protection	600 W Surge Protection per Wire (RS-485)
Operating Mode	Asynchronous Half-duplex
Transmission Media	Twisted-pair (UTP) or Shielded Cable (STP)
Baud Rate	300 - 115,200 bps
Dimension	106 × 87 × 22 mm
Operating Temperature	-25°C to 70°C
Relative Humidity	5 - 95%
Transmission Distance	Up to 1.2 km (at 9,600 bps); Up to 600 m (at 38.4 kbps); Up to 300 m (at 115.2 kbps)

HESC-T-010

Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Operating Temperature: -25℃ to 70℃.

HESC-T-011

Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing, Baud Rate: 300 bps - 115.2 Kbps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Protection: ±15 kV ESD Protection, 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.

HESC-T-012

Mini RS-232 to RS-485 Converter, Screw-fixed Plastic Housing with Terminal Block, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Operating Temperature: -25℃ to 70℃.

HESC-T-013

RS-232 to RS-485 Converter, Baud Rate: 300 - 115,200 bps, Transmission Distance: 1,200m (RS-485); 5m (RS-232), Protection: 600 W Surge Protection per wire (RS-485), Operating Temperature: -40℃ to 85℃.

HESC-T-014

RS-232 to RS-485 Converter with Photoelectric Isolation, Baud Rate: 300 - 38,400 bps, ±15 kV ESD Protection (RS-232), 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.

HESC-T-015

RS-232 to RS-485 Converter, Wall-mount, Baud Rate: 300 - 115,200 bps, Transmission Distance: up to 300 m (at 115.2 kbps), up to 600 m (at 38.4 kbps), up to 1.2 km (at 9,600 bps), 600 W Surge Protection per wire (RS-485), Operating Temperature: -25℃ to 70℃.
