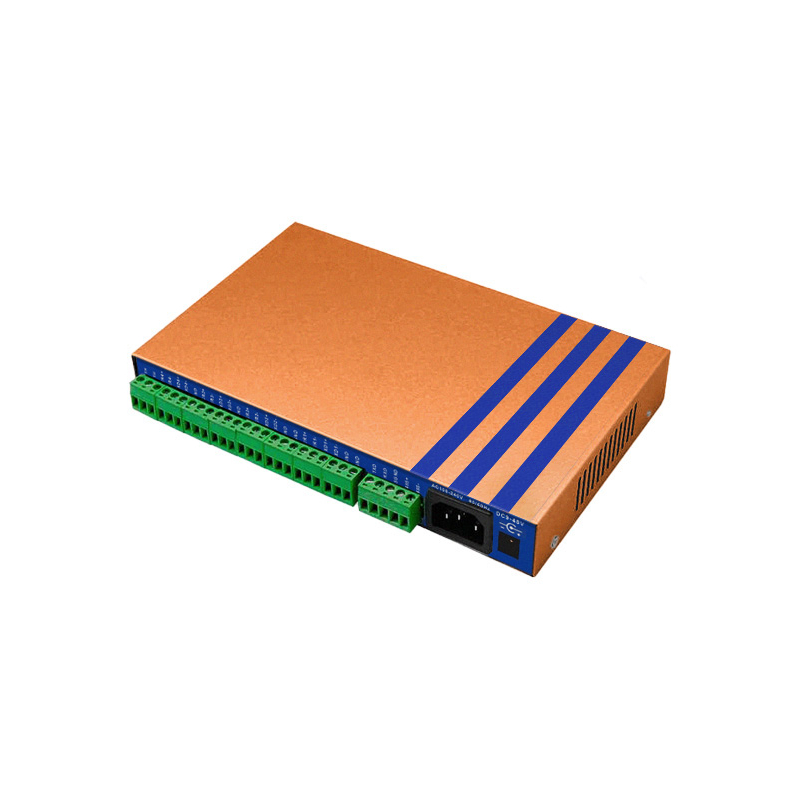

Predision HESC-T-037 RS-232/485 to 4-port RS-485/422 Hub
Manufacturer Part Number: HESC-T-037
Brand: Predision
$ 478.00
- Operating Temperature: -40°C to 85°C
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- 8/20μs 3,000A Lightning Surge Protection per wire (RS-485/422)
- Baud Rate: 300 bps - 115.2 kbps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HESC-T-037 is a high-performance RS-485/422 bus-segmentation hub, powered by an integrated microprocessor for non-stop operation. It is specifically engineered to handle large-scale RS-485/422 system requirements within complex electromagnetic environments. Supporting baud rates up to 115.2 kbps, the device ensures secure and stable data communication through advanced optical isolation technology at all RS-485/422 interfaces.
To safeguard connected equipment, the HESC-T-037 features built-in photoelectric isolators and a robust surge protection circuit capable of withstanding 3,000A (8/20μs waveform). It provides 2,500 Vrms isolation voltage, effectively suppressing lightning strikes, ESD, and common-ground interference—making it ideal for demanding outdoor engineering applications.
For seamless communication, the device utilizes intelligent discrimination circuitry to sense data flow direction and automatically switch enable-control, eliminating RS-485/422 transceiver latency. It supports transmission distances exceeding 1,200 meters with consistent stability.
The HESC-T-037 enables efficient star-topology networking, providing each port with short-circuit and open-circuit protection. By segmenting the network, it enhances overall reliability: should a lightning strike or equipment failure occur, the affected segment is isolated, allowing the rest of the network to function normally. This significantly minimizes maintenance time and maximizes system uptime.
| Standard | RS-485/422 EIA/TIA |
| Electrical Interface | RS-485/422 Terminal Block |
| Interface Protection | 8/20μs 3,000A Lightning Surge Protection per wire (RS-485/422) |
| Isolation Voltage | 2,500 Vrms, 500 VDC (Continuous), Dedicated DC/DC Module |
| Operating Mode | Asynchronous, Half-duplex or Full-duplex |
| Signal Indicators | 8 LEDs for Power (PWR1, PWR2), Transmit (TXD), Receive (RXD) and Error (E1-E4) |
| Operating Voltage | 9 - 48 VDC |
| Rated Power | 1W |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Baud Rate | 300 bps - 115.2 kbps |
| Transmission Distance | 1,200m (at 9,600 bps) |
| Dimension | 210 x 130 x 33 mm |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5 - 95% |
Industrial RS-232 to 2-port RS-485 Converter with Optical Isolation, Baud Rate: 300 bps - 115.2 kbps, Power: 9-30 VDC/ 350 mA, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), DC/DC module, ±15 kV ESD Protection, 600 W Lightning Surge Protection per wire, Operating Temperature: -40℃ to 85℃.
Industrial RS-232/RS-485 to 2-port RS-485 Hub, Operating Power: 9-30 VDC / 150 mA, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection, 600 W Lightning Surge Protection per wire, Operating Temperature -40℃ to 85℃.
RS-232/RS-485 to 4-port RS-485 Hub (Din-rail), Operating Power: 9 - 30 VDC/150 mA, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection, 600W Lightning and Surge Protection per wire, Operating Temperature: -40℃ to 85℃.
Industrial RS-485/422 to 4-port RS-485/422 Hub, Baud Rate: 300 bps - 115.2 kbps, Operating Voltage: 9 - 48 VDC, Transmission Distance: 1,200m (at 9,600 bps), 8/20μs 3,000A Lightning Surge Protection per wire, Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), Operating Temperature: -40℃ to 85℃.
RS-232/485 to 4-port RS-485/422 Photoelectric Isolated Hub, Baud Rate: 300 bps - 115.2 kbps, Operating Voltage: 9 - 48 VDC, Transmission Distance: 1,200m (at 9,600 bps), 8/20μs 3,000A Lightning Surge Protection per wire, Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), Operating Temperature: -40℃ to 85℃.
RS-232/RS-485 to 8-port RS-485 Photoelectric Isolated Hub, Din-rail, Input Voltage: 12 - 48 VDC, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 1,200m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), 15 kV ESD Protection (RS-232), 1,500 W Lightning and Surge Protection per wire (RS-485), 2,000 V Lightning and Surge Protection (Power Supply), Operating Temperature: -40℃ to 85℃.
Industrial RS-232/RS-485 to 8-port RS-485 Hub, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 1,500 W Lighting and Surge per wire (RS-485), Operating Temperature: -40℃ to 85℃.
Industrial Rack-mount RS-232/RS-485 to 8-port RS-485 Photoelectric Isolated Hub, 1U Enclosure, 100 - 240 VAC 50/60Hz, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 1,500 W Lighting and Surge per wire (RS-485), Operating Temperature: -40℃ to 85℃.
RS-232/RS-485 to 8-port RS-485 Photoelectric Isolated Hub, Baud Rate: 300 bps - 115.2 kbps, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 1,500 W Lighting and Surge Protection per wire (RS-485), Operating Temperature: -40℃ to 85℃.
RS-232/RS-485 to 16-port RS-485 Photoelectric Isolated Hub, 1U Enclosure, Baud Rate: 300 bps - 115.2 kbps, Input Voltage: 100 - 240 VAC, 50/60 Hz, Transmission Distance: 5,000m (at 9,600 bps), Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous), ±15 kV ESD Protection (RS-232), 1,500 W Lighting and Surge Protection per wire (RS-485), Operating Temperature: -40℃ to 85℃.
