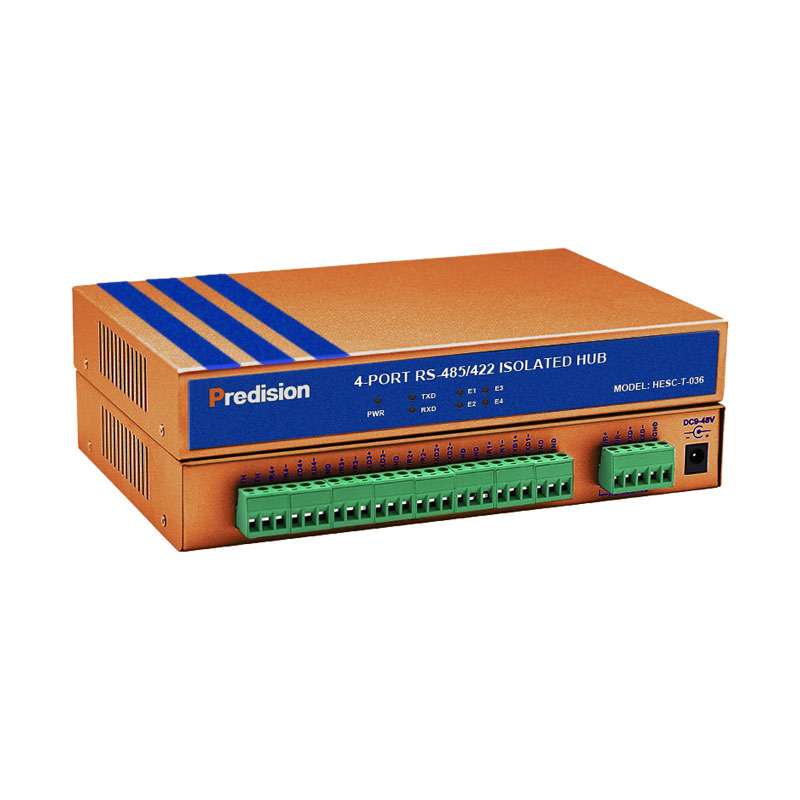

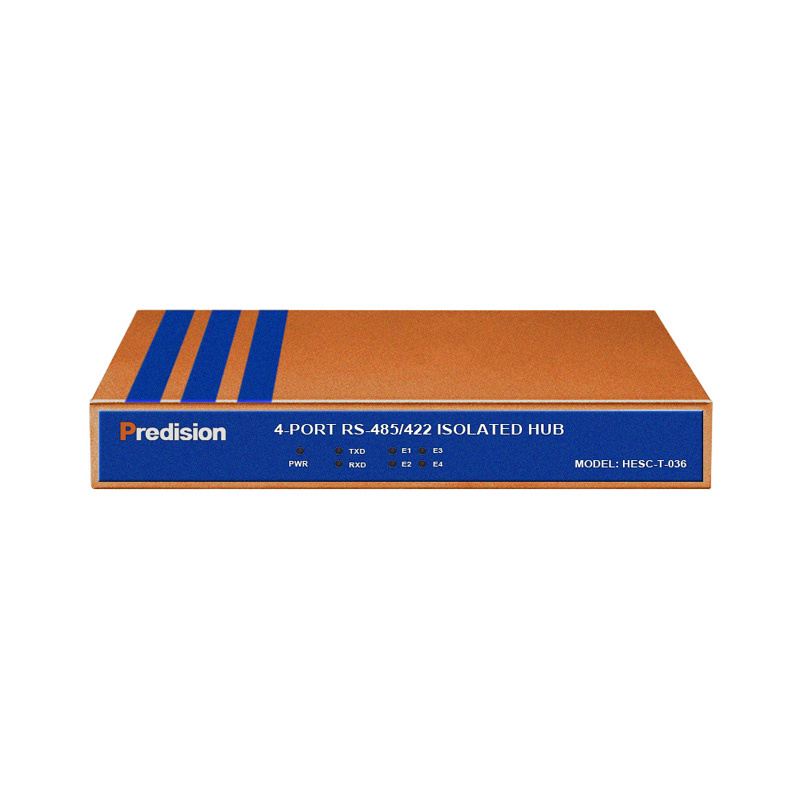

Predision HESC-T-036 RS-485/422 to 4-port RS-485/422 Hub
Manufacturer Part Number: HESC-T-036
Brand: Predision
$ 379.00
- Operating Temperature: -40°C to 85°C
- Isolation Voltage: 2,500 Vrms, 500 VDC (Continuous)
- 8/20μs 3,000A Lightning Surge Protection per wire (RS-485/422)
- Baud Rate: 300 bps - 115.2 kbps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HESC-T-036 is a high-performance RS-485/422 bus-segmentation hub, powered by an integrated microprocessor for non-stop operation. It is specifically engineered to handle large-scale RS-485/422 system requirements within complex electromagnetic environments. Supporting baud rates up to 115.2 kbps, the device ensures secure and stable data communication through advanced optical isolation technology at all RS-485/422 interfaces.
To safeguard connected equipment, the HESC-T-036 features built-in optoisolators and a robust surge protection circuit capable of withstanding 3,000A (8/20μs waveform). It provides 2,500 Vrms isolation voltage, effectively suppressing lightning strikes, ESD, and common-ground interference—making it ideal for demanding outdoor engineering applications.
For seamless communication, the device utilizes intelligent discrimination circuitry to sense data flow direction and automatically switch enable-control, eliminating RS-485/422 transceiver latency. It supports transmission distances exceeding 1,200 meters with consistent stability.
The HESC-T-036 enables efficient star-topology networking, providing each port with short-circuit and open-circuit protection. By segmenting the network, it enhances overall reliability: should a lightning strike or equipment failure occur, the affected segment is isolated, allowing the rest of the network to function normally. This significantly minimizes maintenance time and maximizes system uptime.
| Standard | RS-485/422 EIA/TIA |
| Electrical Interface | RS-485/422 Terminal Block |
| Interface Protection | 8/20μs 3,000A Lightning Surge Protection per wire (RS-485/422) |
| Isolation Voltage | 2,500 Vrms 500 VDC (Continuous), Dedicated DC/DC Module |
| Operating Mode | Asynchronous, Half-duplex or Full-duplex |
| Operating Voltage | 9 - 48 VDC |
| Operating Current | 150 mA |
| Transmission Media | Twisted-pair (UTP) or Shielded Cable (STP) |
| Baud Rate | 300 bps - 115.2 kbps |
| Transmission Distance | 1,200m (at 9,600 bps) |
| Dimension | 210 x 130 x 33 mm |
| Operating Temperature | -40℃ to 85℃ |
| Relative Humidity | 5 - 95% |
