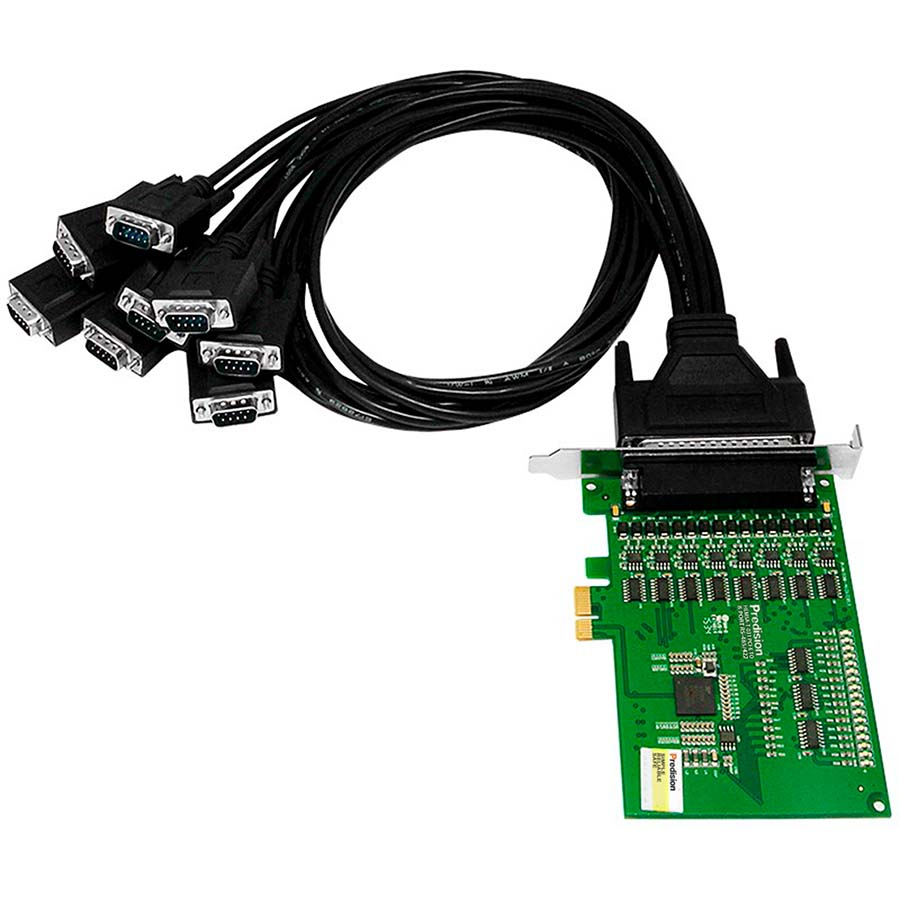

Predision HEMSA-T-031 PCI-E to 8-port RS-485/422 Multi-serial Card
Manufacturer Part Number: HEMSA-T-031
Brand: Predision
$ 247.00
- Working Temperature: -40°C to 85°C
- 600W Lightning Surge Protection and ±15 KV ESD Protection
- Baud Rate: 300 - 921,600 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HEMSA-T-031 PCI-E converter card, compatible with RS-485 and RS-422 standards, is capable of converting single-ended PCI-E signals to balanced differential signals. It features an advanced Transient Voltage Suppressor (TVS) designed to protect the interface from high-energy surges. Under normal conditions, the TVS tube remains in a high-resistance state. However, when subjected to an instantaneous high-energy shock, it rapidly reduces impedance to absorb large currents. This clamps the voltage at a predetermined value, protecting downstream circuit components from transient high-voltage damage.
This protector effectively suppresses lightning and ESD, providing 600W of lightning surge protection per wire, as well as surge voltages and transient over-voltages generated by various causes on the wire. Additionally, the extremely small inter-pole capacitance ensures high-speed data transmission across the RS-485/422 interface.
| Interface Connection | 1 x DR44 Female Connector, 8 x DB9 Male Connector |
| Bus | X1 2.5Gbps PCI Express |
| Signals | RS-422: T/R+, T/R-, RXD+, RXD-, GND RS-485: Data+(A), Data-(B), GND |
| Baud Rate | 300 - 921,600 bps |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Operating Temperature | -40℃ to 85℃ |
| Interface Protection | 600W Lightning Surge Protection and ±15KV ESD Protection for Each Wire of RS-485/422 |
| Transmission Distance | RS-485/422 Communication Distance up to 1.2Km |
| Support System | Win2000/XP/Vista/Win7/8/8.1/10/NT4.0/CE4.2/5.0/6.0/Vxworks/Linux 2.4.x/2.6.x |
PCI-E to 4-port RS-485/422 Multi-serial Card, 2U / 4U, Baud rate: 300 - 921,600 bps, Operating Temperature: -40℃ to 85℃, Port Protection: 600W Surge Protection and ±15KV ESD Protection for Each Wire of RS-485/422
PCI-E to 8-port RS-485/422 High-speed Multi-serial Card, 4U, Baud Rate: 300 - 921,600 bps, Operating Temperature: -40°C to 85°C, Interface Protection: 600W Lightning Surge Protection and ±15KV ESD Protection for Each Wire of RS-485/422
