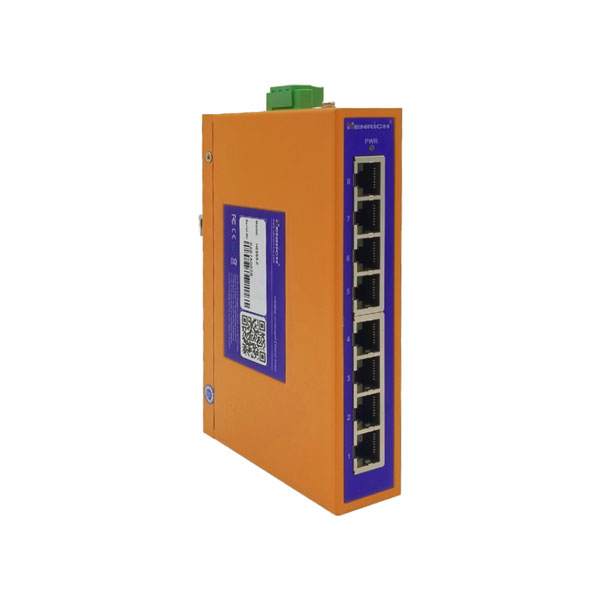

Henrich HES8A-Z 8-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES8A-Z

Brand: Henrich

$ 69.99$ 118.00

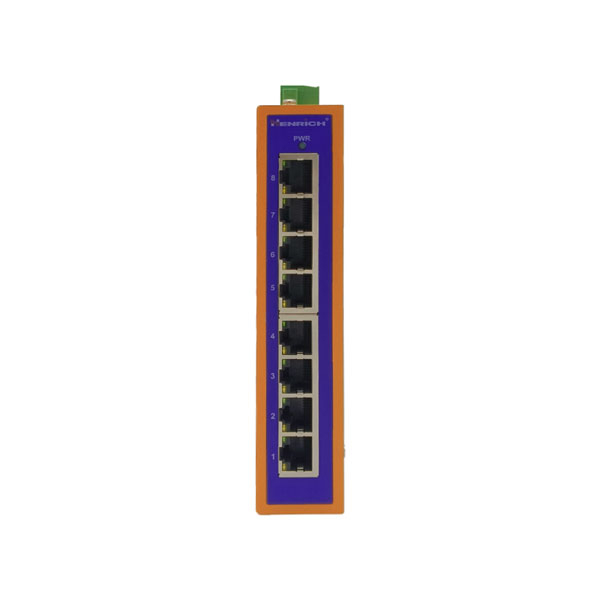

8 × 10/100BaseT(X) (RJ45 connector)
Operating Temperature: -40°C to 75°C
DC 12/24/48V Power Input (10.8 - 52.8 VDC)
IP40 Din-rail Mounting

See our Shipping Policy for delivery regions and fees

38 Available

The HES8A-Z series is industrial Ethernet switches launched by Henrich Electronics Corporation. This line of switches supports eight 10/100BaseT(X) copper ports. All ports support auto-negotiation, 10/100 Mbps speed, full- and half-duplex modes, and auto MDI/MDIX. Designed with performance, security, and reliability in mind, the HES8A-Z series switches are ideal for industrial and outdoor applications with DIN-rail mounting. The products support 12/24/48 VDC power inputs with an operating range of 10.8–52.8 VDC.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	8 Full/Half-duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
Standards	IEEE802.3; IEEE802.3i; IEEE802.3u; IEEE802.3x

Switch Properties

Processing Type	Store and forward
MAC Table Size	2 k
Packet Buffer Size	768 kbits

Power Parameters

Input Voltage	12/24/48 VDC (10.8 - 52.8 VDC)
Power Consumption	100 mA @ 24V Max

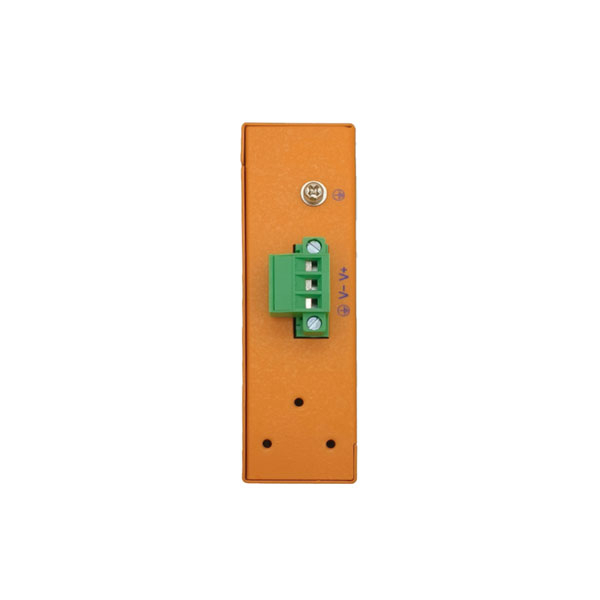

Power Connector Type	Phoenix Terminal
Reverse Polarity Protection	Supported
Overload Current 4.0A Protection	Supported

Physical Characteristics

Case	Metal Enclosure, IP40 Rating

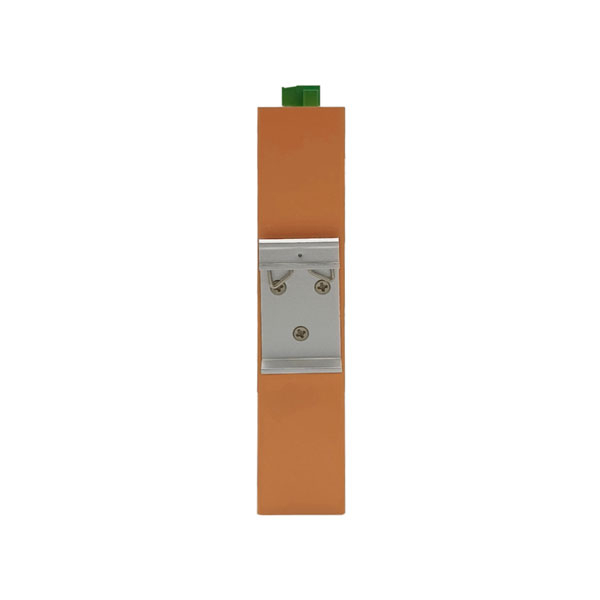

Installation	Din-rail Mounting
Dimensions (Width × Height × Depth)	1.18" × 5.91" × 3.94" (30mm ×150 mm × 100 mm)

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 80℃
Relative Humidity	5% to 95% (No Condensation)

Industrial Standard

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2/IEC(EN)61000-4-2 (ESD) Level 3, EN61000-4-3/IEC(EN)61000-4-3 (RS) Level 3, EN61000-4-4/IEC(EN)61000-4-4 (EFT) Level 3, EN61000-4-5/IEC(EN)61000-4-5 (Surge) Level 3, EN61000-4-6/IEC(EN)61000-4-6 (Radio Frequency Transmission) Level 3, EN61000-4-8/IEC(EN)61000-4-8 (Power Frequency Magnetic Field) Level 3
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
