Predision HESIO-T-012 32-channel Digital Voltmeter
Manufacturer Part Number: HESIO-T-012
Brand: Predision
$ 1218.00
- Operating Temperature: -20°C to 85°C
- Power Supply: 9 - 48 VDC
- Measurement Range: 0 - 36 VDC
- Baud Rate: 2,400 - 19,200 bps
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)

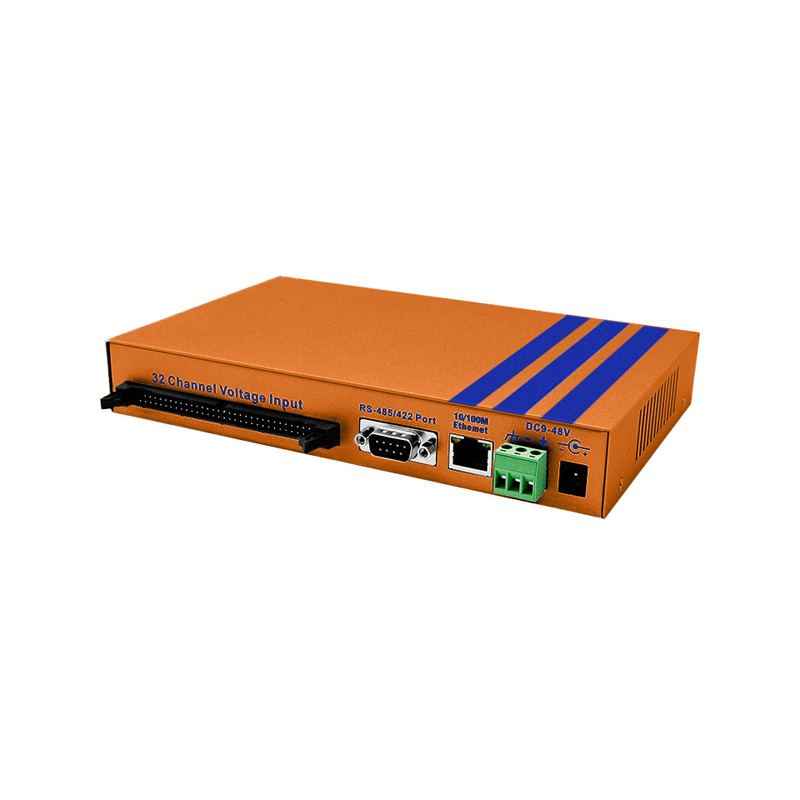

The HESIO-T-012 is a multi-channel digital voltmeter featuring 32 independent voltage input channels. Supporting various communication interfaces, it can be easily integrated with computers to establish remote voltage acquisition systems for laboratories and product quality inspection. It is also highly effective for industrial process monitoring.
| Input | 32-channel |
| Measurement Range | 0 - 36 VDC |
| A/D Accuracy | 14-bit (Equivalent to 4½ digits) |
| Temperature Acquisition Range | 0 - 80°C |
| Sampling Mode | Software Polling |
| Conversion Rate | < 100 ms |
| Baud Rate | 2,400 - 19,200 bps |
| Communication Interface | Supports TCP/IP, RS-485/422 Communication Mode |
| Power Supply | 9 - 48 VDC, 6W |
| Operating Temperature | -20°C to 85°C |
| Relative Humidity | 5 - 95% |
| Storage Temperature | -45°C to 150°C |
| OS Support | Win 98/Win 2000/WinXP/Vista |
4-channel Digital Voltmeter with independent voltage input channels, 4AI: (0-36 VDC) * 4, Power Supply: 9 - 40 VDC, A/D Accuracy: 24-bit, 600W per wire Surge Protection (RS-485/422), Operating Temperature: -40°C to 85°C.
32-channel High-speed Digital Voltmeter, 32AI: (0-36 VDC) * 32, Power Supply: 9 - 48 VDC, A/D Accuracy: 14-bit, Baud Rate: 2,400 - 19,200 bps, Operating Temperature: -20°C to 85°C.
4-channel Analog Output Module, 4AO: -10V - +10V, 0 - 20mA, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, Operating Temperature: -40°C to 85°C.
8-channel Analog Input Module, 8AI: (±10V/±5V/±20mA /±1V/±500mV/±150mV) *8, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, 600W per wire Surge Protection (RS-485), Operating Temperature: -25°C to 75°C.
8-channel AI/DI Acquisition Module, 8AI / 8DI, Baud Rate: 1,200 - 115,200 bps, Measurement Range: Differential Input ±10V, Single-ended Input 0 - 10V, 0 - 20 mA, 1 kV Differential Mode (Power Supply), 600W per wire (RS-485), Operating Temperature: -40℃ to 85℃.
