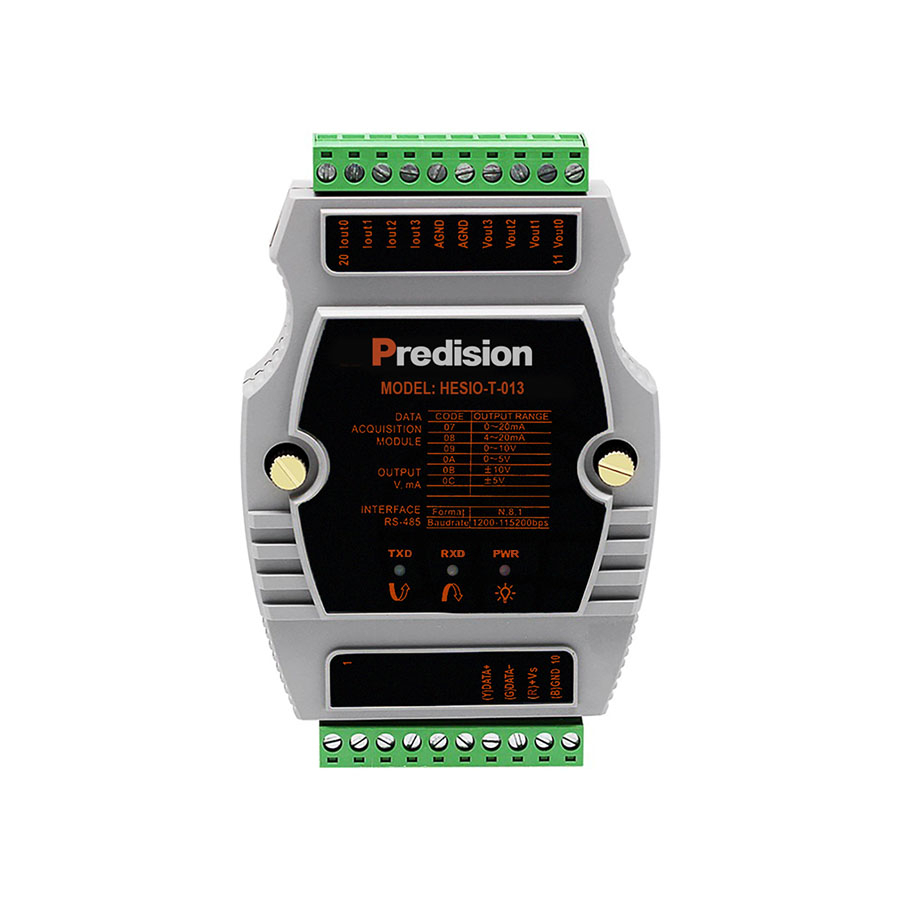

Name: Predision HESIO-T-013 4-channel AI/DI Acquisition Module
Brand: Predision
Price: 347.00 USD
Availability: OutOfStock

account&orders

Home

Predision HESIO-T-013 4-channel AI/DI Acquisition Module

Manufacturer Part Number: HESIO-T-013

Brand: Predision

$ 347.00

Operating Temperature: -40℃ to 85℃
Power Supply: 12 - 30 VDC
±0.5% of FSR Accuracy
Maximum Baud Rate 115,200 bps

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HESIO-T-013 is a remote analog output and control module that provides Digital-to-Analog (D/A) conversion capabilities. It supports both -10V to +10V DC voltage and 0–20mA DC current signal outputs. The module can be remotely controlled via a series of commands based on the Modbus-RTU protocol, communicating with the host computer over an RS-485 serial bus. Communication baud rates are software-configurable, supporting transmission speeds of up to 115,200 bps.

Output	4-channel
Communication Protocol	Modbus-RTU; supports Function Codes 03, 06, and 16.
Baud Rate	1,200/2,400/4,800/9,600/19,200/38,400/57,600/115,200 bps
Data Format	1, 8, N, 1 / 1, 8, E, 1
Address Range	1-247
Communication Interface	RS-485
Output Voltage	-10V to +10V
Output Current	0 - 20 mA
Accuracy	±0.5% of FSR
Current Load Resistance	1KΩ (External 24 VDC)
Isolation Voltage	3,000 VDC
Power Supply	12 - 30 VDC
Power Consumption	≤2.5 W
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	5 - 95% RH (Non-condensing)

HESIO-T-011

4-channel Digital Voltmeter with independent voltage input channels, 4AI: (0-36 VDC) * 4, Power Supply: 9 - 40 VDC, A/D Accuracy: 24-bit, 600W per wire Surge Protection (RS-485/422), Operating Temperature: -40°C to 85°C.

HESIO-T-012

32-channel High-speed Digital Voltmeter, 32AI: (0-36 VDC) * 32, Power Supply: 9 - 48 VDC, A/D Accuracy: 14-bit, Baud Rate: 2,400 - 19,200 bps, Operating Temperature: -20°C to 85°C.

HESIO-T-013

4-channel Analog Output Module, 4AO: -10V - +10V, 0 - 20mA, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, Operating Temperature: -40°C to 85°C.

HESIO-T-014

8-channel Analog Input Module, 8AI: (±10V/±5V/±20mA /±1V/±500mV/±150mV) *8, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, 600W per wire Surge Protection (RS-485), Operating Temperature: -25°C to 75°C.

HESIO-T-015

8-channel AI/DI Acquisition Module, 8AI / 8DI, Baud Rate: 1,200 - 115,200 bps, Measurement Range: Differential Input ±10V, Single-ended Input 0 - 10V, 0 - 20 mA, 1 kV Differential Mode (Power Supply), 600W per wire (RS-485), Operating Temperature: -40℃ to 85℃.

Datasheet ： Predision_Serial_I-O_Controller_HESIO-T-013_DS_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
