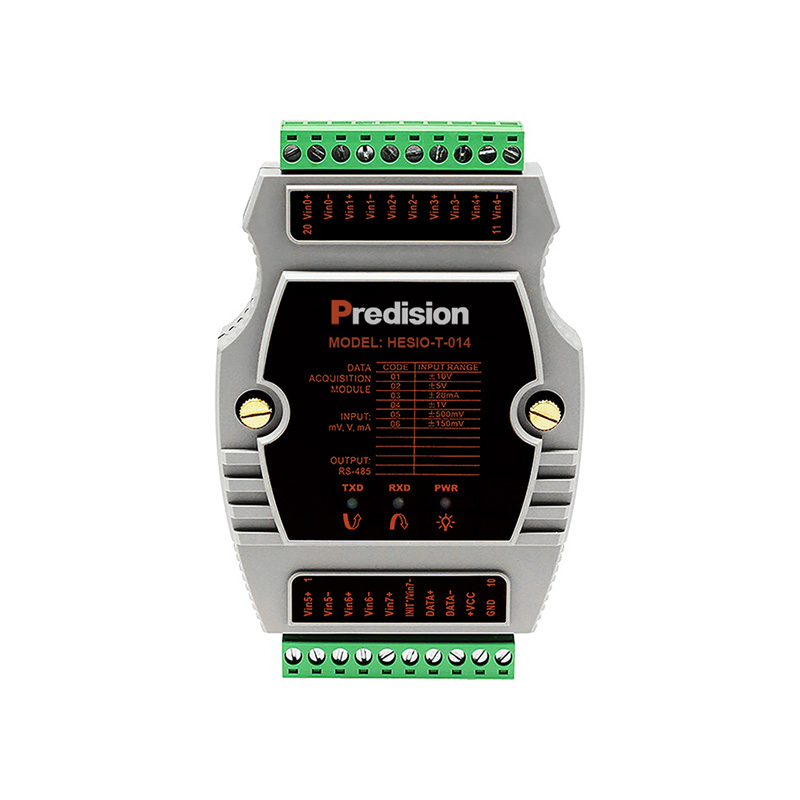

Name: Predision HESIO-T-014 8-channel Analog Input Module
Brand: Predision
Price: 348.00 USD
Availability: OutOfStock

account&orders

Home

Predision HESIO-T-014 8-channel Analog Input Module

Manufacturer Part Number: HESIO-T-014

Brand: Predision

$ 348.00

Operating Temperature: -25℃ to 75℃
600W per wire Surge Protection (RS-485)
Baud Rate: 1,200/2,400/4,800/9,600/19,200/38,400/57,600/115,200 bps

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

The HESIO-T-014 is a high-performance analog input module designed to meet rigorous industrial standards. Featuring an automotive-grade MCU, it provides 8 differential analog inputs, each with 8 independently configurable ranges. The module utilizes a combination of hardware bandpass and software filtering to ensure signal integrity. With an analog resolution of up to 24-bit, the HESIO-T-014 communicates via an RS-485 interface and supports the Modbus-RTU protocol.

Commnunication Protocol	Modbus-RTU
Baud Rate	1,200/2,400/4,800/9,600/19,200/38,400/57,600/115,200 bps
Data Format	1, 8, N, 1
Address Range	1 - 247
Communication Interface	RS-485
Sampling Frequency	8Hz (All Channels)
Accuracy	±5‰
Measuring Range	±10V/±5V/±20mA /±1V/±500mV/±150mV (To Measure Current, An External 125Ω±1‰/1W Resistor is required)
Resolution	24-bit
Input	8-channel Differential Input
Input Impedance	Voltage 10MΩ, Current 125Ω
Overvoltage Protection	240 Vrms
Power Supply	12-30 VDC
Operating Current	≤ 110 mA@ 12V
Power Consumption	≤ 0.6W
Operating Temperature	-25°C to 75°C
Storage Temperature	-40℃ to 85℃
Relative Humidity	5 - 95%

HESIO-T-011

4-channel Digital Voltmeter with independent voltage input channels, 4AI: (0-36 VDC) * 4, Power Supply: 9 - 40 VDC, A/D Accuracy: 24-bit, 600W per wire Surge Protection (RS-485/422), Operating Temperature: -40°C to 85°C.

HESIO-T-012

32-channel High-speed Digital Voltmeter, 32AI: (0-36 VDC) * 32, Power Supply: 9 - 48 VDC, A/D Accuracy: 14-bit, Baud Rate: 2,400 - 19,200 bps, Operating Temperature: -20°C to 85°C.

HESIO-T-013

4-channel Analog Output Module, 4AO: -10V - +10V, 0 - 20mA, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, Operating Temperature: -40°C to 85°C.

HESIO-T-014

8-channel Analog Input Module, 8AI: (±10V/±5V/±20mA /±1V/±500mV/±150mV) *8, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, 600W per wire Surge Protection (RS-485), Operating Temperature: -25°C to 75°C.

HESIO-T-015

8-channel AI/DI Acquisition Module, 8AI / 8DI, Baud Rate: 1,200 - 115,200 bps, Measurement Range: Differential Input ±10V, Single-ended Input 0 - 10V, 0 - 20 mA, 1 kV Differential Mode (Power Supply), 600W per wire (RS-485), Operating Temperature: -40℃ to 85℃.

Datasheet ： Predision_Serial_I-O_Controller_HESIO-T-014_DS_EN.pdf

LineCard： Predision_Line_Card_M2M_Connectivities.pdf
