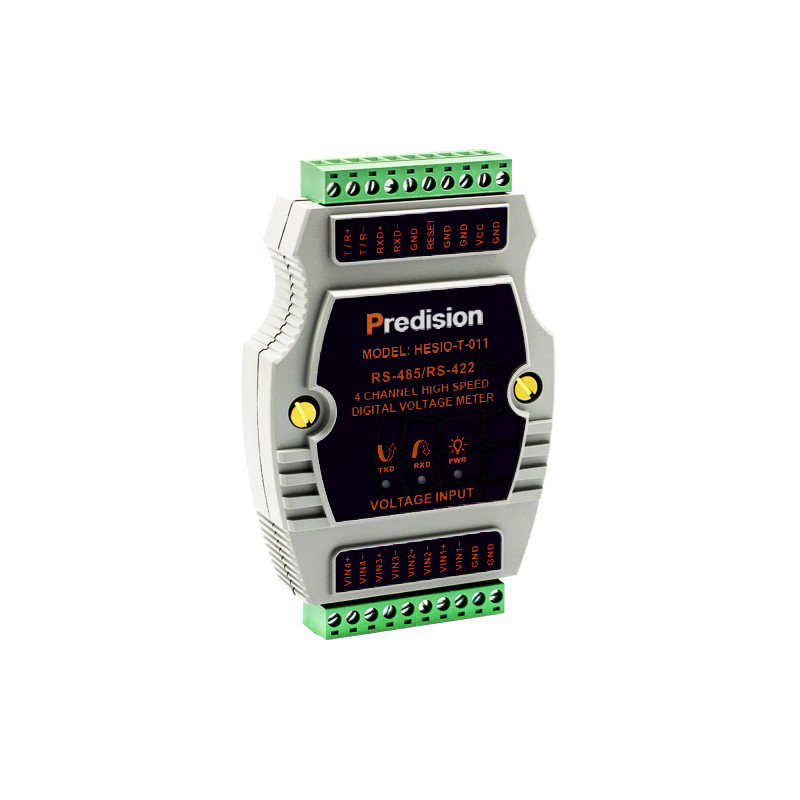

Predision HESIO-T-011 4-channel Digital Voltmeter
Manufacturer Part Number: HESIO-T-011
Brand: Predision
$ 238.00
- Operating Temperature: -40°C to 85°C
- Power Supply: 9 - 40 VDC
- 600W per wire Surge Protection (RS-485/422)
- Operating Current: 110 mA @ 9 V Max
See our Shipping Policy for delivery regions and fees
Backordered
More stock available: May 29, 2026 (UTC-4)
The HESIO-T-011 is a multi-channel digital voltmeter featuring four independent voltage input channels. Supporting various communication interfaces, it can be easily integrated with computers to establish remote voltage acquisition systems for laboratories and product quality inspection. It is also highly effective for industrial process monitoring.
The HESIO-T-011 is ideally suited for power supply aging tests, multi-channel voltage signal monitoring, industrial automation measurement, laboratory automation control, and multi-channel conversion measurements.
| Power Supply | 9 - 40 VDC |
| Operating Current | 110 mA @ 9V Max |
| Sampling Frequency | 16.6 HZ |
| Resolution | 24-bit |
| Acquisition Accuracy | 0.5% |
| Input Channel | 4-channel Differential Input |
| Input Impedance | 10M |
| Measuring Range | Voltage 0-200V |
| Communication Interface | RS-485/422 |
| Communication Protocol | Modbus-RTU |
| Lightning and Surge Protection | Power: Differential Mode 1 kV RS-485/422: 600W Surge Protection |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5 - 95% RH, Non-condensing |
4-channel Digital Voltmeter with independent voltage input channels, 4AI: (0-36 VDC) * 4, Power Supply: 9 - 40 VDC, A/D Accuracy: 24-bit, 600W per wire Surge Protection (RS-485/422), Operating Temperature: -40°C to 85°C.
32-channel High-speed Digital Voltmeter, 32AI: (0-36 VDC) * 32, Power Supply: 9 - 48 VDC, A/D Accuracy: 14-bit, Baud Rate: 2,400 - 19,200 bps, Operating Temperature: -20°C to 85°C.
4-channel Analog Output Module, 4AO: -10V - +10V, 0 - 20mA, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, Operating Temperature: -40°C to 85°C.
8-channel Analog Input Module, 8AI: (±10V/±5V/±20mA /±1V/±500mV/±150mV) *8, Power Supply: 12 - 30 VDC, Baud Rate: 1,200 - 115,200 bps, 600W per wire Surge Protection (RS-485), Operating Temperature: -25°C to 75°C.
8-channel AI/DI Acquisition Module, 8AI / 8DI, Baud Rate: 1,200 - 115,200 bps, Measurement Range: Differential Input ±10V, Single-ended Input 0 - 10V, 0 - 20 mA, 1 kV Differential Mode (Power Supply), 600W per wire (RS-485), Operating Temperature: -40℃ to 85℃.
