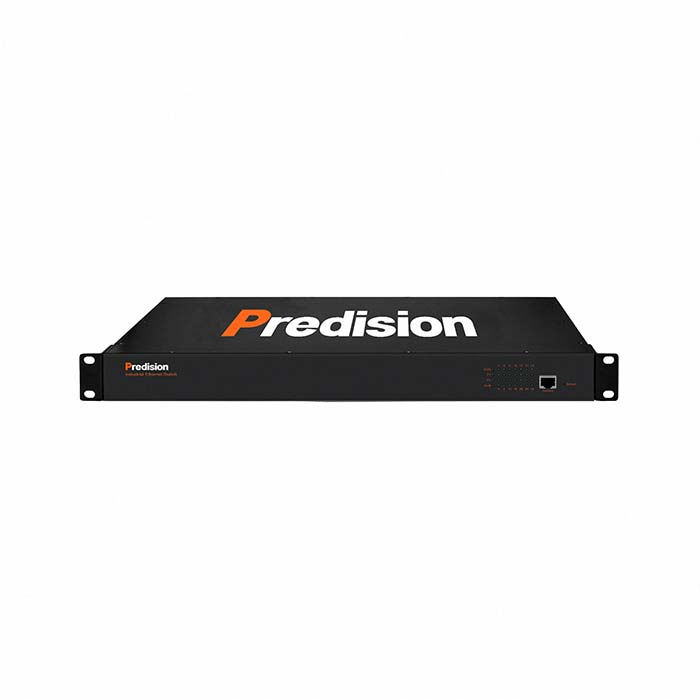

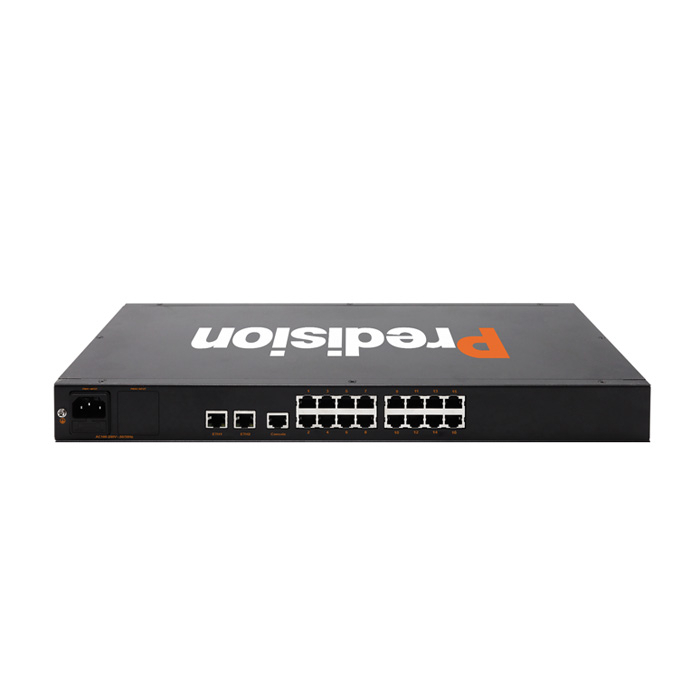

Predision MX6028GLA-T-4XGSFP-8G 28-port (4x10Gbps/24xGbps) Layer 3 Industrial Managed Ethernet Switch

Manufacturer Part Number: MX6028GLA-T-4XGSFP-8G

Brand: Predision

$ 4571.00

Supports 4 x 10Gbps SFP+ Port, 8 x Gigabit Combo Port and 16 x Gigabit Copper Port
Supports PIN-SM and IGMP Snooping
IEEE 802.1Q VLAN for Easy Network Planning
Supports QoS with 8 Queue Mapping to Increase Network Stability
Supports DuraRing™, ERPS and STP/RSTP/MSTP Networking Redundancy
Supports SNMPv1/v2v3 to Ensure Network Security Management
Supports Link Aggregation (Static Convergence/LACP) to Optimize Network Bandwidth
Supports Access Control List (ACL) to Enhance Flexibility and Network Management Security
Supports Port Mirroring Function for Online Debugging
Supports Port Speed limit\Broadcast Storm Suppression\Multicast Storm Suppression\Unknown Unicast Storm Suppression
Supports SFP DDM to Conduct Fiber Optic Diagnosis and Fault Detection
Supports Layer 3 Switching Function (Static route/RIP/OSPF/VRRP)
Supports Power, Port Abnormal Status Relay Output Alarm Function
IP40 Protection, Fan-less, Industrial Grade, -40 - 75°C Working Temperature Supported

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: May 29, 2026 (UTC-4)

MX6028GLA-T-4XGSFP-8G-16SFP Series is a high-performance, cost-effective Layer 3 managed 10Gbps industrial Ethernet switch. The series provides 4 10Gbps SFP ports, 8 combo ports and 16 Gigabit copper ports, which not only increase bandwidth and improve network data communication, but also are ideal for large-scale industrial network applications. The series supports a variety of Layer 2 software features (port mirroring, VLAN, port aggregation, IGMP Snooping, QoS, STP/RSTP/MSTP, etc.) and IPv4/IPv6 Layer 3 routing protocols (static routing/RIP/OSPF/VRRP), providing users with a complete solution to build large scale industrial networks. It provides more options to build large local area networks for industrial applications such as plant automation, intelligent transportation, video surveillance, etc.

Ethernet Interface

1000/10000BaseSFP+ Ports	4 (Auto Negotiation Speed)
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)	8 (Full/Half Duplex Mode, Auto MDI/MDI-X Connection, Auto Negotiation Speed)
10/100/1000BaseT(X) Ports (RJ45 Connector)	16 (Full/Half Duplex Mode, Auto MDI/MDI-X Connection, Auto Negotiation Speed)
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3ae
Console Port	Serial Port Debugging (RJ45 Connector)

Ethernet Software Features

Industrial Protocols	ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP-Snooping, SNMPv1/v2c/v3, DHCP Server, NTP, SSH, IPV6, LACP, VLAN, ERPS, QINQ, RMON, UDLD
Layer 3 Technology	Static Route, RIP V1/V2, OSPF, VRRP, PIN-SM, Router Redundancy
Flow Control	IEEE802.3x Flow Control, Backpressure Flow Control

LED Interface

LED Indicators

Power Indicator, Network Indicator, Alarm Indicator, Operation Indicator

Power Parameters

Input Voltage	110/220 VAC(88 ~ 264 VAC)/50 ~ 60 Hz Redundant Power Inputs
Reverse Polarity Protection	Supported
Overload Current Protection	Supported

Switching Performance

1000M Ports	1,488,095 pps
10 Gigabit Ports	14,881,000 pps
Transmission Mode	Store and Forward
MAC Table Size	16K
Packet Buffer Size	12Mb
Backplane Bandwidth	128G
Max. frame Length	12KB
Host Unicast Routing	6K (IPv4), 2K (IPv6)
Segment Unicast Routing	512 (IPv4), 128 (IPv6)

Physical Characteristics

IP Rating	IP40
Dimension	440 x 44 x 295 mm
Weight	3500g
Installation	Rack Mounted

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	0% ~ 95% (No Condensation)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32

Warranty

Warranty Period

5 Years

MX6028GLA-T-4XGSFP-8G-16SFP

Rack-mount Layer 3 Managed, 4 x 10Gbps Fiber Port, SFP Interface, 8 x 1000Mbps Combo Port, 16 x 1000Mbps Fiber Port, SFP Interface, Industrial Temperature -40 - 75°C, Power Supply 110/220 VAC (88 ~ 264 VAC)/50 ~ 60 Hz

MX6028GLA-T-4XGSFP-8G

Rack-mount Layer 3 Managed, 4 x 10Gbps Fiber Port, SFP Interface, 8 x 1000Mbps Combo Port, 16 x 1000Mbps Copper Port, Industrial Temperature -40 - 75°C, Power Supply 110/220 VAC (88 ~ 264 VAC)/50 ~ 60 Hz

Manuals ： Predision_Managed_Ethernet_Switch_T-Series_User_Manual_EN.pdf

Datasheet ： Predision_Switch_MX6028GLA-T-4XGSFP-8G_DS_EN.pdf

LineCard： Predision_Line_Card_Industrial_Ethernet.pdf
