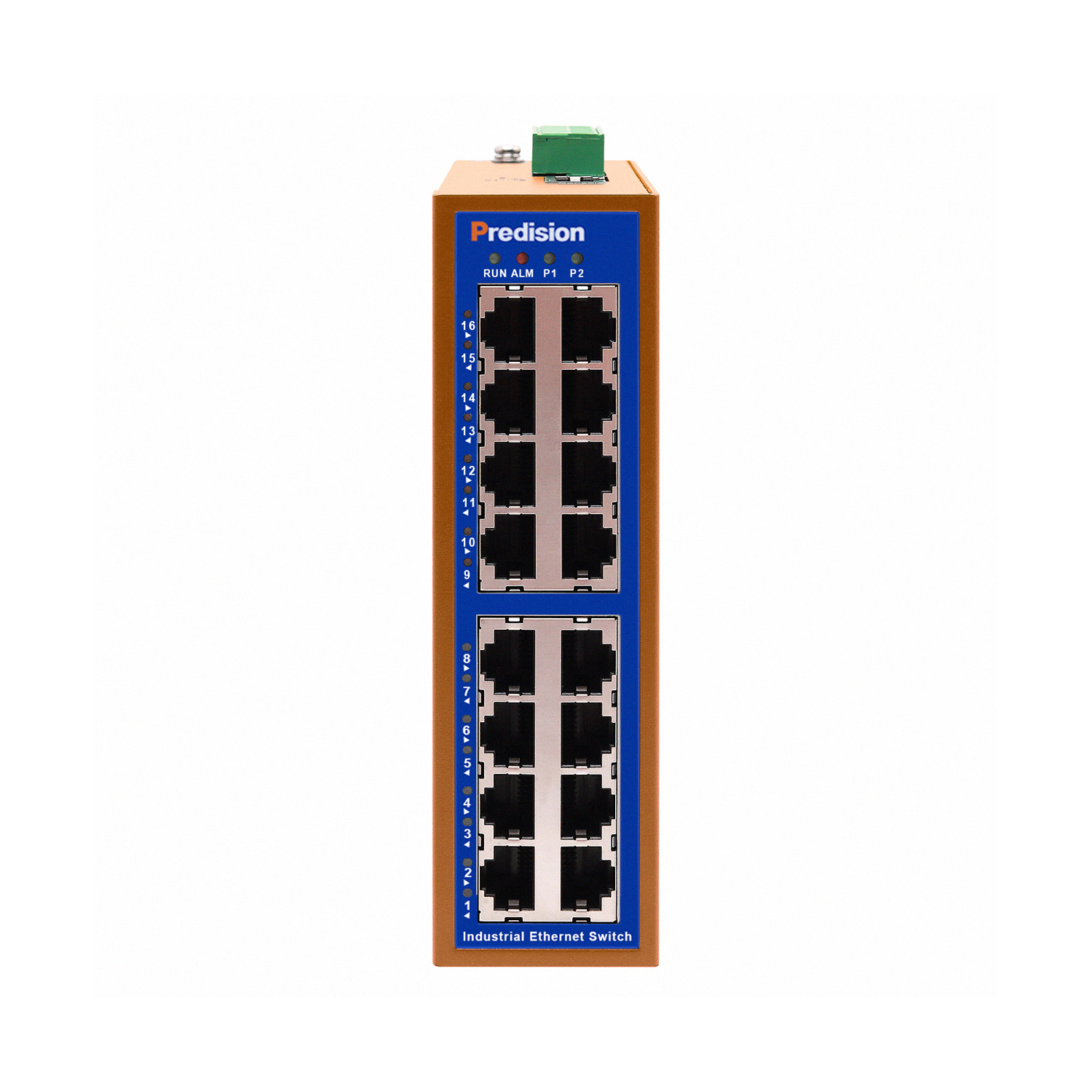

Predision HES16GMA-T 16-port Gigabit Full Layer 2 Industrial Managed Ethernet Switch

Manufacturer Part Number: HES16GMA-T

Brand: Predision

$ 1523.00

16 × 1000 Mbps RJ45 Copper Ports
Working Temperature -40°C to 75°C
Supports IGMP Snooping, IEEE 802.1Q VLAN, QoS, STP/RSTP, SNMPv1/v2/v3 and Other Protocols to ensure Safe and Stable Network
Supports Port Isolation and ACL Function
Supports Trap and RMON
Supports Port Speed Limit and Broadcast Storm Suppression
Supports LLDP, Link Flap, UDLD, DDM

See our Shipping Policy for delivery regions and fees

Backordered

More stock available: July 5, 2026 (UTC-4)

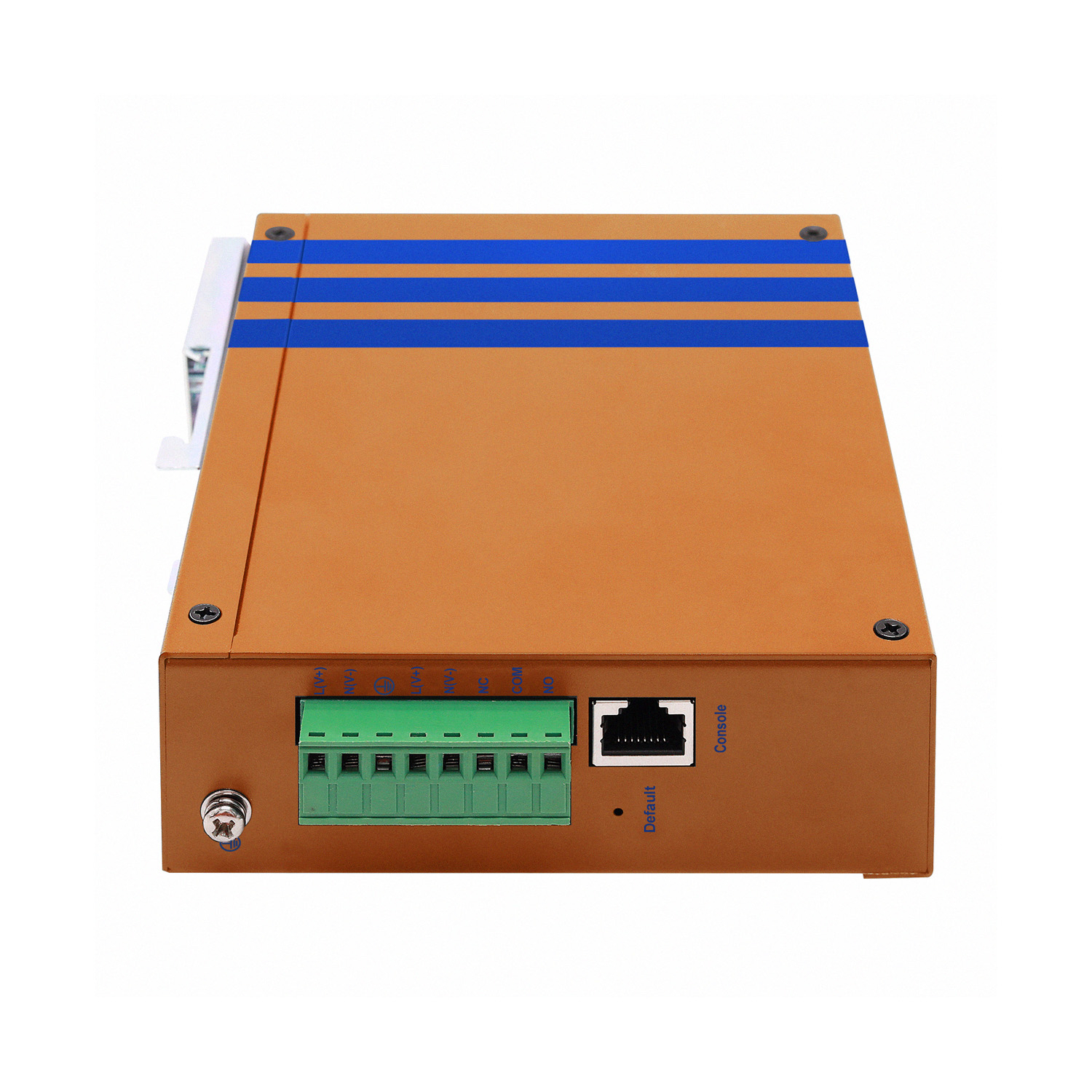

HES16GMA-T/HES16GMB-T series is industrial managed industrial Ethernet switches. It supports 16 10/100Mbps copper ports. This series supports one console port which provides CL management. It also supports Ethernet Layer 2 protocols required for industrial sites to ensure the stability of the communication network. This series switches adopts a low-power, fanless design to ensure no noise interference, while -40 - 75℃ operating temperature and good EMC electromagnetic compatibility performance are ensuring stable operation in harsh industrial environments.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	16 Full/Half Duplex Mode; Auto MDI/MDI-X Adaptive; Auto Negotiation Speed
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p,IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad

Ethernet Software Features

Industrial Protocols	ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3,DHCP Server, UDLD, NTP, RMON, Syslog
Flow Control	IEEE802.3x Flow Control, Backpressure Flow Control

LED Interface

LED Indicators

Power Indicator, RJ45 Indicators, Operating Indicator

Power Parameters

Input Voltage	12/24/48 VDC (10.8 ~ 52.8 VDC)
Power Consumption	Max. 375 mA @ 24 V
Reverse Polarity Protection	Supported
Overload Current Protection	Supported

Switching Performance

Forwarding Rate	1,488,095 pps
Transmission Mode	Store and Forward
MAC Table Size	8 K
Packet Buffer Size	4.1 Mb
Backplane Bandwidth	32 G
Max. frame Length	10 Kb

Physical Characteristics

IP Rating	IP40
Dimension (W x D x H)	42 x 120 x 150 mm
Weight	1200 g
Installation	DIN-Rail Mounted

Environmental Limits

Operating Temperature	-40℃ to 75℃
Storage Temperature	-40℃ to 85℃
Relative Humidity	0% to 95% (No Condensation)

Standards and Certifications

EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (Radio Frequency Transmission) Level 3, EN61000-4-8 (Power Frequency Magnetic Field) Level 3
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
