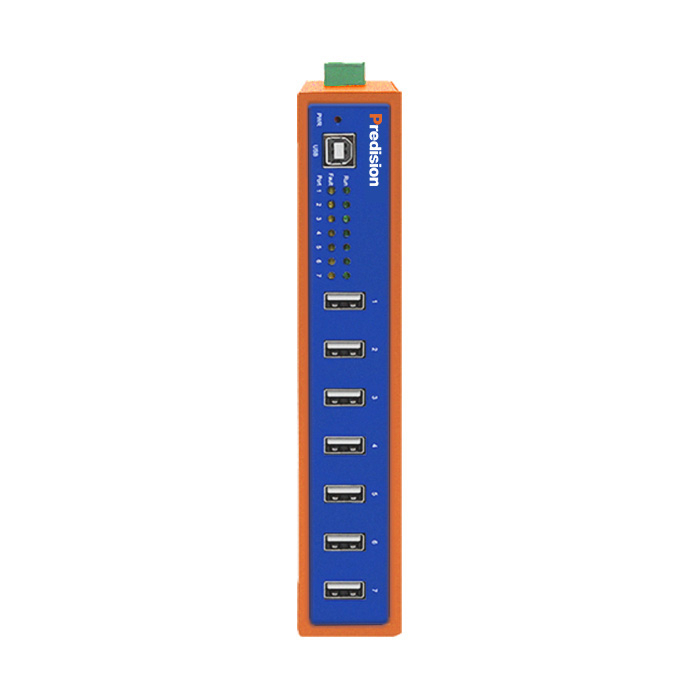

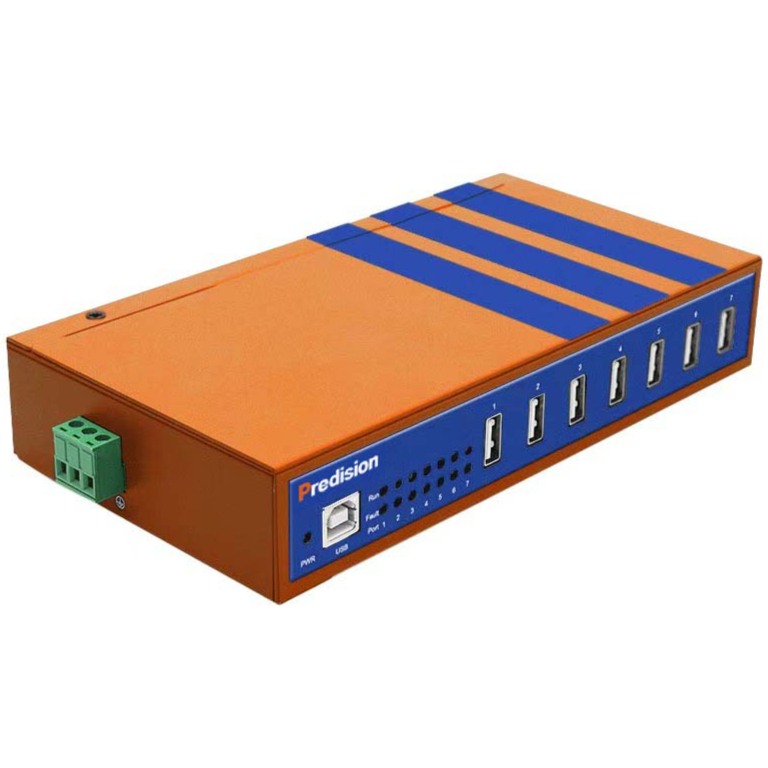

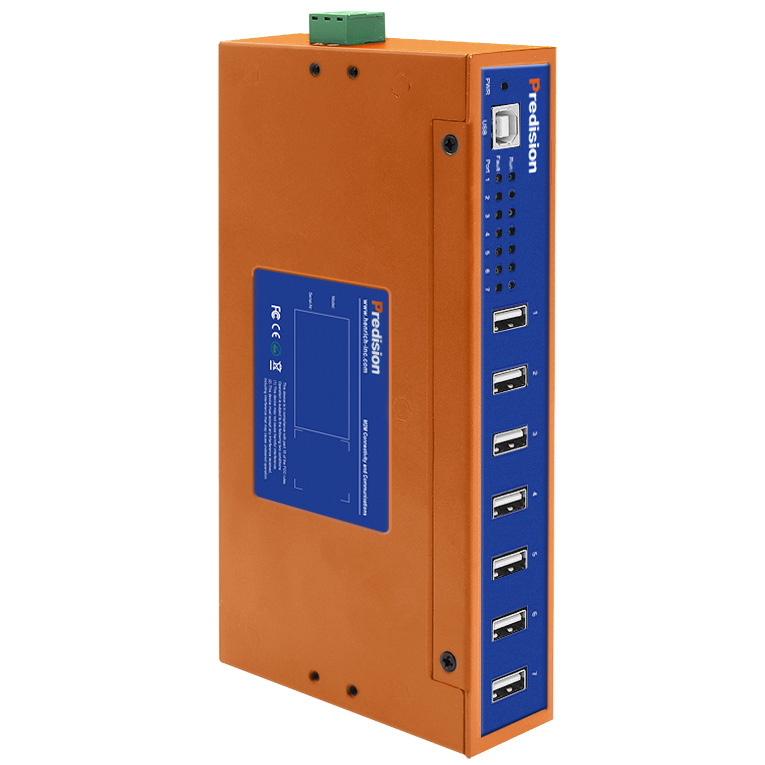

Predision HEUH-T-002 7-port Industrial USB Hub
Manufacturer Part Number: HEUH-T-002
Brand: Predision
$ 248.00
- Operating Temperature: -40°C to 85°C
- USB Transfer Rate: Up to 480 Mbps (per port)
- USB Static Protection: Contact ± 8 kV, Air ± 15 kV
See our Shipping Policy for delivery regions and fees
1 Available
The HEUH-T-002 is an industrial-grade 7-port USB 2.0 hub designed to expand a single USB port into seven. It supports high-speed USB 2.0 data transmission rates of up to 480 Mbps per port and is fully compliant with USB Plug-and-Play specifications. Each port delivers 500 mA of output power and features integrated electrostatic discharge (ESD) protection to ensure long-term device reliability.
| Standard | USB 1.0, 1.1, 2.0 |
| USB Signal | VCC, DATA+, DATA-, GND |
| Signaling Rate | 1.5 / 12 / 480 Mbps |
| Transmission Distance | 5m for USB |
| USB Static Protection | Contact ±8 kV; Air ±15 kV |
| Interface Connector | Power Input: 3-pin 5.08 mm terminal block; USB Input: USB Type-B; USB Output: USB Type-A |
| Operating Voltage and Current | DC 12-48V; 500 mA |
| Operating Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% |
| OS Support | Win 2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux |
| MTBF | ≥100,000 hours |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN61000-4-2 (ESD) Contact 8 kV, Air 15 kV EN61000-4-3 (RS) 3 V/m EN61000-4-4 (EFT) Power 2 kV, Signal 1 kV EN61000-4-5 (Surge) Power 2 kV, Signal 2 kV EN61000-4-6 (CS) 150 kHz to 80 MHz: 10 V/m IEC61000-4-8 (PFMF) |
4-port USB Hub, Metal Housing, Signaling Rate: 1.5 / 12 / 480 Mbps, Operating Voltage: 12 - 48 VDC, Transmission Distance: 5 m for USB, Operating Temperature: -40℃ to 85℃.
7-port USB Hub, Metal Housing, Signaling Rate: 1.5 / 12 / 480 Mbps, Operating Voltage: 12 - 48 VDC, Transmission Distance: 5 m for USB, Operating Temperature: -40℃ to 85℃.
