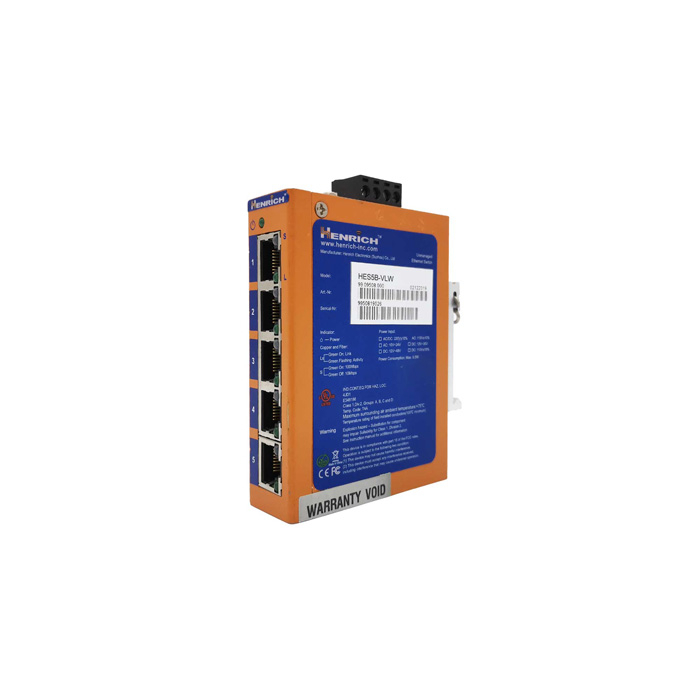

Henrich HES5B-VLW 5-port Din-rail Unmanaged Ethernet Switch

Manufacturer Part Number: HES5B-VLW

Brand: Henrich

$ 129.00

5 100 Mbps Copper Ports
UL/cUL Class 1/Division 2 Groups A,B,C, and D
Designed to Meet Level 3 (Heavy) Industrial Environments
EN61000-6-2 Certifications
Shock, Vibration, Free Fall Tested
IP30 Rated DlN Rail Case

See our Shipping Policy for delivery regions and fees

169 Available

The HES5B series of industrial Ethernet switches are entry-level industrial 5-port Ethernet switches that support EEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDl/MDlX auto-sensing RJ45 ports. The HES5B switches are rated to operate at temperatures ranging from -10 to 60°C, or with a wide operating temperature range from -40 to +75°C. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play HES5B switches easy to use and reliable.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 Connector)	5 Full/Half Duplex Mode; MDI/MDI-X Auto-adaptive; Auto Negotiation Speed
Standards	IEEE802.3; IEEE802.3u; IEEE802.3x

Switch Properties

Processing Type	Store and Forward, Non-blocking Flow Control
MAC Table Size	2k

Power Parameters

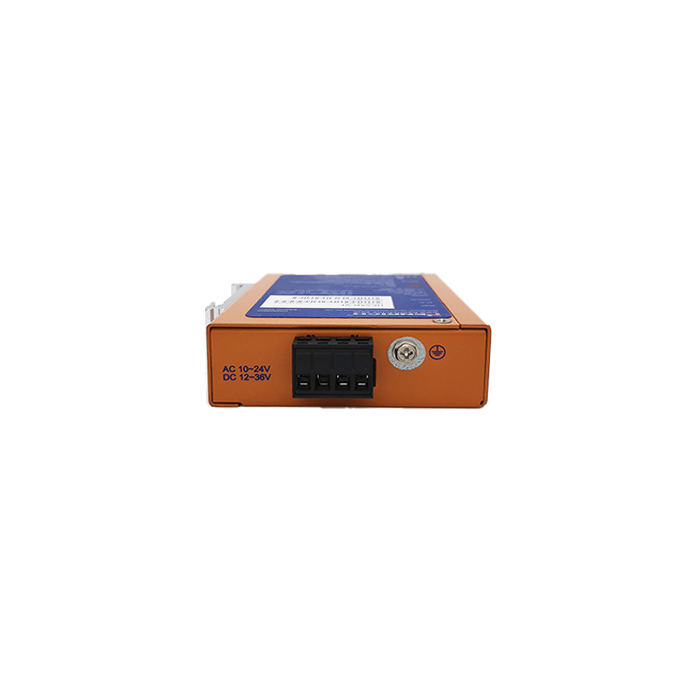

Input Voltage	12 ~ 36 VDC and 10 ~ 24 VAC
Power Consumption	< 4W
Power Connector Type	Removable Terminal Block
Reverse Polarity Protection	Supported

Physical Characteristics

Case	Slim Metal Case, IP30 Rating

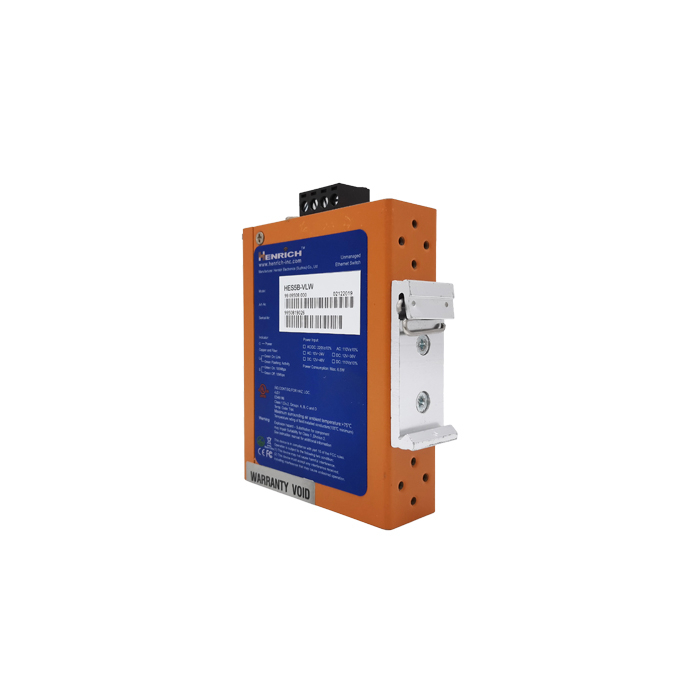

Installation	Din-rail Mounting or Wall Mounting
Dimensions (Width × Height × Depth)	0.98" × 3.94" × 2.95" （25mm × 100mm × 75mm）

Environmental Limits

Working Temperature	-40℃ ~ 75℃
Storage Temperature	-40℃ ~ 85℃
Relative Humidity	5% to 90% (No Condensation)

Industrial Standard

Safety	cUL508
EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (CS) Level 3, EN61000-6-2
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
